Franklin Electric 2824055015 Deluxe Control Box – ½ HP, 230V, 60 Hz

The Franklin Electric Deluxe Control Box (CRC Model) offers premium protection and start performance for ½ HP submersible motors. Designed for demanding well systems, it features replaceable components and a rugged enclosure for easy field service.

Features

• For ½ HP, 230V, single-phase 3-wire motors
• Heavy-duty start capacitor and relay for reliable operation
• High-impact weather-resistant housing
• Easy-access design for quick maintenance

Applications

• Residential and light commercial well systems
• Pressure and irrigation pumps

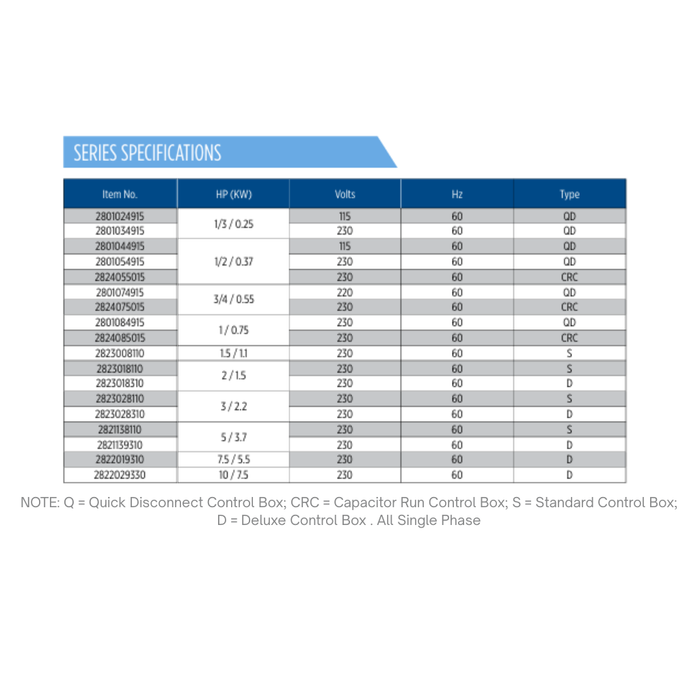

Volts 230 VAC
Control Box Max Amps 4.3 A
Rating 1/2 hp / .37 kW
Control Box Nominal Amps 3.2 A
Hz 60 Hz
Input Phase Single-Phase
Input Voltage 230 VAC
Control Box Type CRC
Enclosure Rating Type 3R
Minimum Operating Temperature 14 °F
Maximum Operating Temperature 122 °F
Storage Temperature -13° to 144 °F (-25° to 65 °C)

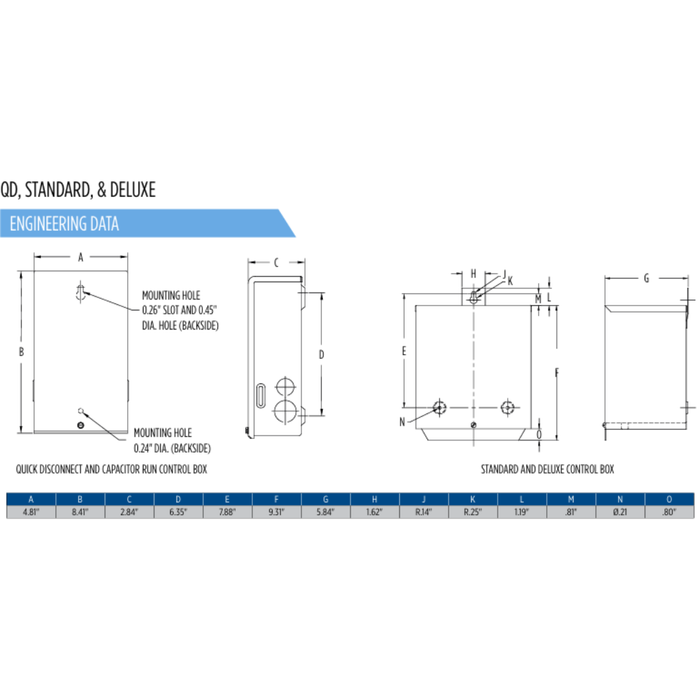

Bottom Knockout Two 0.88" knockouts and one 1.31" knockout

Product Length 4.81 "
Product Width 2.84 "
Product Height 8.41 "
Product Weight 4.75 lb
