Franklin Electric 2823008110 Control Box | 1.5 HP 230V Well Pump Controller

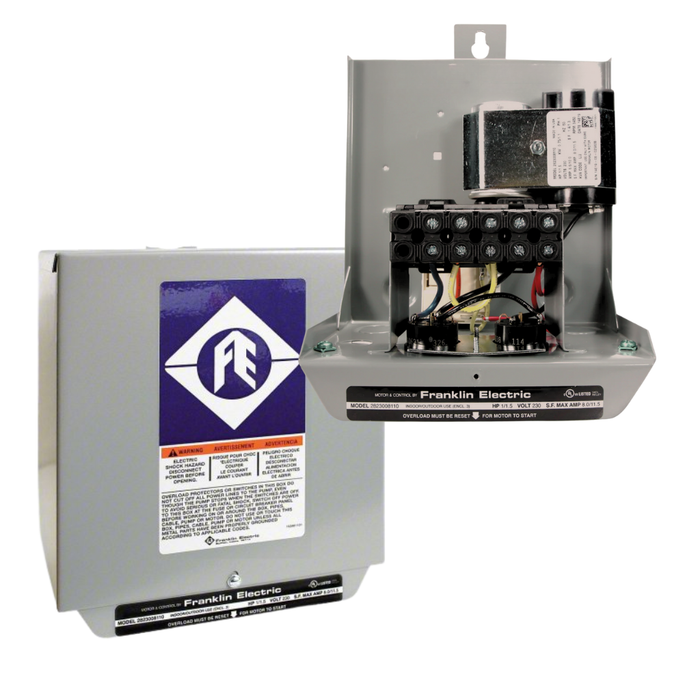

Franklin Electric 2823008110 Standard Control Box – 1.5 HP, 230V, 60 Hz

The Franklin Electric Standard Control Box is engineered to start and protect submersible motors while delivering long-term reliability. Compact, corrosion-resistant, and easy to install, it’s ideal for residential and irrigation applications.

Features & Benefits

• For 1.5 HP, 230V, single-phase 3-wire submersible motors
• Durable metal enclosure with clearly labeled terminals
• Includes start capacitor, relay, and overload protection
• Factory-tested to ensure consistent motor performance

Applications

• Deep-well water systems
• Home and small commercial installations
• Irrigation and sprinkler setups

Volts 230 VAC
Control Box Max Amps 11.5 A
Rating 1.0-1.5 hp / .75-1.1 kW
Control Box Nominal Amps 8 A
Hz 60 Hz
Input Phase Single-Phase
Input Voltage 230 VAC
Control Box Type Standard
Enclosure Rating Type 3R
Minimum Operating Temperature 14 °F
Maximum Operating Temperature 122 °F
Storage Temperature -13° to 144 °F (-25° to 65 °C)

Bottom Knockout Two 1.31" diameter holes for 1" conduit connection; One 1.75" knockout for 1.25" conduit; One 0.88" knockout for 0.5" conduit connection

Product Length 8.03 "
Product Width 5.84 "
Product Height 10.5 "
Product Weight 6.75 lb
