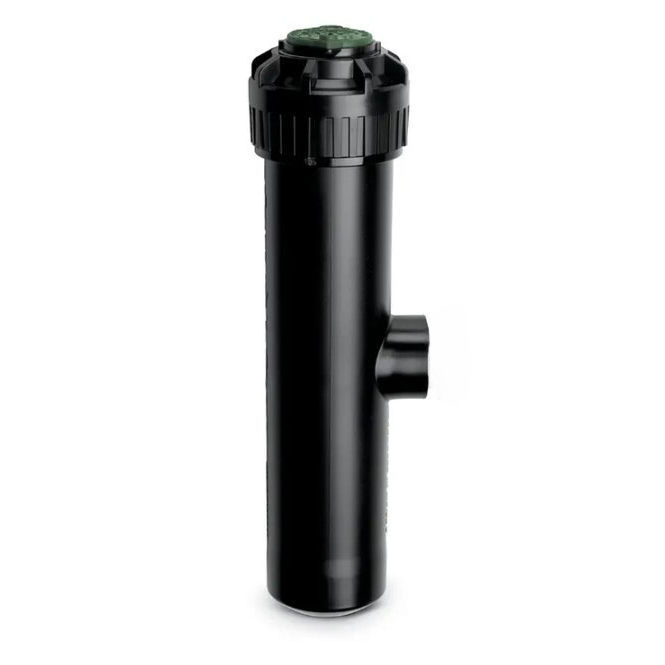

Rain Bird 5006+PCSAMR Part-Circle Pattern 6" Pop-up Rotor with PRS Pressure Regulation and SAM Check Valve

Rain Bird 5006+PCSAMR 6 Inch Pop-up Rotor with PRS and Check Valve

Enjoy total control with the Rain Bird 5006+PCSAMR, the premium 6-inch pop-up rotor for medium to large-size lawns. This all-in-one rotor combines Rain Bird's most advanced water-saving features into a single, heavy-duty body. The 6-inch pop-up height clears taller grasses, while the "Plus" (+) model "green top" allows you to stop the flow of water to a single head for easy maintenance without shutting down your entire system.

This rotor is fully loaded with technology, featuring an in-stem Pressure Regulator (PRS) that maintains a constant 45 PSI to eliminate wasteful misting and fogging. It also includes a Seal-A-Matic (SAM) check valve, which prevents puddling and erosion by holding back up to 7 feet of elevation change. Powered by industry-leading Rain Curtain Nozzle Technology, the 5006+PCSAMR delivers large, wind-resistant droplets and gentle close-in watering for uniform coverage and a healthier, greener lawn.

Rain Bird 5006+PCSAMR Features:

• 5006 features and side and bottom inlet option
• 6 in. 5000 Series Full-Circle Pattern Pop-up Rotor with PRS Pressure Regulation and SAM Check Valve
• Faster maintenance with a new self-cleaning arc adjustment screw
• Heavy-duty cover assembly for extra durability
• Rain Curtain™ Nozzles
• Slip clutch mechanism for quick adjustment on installation
• Heavy-duty retract spring assures positive pop-down
• Top-adjust arc adjustment requiring only a flat-blade screwdriver
• 40 - 360° arc rotation and reversing full circle rotation in one
• Radius adjustment screw allows up to 25% radius reduction without changing nozzles
• Pressure-activated multi-function wiper seal protects internals from debris and assures positive pop-up and retraction
• Reinforced flow path for additional side load strength
• Additional O-rings and seals for extra protection in "gritty" water
• Pressure Regulating Stem (PRS) which regulates pressure at the head, assuring optimum performance
• Seal-A-Matic (SAM) check valve holds up to 7 feet (2.1m) of elevation change to prevent puddling and erosion caused by low head drainage

Model 5006+PCSR
Rotor Series 5000 / 5000 Plus
Coverage Radius 25-50 ft
Inlet 3/4 in
Features Gear Drive, PRS Pressure Regulating, SAM Seal-A-Matic Check Valve, Rain Curtain Nozzles
Pop-Up Height 6 in
Operating Range
Precipitation rate: 0.20 to 1.01 inches per hour (5 to 26 mm/h)
Radius: 25 to 50 feet (7,6 to 15,2 m)
Radius may be reduced up to 25% with radius reduction screw
Pressure: 25-65 psi (1,7 to 4,5 bar)
Flow Rate: 0.73 to 9.63 gpm (4,2 to 36,6 l/m)
Specifications
3/4" (20/27) NPT female bottom threaded inlet

Coverage Arc 40° - 360° Reversing Full and Part-Circle

Pop-Up Height 6 in
