Product Overview

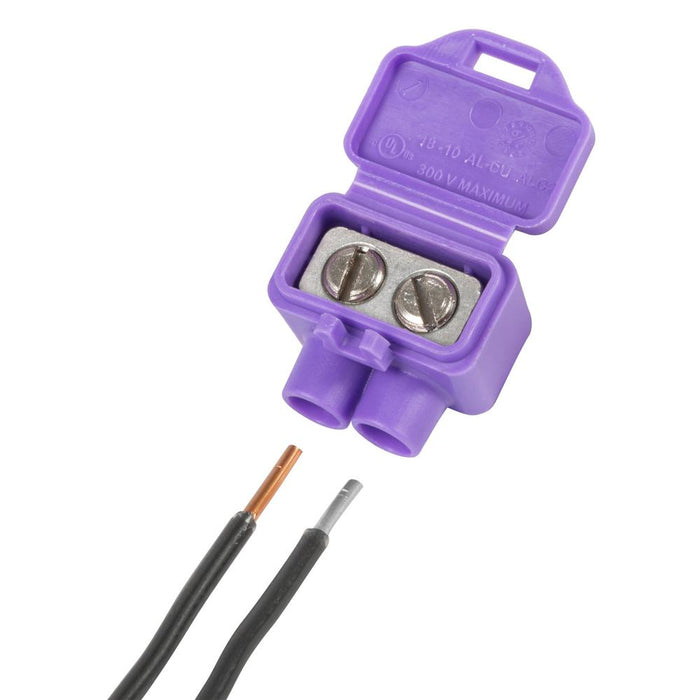

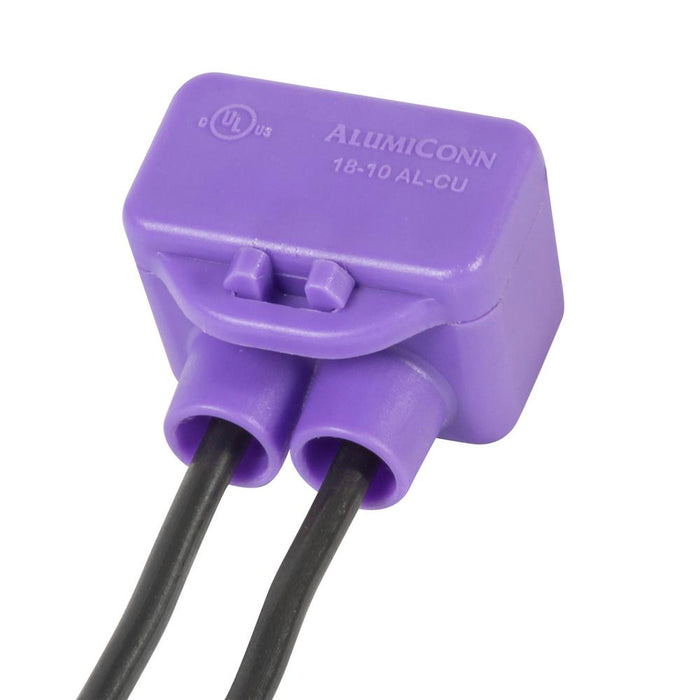

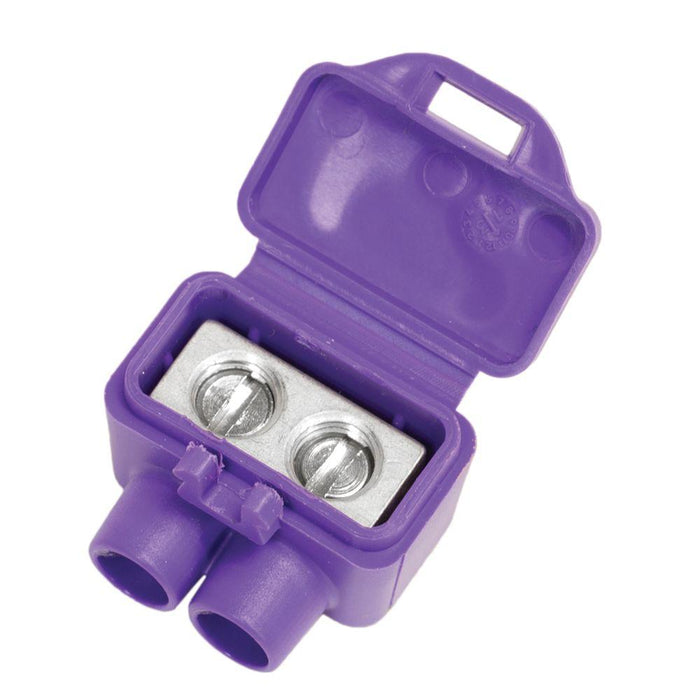

King Innovation's AlumiConn Aluminum to Copper Lug is approved by the Consumer Product Safety Commission (CPSC), UL and numerous insurance companies as a safe method for aluminum wiring repair. AlumiConn is a lug style connector with two separate ports to eliminate intermixing of conductors. It coats aluminum wires with a thin layer of silicone sealant to provide resistance from oxidation and uses set screws to break up surface oxides and provide a secure mechanical connection. Avoid a complete re-wire by using AlumiConn, the most cost-effective aluminum wiring repair solution available.

  • Approved by the consumer product safety committee (CPSC), UL listed, approved by insurance companies
  • Most cost-effective solution for repairing aluminum wiring systems
  • 2 ports allow conductors to remain separate, permitting the lug to run at a lower temperature and provide longer term reliability
  • Secure mechanical connection
  • Contains a layer of corrosion inhibitor that provides resistance from oxidation
  • Max Voltage 300V
  • Aluminum wire range: #12 - #10 solid AWG
  • Copper wire range: #18 - #10 solid and stranded AWG
  • UL486C Listed to meet US and Canadian standards
  • Temperature rating of insulating material: 105 degrees Celsius
  • Suitable for aluminum to aluminum, aluminum to copper and copper to copper wire splices
  • Safe method for aluminum wiring repair
  • 2 separate ports to eliminate intermixing of conductors
  • Provides resistance from oxidation


Connector Depth (in.)
Connector Height (in.)
Connector Width (in.)


Color Family Purple
Electrical Product Type Wire Connector
Maximum Wire Capacity #10 (solid AL, solid & stranded CU)
Minimum Wire Capacity #12 (solid AL), #18 (solid & stranded CU)

Warranty / Certifications

Certifications and Listings
UL Listed
Manufacturer Warranty
King Innovation products are guaranteed against faulty materials or workmanship for a period of one year from date of purchase. Contact factory for full warranty information.
