Liberty 2472LSG202-48 2400 Series Grinder Package — 2 HP, 208/230V

Liberty Pumps 2472LSG202-48 Pre-Assembled Simplex Grinder Package

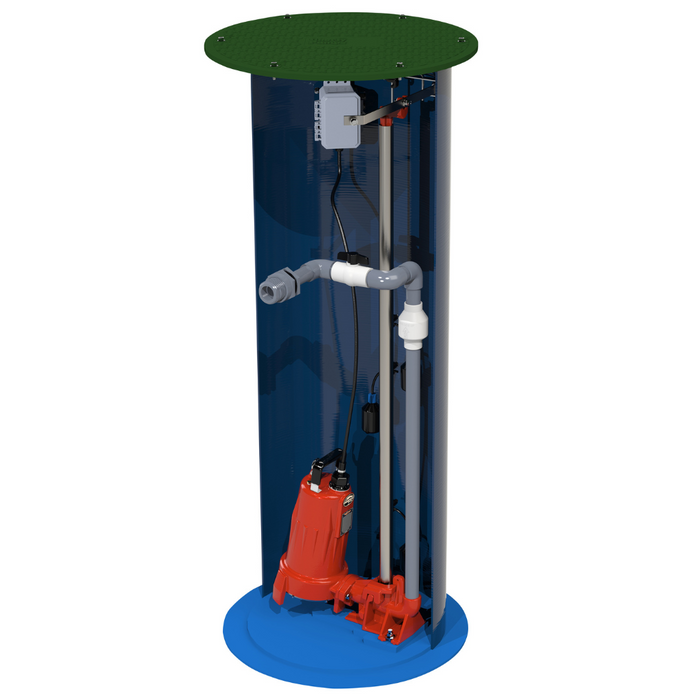

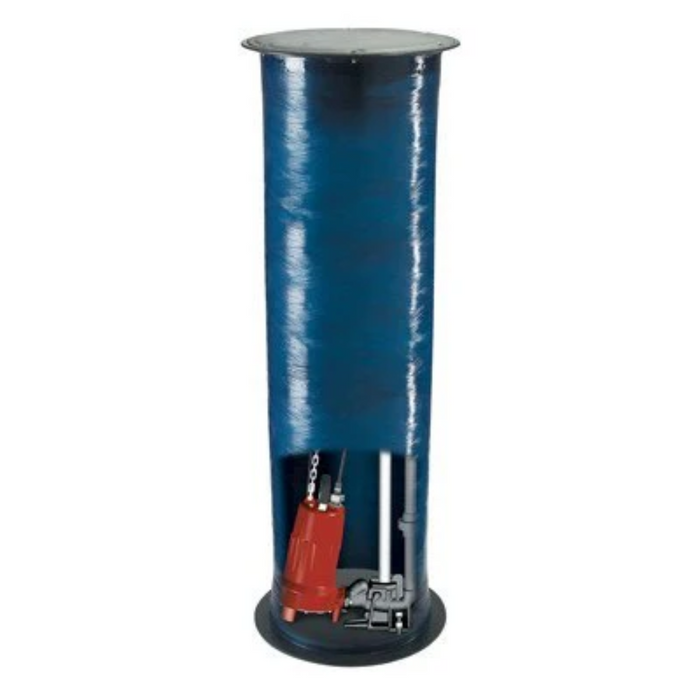

The Liberty 2472LSG202-48 is a high-performance simplex grinder package in the 2400 Series, integrating a powerful 2 HP Omnivore® grinder pump with a 24" × 72 fiberglass basin, factory-installed internal plumbing, floats, and guide rail system. This model is engineered for demanding sewage and wastewater applications that require strong grinding capability and simplified installation.

Key Features & Benefits

• Omnivore® 2 HP Grinder Pump — capable of shredding tough solids and fibers for reliable service.
• Factory-Assembled Package — includes internal piping, floats, and control wiring, saving field labor.
• 24" × 72" Fiberglass Basin — offers deep vertical capacity for demanding installations.
• 1¼"  Schedule 80 Discharge — robust piping with check and ball valves pre-installed.
• GR20 Guide Rail System — allows pump removal without disturbing discharge plumbing.
• Premounted Floats & Alarm-Ready Controls — float switches set at factory levels; control panel wiring ready for alarm integration.
• Heavy-Duty Cover & Hardware — includes structural foam or steel cover, anti-flotation collar, and stainless supports.
• Discharge Depth — 48" from top of basin

Specifications

What’s Included

• 24" × 72" fiberglass basin with anti-flotation collar
• Omnivore® 2 HP grinder pump
• GR20 guide rail setup with lift-out hardware
• Internal factory-installed plumbing, check/ball valves
• Factory-mounted floats with control wiring to junction box
• Structural cover and stainless fasteners

Applications

• Residential or light commercial sewage applications needing grinder capability
• Installations with deep plumbing runs or high head requirements
• Sites that benefit from prewired, factory-installed float and plumbing to minimize labor
• Deep basin setups or environments requiring a 48" discharge height

Always follow Liberty’s published manuals and local code requirements when installing: check valve, venting, wiring, and proper cover sealing are critical to system longevity and safety.

Voltage / Phase 208–230V, Single Phase
Discharge 1¼ NPT, Schedule 80 PVC
Basin Dimensions 24" diameter × 72" height
Discharge Depth 48" from top of basin (model identifier “-48”)
System Weight (approx) ~240 lbs
Basin Capacity & Cycle Volume ~94 gallons total, ~35 gallons per cycle

Basin Dimensions 24" diameter × 72" height
Does not Ship assembled. Assembly required.
