King Innovation - 98305 - Yellow, 5pc. Bag

Spec Sheet

FEATURES & BENEFITS:

• Self Stripping- No Need to Strip Wires!

• Waterproof and corrosion proof

• No need to strip conductor

• Install service line without cutting the main line

• Installs with hand tools

• One piece for easy installation

• Installs in one minute or less

• Designed for use with solid/stranded copper and steel core tracer wire with .030” and .045” thick insulation
• Wire range from #14-12 Solid/Stranded Copper
  #14-12 Steel Core Tracer Wire/CCS

• High impact housing with user friendly design to prevent cuts or handling discomfort

• Use with low voltage tracer lines under 50 volts

• Pre-filled with silicone

• Approved for direct bury

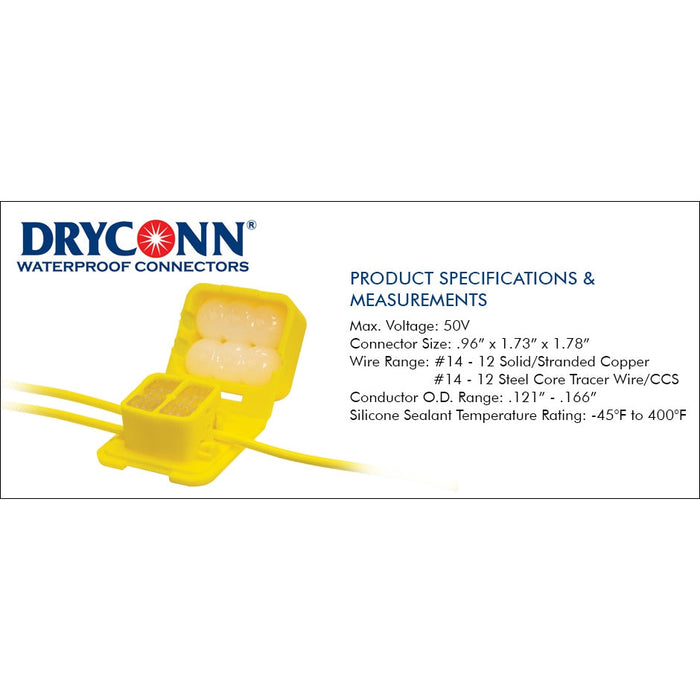

PRODUCT SPECIFICATIONS & MEASUREMENTS:

• Max. Voltage: 50V

• Connector Size: .96” x 1.73” x 1.78”

• Wire Range: #14 - 12 Solid/Stranded Copper

• #14 - 12 Steel Core Tracer Wire/CCS

• Conductor O.D. Range: .121” - .166”

• Silicone Sealant Temperature Rating: -45°F to 400°F

Max. Voltage: 50V
Connector Size: .96” x 1.73” x 1.78”
Wire Range: #14 - 12 Solid/Stranded Copper
#14 - 12 Steel Core Tracer Wire/CCS
Conductor O.D. Range: .121” - .166”
Silicone Sealant Temperature Rating: -45°F to 400°F
