Suitable for
- Commercial heating
- Commercial hot water recirculation
- Domestic hot water recirculation
- Domestic heating
Grundfos UP B circulator pumps have bronze pump housing for drinking water applications, while Grundfos UP N have stainless-steel pump housing. Both variants are recommended for underfloor heating systems, as the pumped liquid may often become aerated, causing corrosion in a cast-iron pump housing.
Choosing a stainless steel circulator ensures that you will always have the right pump - whether it is an open or closed system. Grundfos offers three stainless steel models, including two that feature our 3-speed SuperBrute technology.
Features
• Perfect for hot water recirculation applications
• Stainless steel – Protects against corrosive fluids
• Available in standard union or two-bolt flange
• 3-speed SuperBrute technology available
• Timer and line-cord options available
• Integrated, removable check valve
• Quick connect terminals – for easy installation
• Highest starting torque in its class
• Industry leading three-year warranty
Replacement for the Grundfos UP15-18SU Circulator Pump, 1/25 HP, 115V - 59896127

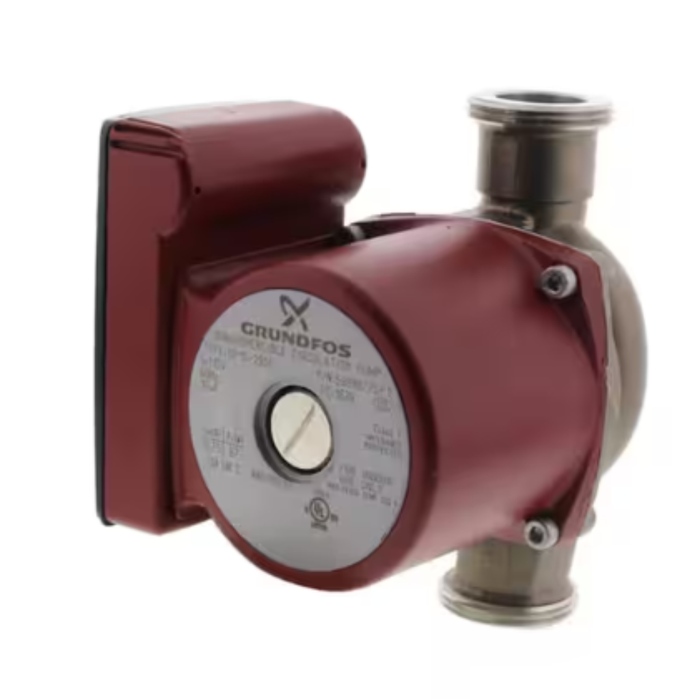

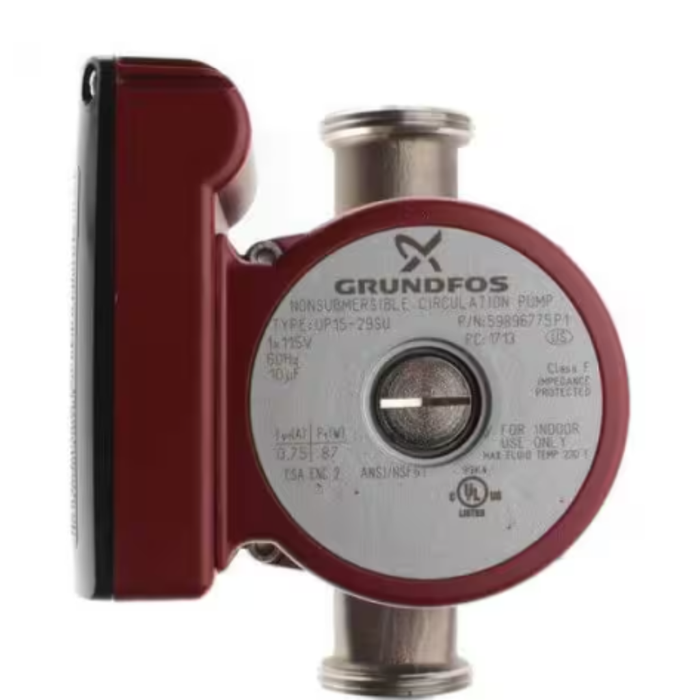

The Grundfos UP15-29SU circulator pump provides you with the perfect solution for your instant hot water system. It features a wet rotor design that brings quiet, maintenance-free performance plus durable, corrosion-free materials for long-term use. This Grundfos circulator pump is well-known for being easy to install and user-friendly.
- Rubber gaskets included
- 115 Volts
- 1/12 Horsepower
- Pump Connection: Union Connection: 3/4" NPT, 1/2" & 3/4" Sweat
NOTE: Union fitting sold separately
|
| Product name |
UP 15-29 SU |
| Product No |
59896775 |
| EAN number |
5700837414463 |
| Price |
|
| TECHNICAL |
| Speed no |
1 |
| Maximum flow |
4.7 m³/h |
| Max flow |
4.7 m³/h |
| Maximum head |
3 m |
| Head max |
3 m |
| Approvals on nameplate |
UL, CSA |
| MATERIALS |
| Pump housing |
Stainless steel |
|
DIN W.-Nr. 1.4301 |
|
AISI 304 |
| Impeller |
Composite, PES |
| INSTALLATION |
| Maximum ambient temperature |
40 °C |
| Amb. max at 80 dgr C liquid |
80 °C |
| Maximum operating pressure |
10 bar |
| Flange standard |
USA Threaded |
| Type of connection |
S.S. Union |
| Pipe connection |
1 1/4" NPSM |
| Pressure rating |
PN 10 |

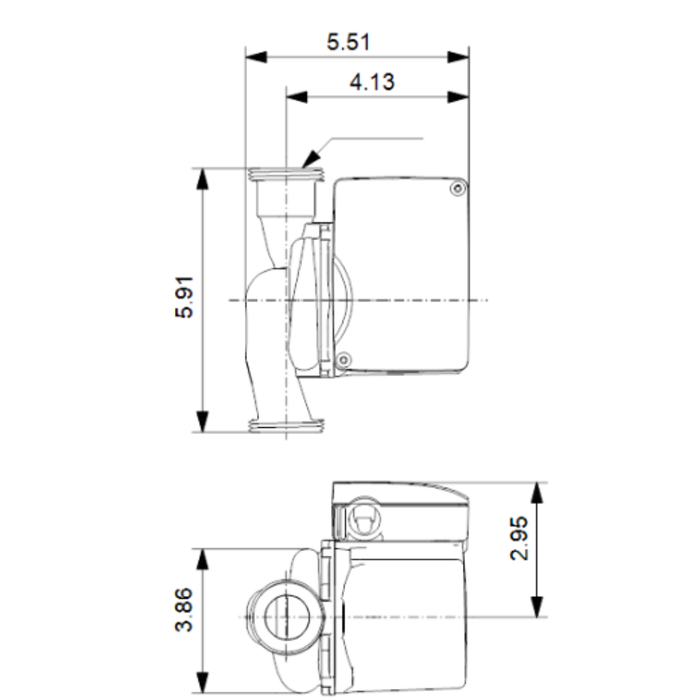

| Port-to-port length |
149 mm |
| LIQUID |
| Pumped liquid |
Water |
| Liquid temperature range |
2 .. 110 °C |
| Selected liquid temperature |
60 °C |
| Density |
983.2 kg/m³ |
| ELECTRICAL DATA |
| Max. power input |
87 W |
| Mains frequency |
60 Hz |
| Rated voltage |
1 x 115 V |
| Current in speed 3 |
0.75 A |
| Capacitor size - run |
10 µF/180 V |
| Number of poles |
2 |
| Insulation class (IEC 85) |
F |
| Motor protec |
CONTACT |
| Thermal protec |
Internal |
