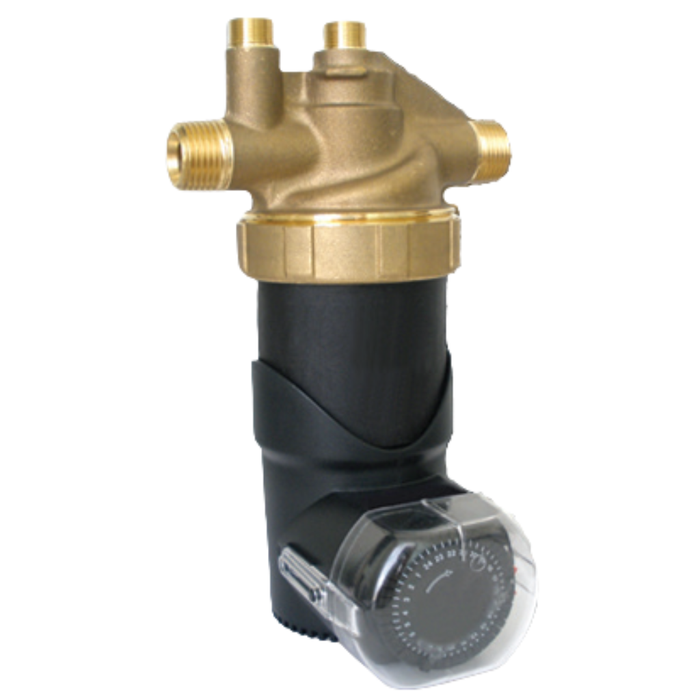

LAING THERMOTECH Hot Water Circulating Pump,1/150HP LHB08100092/60A0G6001

Spec Sheet

Product Description

The auto circ pump is installed under the sink or faucet farthest from the water heater - where hot water usually takes the longest amount of time to arrive. A built-in temperature sensor automatically turns the autocirc pump on when the water temperature in the hot water supply line cools down to 85º F. This cool water in the hot water supply line is then pumped into the cold water line and back into the water heater. The autocirc pump turns off automatically when the hot water supply line to the faucet reaches a temperature of 95º F, ensuring the instant availability of shower warm water with maximum temperature hot water only seconds behind. When the pump is automatically turned off by the built-in thermostat, an auto closure device prevents hot or cold water from mixing in either supply line. Another beneficial feature is that hot water will also be instantly available at all other faucets in the supply line between the water heater and the faucet where the autocirc pump is installed. Does not require a return line. Requires only 14 watts of power. Packaged complete with a 6 ft. long power cord. Requires only one pump and one installation for all fixtures on the hot water plumbing line. Has built-in fixed thermostat. Has a built-in 24 hour timer which allows the selection of system operating periods to suit family usage. Saves the average family of four up to 17,000 gallons of water annually.. Long lasting, silent operation. Saves energy, money, water and pays for itself in a short period of time (see additional images for energy saving chart). No shaft, no seal. Maintenance free without blockage. Single bearing design. Resistant to scale build up. Will not work with Tankless Heaters

Features

• HP: 1/150
• Series: E1
• Pump Mount: Plastic Snap Ring
• Face to Face Dimension: 4-13/32"
• Amps: 0.14
• Voltage: 115
• Connection Style: NPT
• Drive Type: AC Magnetically Driven Spherical Motor
• Length: 8"
• Manufacturers Warranty Length: 2 yr.
• Number of Speeds: 1
• Flange/Union Included: No
• Item: Hot Water Circulating Pump
• Housing Material: Lead Free Brass Volute
• Includes: 6 ft. Power Cord
• RPM: 3450
• Max. Temp.: 203 Degrees F
• Max. Operating Pressure: 145 psi
• Features: Noise Level 30dB
• Thermal Protection: Automatic Fixed
• Width: 4-1/2"
• Height: 8"
• Phase: 1
• Inlet/Outlet Size: 1/2"
• Pump Type: Fixed Thermostat with Timer
• Impeller Material: Nylon/PPO
• Loop Configuration: Open

• Item Type: Hot Water Circulating Pump
• Brand: LAING THERMOTECH
• Manufacturer Part Number: LHB08100092
• Includes: 6 ft. Power Cord
• Features: Noise Level 30dB

LHB08100092 Lead Free Brass* Autocirc 1/2” Fixed Thermostat with Timer E1-BCANCT1W-06 4 lbs.

Technical Data
Motor Design: Shaft-less spherical motor
Input: 14 Watts
Maximum Fluid Temperature: 203°F / 95°C
Maximum Line Pressure: 145 PSI
Compatible Fluids: Potable water

HP: 1/150
Series: E1
Pump Mount: Plastic Snap Ring

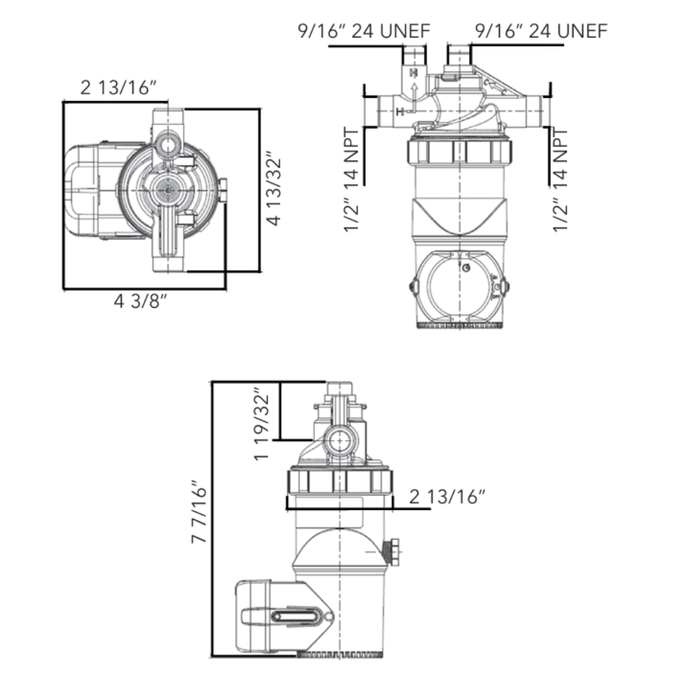

Face to Face Dimension: 4-13/32"
Amps: 0.14
Voltage: 115
Connection Style: NPT
Drive Type: AC Magnetically Driven Spherical Motor
Length: 8"
Manufacturers Warranty Length: 2 yr.
Number of Speeds: 1
Flange/Union Included: No
Item: Hot Water Circulating Pump
Housing Material: Lead Free Brass Volute
Includes: 6 ft. Power Cord
RPM: 3450
Max. Temp.: 203 Degrees F
Max. Operating Pressure: 145 psi
Features: Noise Level 30dB
Thermal Protection: Automatic Fixed
Width: 4-1/2"
Height: 8"
Phase: 1
Inlet/Outlet Size: 1/2"
Pump Type: Fixed Thermostat with Timer
Impeller Material: Nylon/PPO
Loop Configuration: Open

Width: 4-1/2"
Height: 8"
Phase: 1
Inlet/Outlet Size: 1/2"
