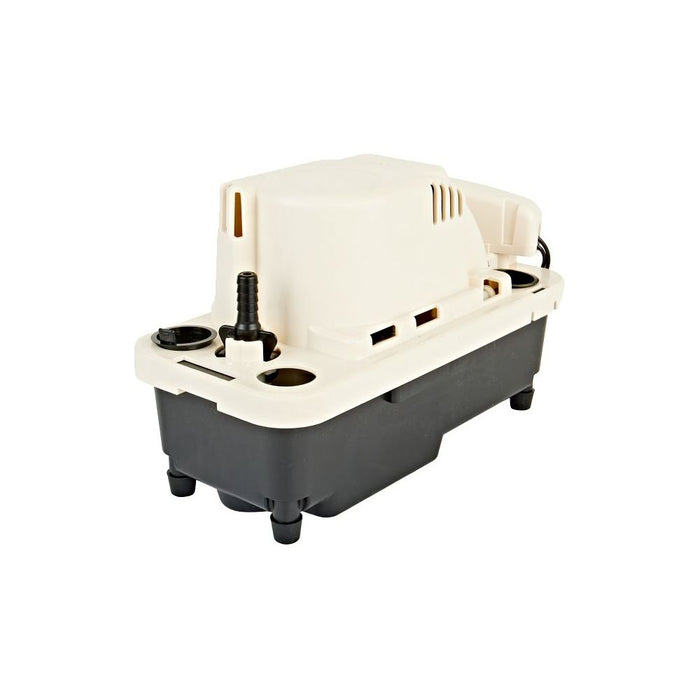

A vertical-type condensate removal pump with tubing and a safety switch, predominantly white and black in color.

Little Giant VCMA-20ULST-PRO-230 — 554651 PRO Series Condensate Pump 230 V with Safety Switch & Tubing

by Little Giant
SKU VCMA-20ULST-PRO-230
$ 0.00 - $ 0.00
$ 0.00
$ 70.39
$ 70.39 - $ 70.39
$ 70.39

Little Giant VCMA-20ULST-PRO-230 (554651) — 230 V PRO Series Condensate Pump

The VCMA-20ULST-PRO-230 is the 230 V version of the PRO series. It includes a built-in safety overflow switch and comes with tubing, delivering ~80 GPH at 1 ft head and up to 20 ft shut-off.

Key Features & Benefits

  • 1/30 HP motor, ~80 GPH (1.33 GPM) performance
  • Shut-off head of 20 ft (5.7 m)
  • Safety overflow switch included

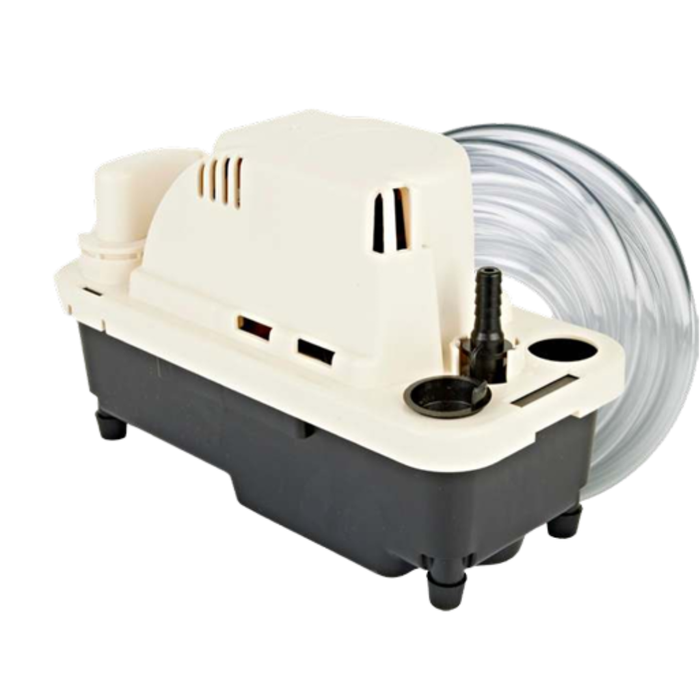

  • Tubing included in kit (20 ft)
  • Vertical, slim footprint for flexible install
  • Check valve and thermally protected motor built in

Specifications

Voltage 230 V, 50/60 Hz
Full Load Amps 1.5 A
Power (Watts) 75 W
Flow Rate 80 GPH / 1.33 GPM at 1 ft head
Shut-off Head 20 ft (5.7 m)
Max Temp 140 °F (60 °C)
Discharge ⅜″ barbed (0.38″) with check valve

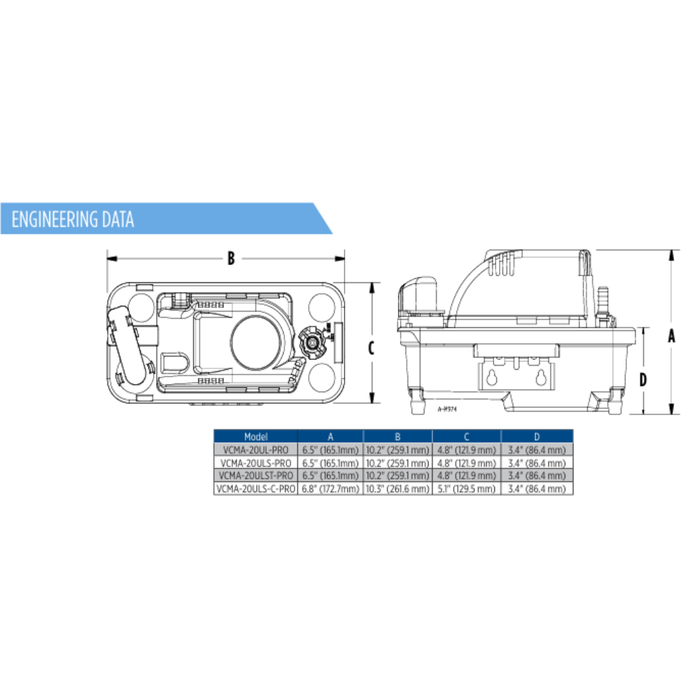

Dimensions 10.23″ × 4.75″ × 6.46″
Weight 5.5 lbs



Model Comparison

Model / Item Voltage Safety Switch Tubing Included Flow @ 1 ft
VCMA-20ULST-PRO (554650) 115 V Yes Yes 84 GPH
VCMA-20ULST-PRO-230 (554651) 230 V Yes Yes 80 GPH
VCMA-20ULS-PRO-230 (554631) 230 V Yes No 80 GPH



Common Questions

Q: Does this version need a dedicated return line?
A: No — like other PRO models, gravity return is required or a path for drainage must exist.

Q: Is it more efficient than standard versions?
A: The PRO models include premium features and design upgrades, including tubing and safety switch built-in.

Q: Will it shut off if the tank overfills?
A: Yes — the safety switch stops connected equipment or triggers alarm on overflow.



High performance, included accessories, and overflow protection — VCMA-20ULST-PRO-230 is built for demanding environments.


RATINGS
HP 1/30 hp
Frequency 50/60 Hz
Amps - Full Load 1.5 A
Full Load Watts 75 W
Volts 230 VAC
Cord Length 6 ft
Continuous Duty No
Maximum Flow Rate - 60Hz 1.33 gpm / 80 gph
Flow Rate At 1ft 1.33 gpm / 80 gph
Max PSIG 8.6 PSI
Max Flow Rate - 50Hz 1.33 gpm / 80 gph
Shut-Off 20 ft
Safety Switch Yes

Discharge 0.38 "
Product Length 10.23 "
Product Width 4.75 "
Product Height 6.46 "
Product Weight 5.5 lb
Product Weight w/ Pack 5.5 lb

View Spec Sheet (PDF)
View Install Manual (PDF)
