Zoeller BN270 Sewage Pump 270-0005 — 1/2 HP Automatic, 2″ Solids, 20′ Cord (Float Switch)

Zoeller BN270 — Sewage Pump with 20′ Cord & Switch (Model 270-0005)

The Zoeller BN270 is a dependable 1/2 HP automatic sewage pump for residential and light-commercial ejector pits. With 2″ solids handling, a non-clog vortex impeller, and an integrated float switch, it’s built for reliable, low-maintenance operation. This variant includes an extended 20′ power cord for deeper pits or where a longer reach is needed.

Key Features & Benefits

• 1/2 HP sewage ejector for homes and light commercial applications.
• Automatic float switch for dependable on/off operation.
• Handles up to 2″ spherical solids using a vortex, non-clog impeller.
• 2″ NPT discharge fits common sewage piping and check valves.
• 20′ power cord provides flexibility for deeper pits and routing.
• Zoeller durability with strong documentation and service support.

• Powder-coated epoxy finish provides corrosion-resistance and extends the life of the pump in harsh environments
• Stainless steel screws, handle, and piggyback switch pipe clamp to prevent rust and corrosion
• 100% Factory Tested - every pump is submerged in water and tested at the factory to ensure that it performs as expected when you receive it.

Best Use Cases

• Basement bathroom sewage ejection
• Septic/holding tank lifts to gravity lines
• Multi-fixture residential sewage pits
• Light commercial restrooms and lift stations (per code)

Specifications

Performance — Select by TDH

Use the pump curve in the specification sheet to size by required GPM at Total Dynamic Head (TDH). Consider vertical lift, pipe length/diameter, fittings, and check-valve losses.

Horsepower: 1 HP

Voltage: 115 V

Phase: 1 Ph

Amps: 15.0

Hertz: 60 Hz

RPM: 3450

Discharge: 2" NPT

Solids Handling: 2” (50 mm) spherical solids

On/Off Points: Variable level float switch, customer sets

Impeller Material: Engineered Plastic

Impeller Type: Vortex

Cord Length: 20' (6 m), 20' (6m) float switch

Shipping Weight: 47.5 lbs

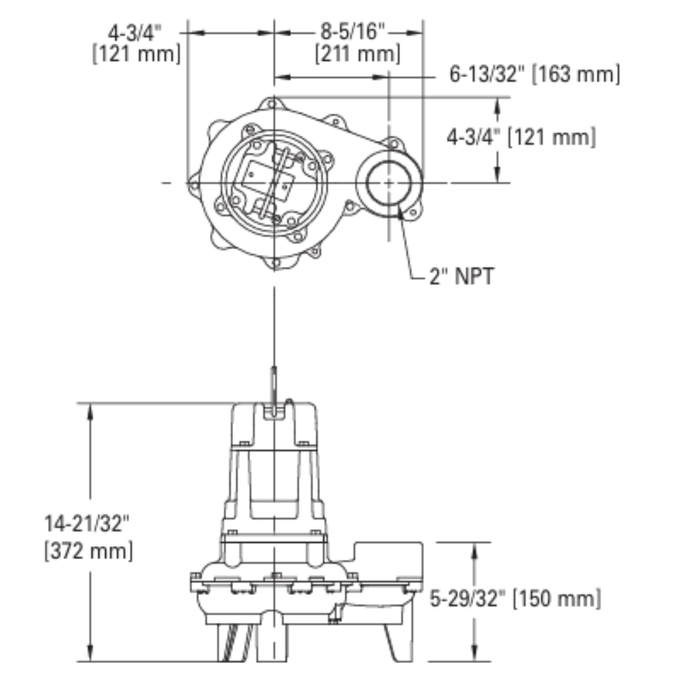

Shipping Dimensions: Height 16 1/4 in x Width 11 in x Length 13 1/2 in.
