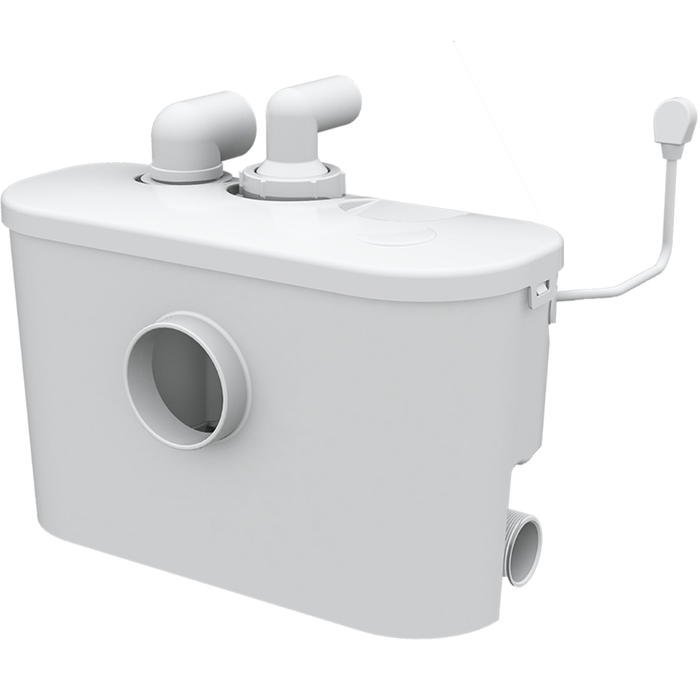

Zoeller 201-0006 Qwik Jon® Premier — Above-Floor Macerating System (6′ Cord), Add a Bathroom Anywhere

by Zoeller
SKU 201-0006
Sold out
$ 948.00 - $ 948.00
$ 948.00
$ 948.00 - $ 948.00
$ 948.00

Zoeller 201-0006 — Qwik Jon® Premier Macerating System (6′ Cord)

The Zoeller Qwik Jon® Premier 201-0006 is a pre-engineered above-floor macerating system that lets you add a bathroom without breaking concrete. Designed for finished basements, additions, and remodels, the Premier system macerates waste and pumps it to an existing sewer line, supporting a toilet and additional fixtures (see spec sheet for approved connections). Automatic operation and a compact tank make installation fast and clean.

Key Features & Benefits

  • Above-floor bathroom—no jackhammering; ideal for basements and remodels.
  • Pre-engineered macerating tank with internal, automatic pump control.
  • Handles a toilet plus additional fixtures (see spec sheet for approved connections and limits).
  • Compact, clean design with 6′ factory power cord for easy placement.
  • Zoeller quality: widely supported parts, documents, and service network.
  • Collects and removes unwanted water from all fixtures including toilets, tubs, sinks, showers, faucets, and more
  • Discharge elbow with a threaded union connection and built-in check valve
  • Easily connects to a tub, shower, sink or other fixtures with 2" NPT or 1-1/2" slip side inlets

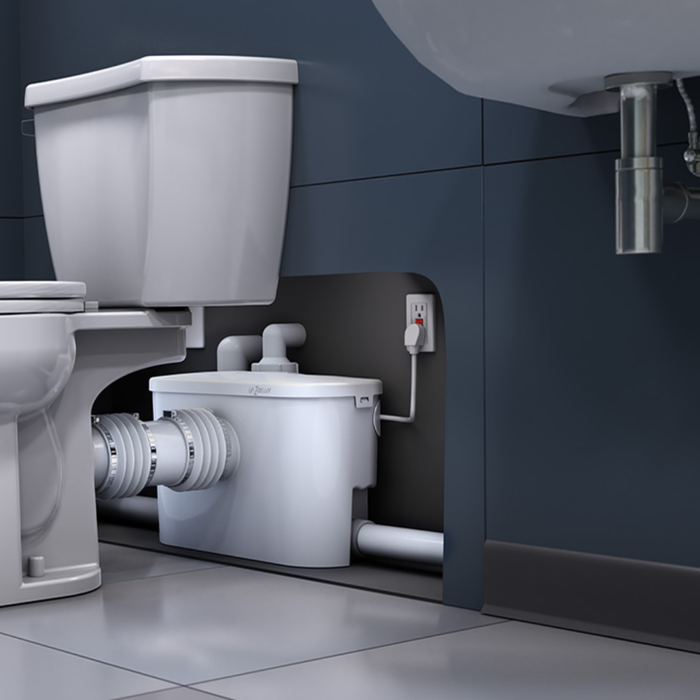

  • Fits right behind our rear outlet toilet or choose a discrete installation behind the wall in an adjacent utility room
  • Tri-Slice® Cutter Technology - three independent cutting channels provide over 250,000 cuts per minute
  • Non-clogging vortex impeller for reliable operation
  • Recessed side handles for carrying and installation, hidden side inlets when not in use
  • 1" discharge elbow with built-in check valve

Best Use Cases

  • For use in residential or light commercial upflush applications
  • Basement or garage bathrooms without gravity drain access
  • In-law suites, bonus rooms, pool houses, and finished spaces
  • Commercial tenant improvements where floor penetration is restricted

Specifications

Product Title 201 Qwik Jon Premier with 6′ Cord
Model / SKU 201-0006
UPC 053514477400
System Type Above-floor macerating/effluent pumping system
Operation Automatic (internal level control)
Power Cord 6 ft
Applications Residential or light commercial bathrooms where gravity drainage isn’t available



Performance & Sizing

Size by the GPM at Total Dynamic Head (TDH) using the performance curve in the specification sheet. Observe all venting, pipe size, backflow/check valve, and electrical requirements in the install manual.



Common Questions

Q: What plumbing fixtures can the Qwik Jon Premier serve?
A: A rear-discharge toilet plus additional fixtures (e.g., lavatory, shower) as allowed by the spec sheet. Follow venting and piping limits precisely.

Q: Do I need to break the floor to install it?
A: No. The Premier sits on the floor and macerates/pumps to an existing sewer line above grade, which is why it’s ideal for basements and remodels.

Q: Is the pump automatic?
A: Yes. The internal level control switches the macerating pump on/off automatically during use.

Q: What is the pump housing material—cast iron or thermoplastic?
A: Zoeller uses heavy-duty, corrosion-resistant construction appropriate to macerating systems (refer to the spec sheet for materials). Cast-iron is commonly used for heat dissipation in many Zoeller sump/effluent pumps; here, the engineered construction supports reliable maceration and pumping.

Q: How do I size and install the discharge and vent?
A: Follow the installation manual for pipe sizes, venting, check valve, slope, and maximum distances/head. Always comply with local codes.

Horsepower: 1/2 HP

Voltage: 115 V

Phase: 1 Ph

Amps: 9.6

Hertz: 60 Hz

RPM: 3450

Discharge: 1"

Solids Handling: Slurry

Impeller Material: Engineered Plastic

Impeller Type: Vortex

Cord Length: 6' (1.8 m)

Shipping Weight: 31 lbs

Shipping Dimensions: Height 21 in x Width 15 1/2 in x Length 12 in.

View Spec Sheet (PDF)
View Install Manual (PDF)
