Zoeller M264 Sewage Pump 264-0001 — 1/2 HP Cast Iron, Automatic, 2″ Solids Handling (9′ Cord)

Zoeller M264 — Sewage Pump with 9′ Cord (Model 264-0001)

The Zoeller M264 is a heavy-duty 1/2 HP cast-iron sewage pump designed for residential and light commercial sewage pits. With 2″ solids handling capability and automatic float operation, this pump delivers dependable performance for basement bathrooms, sewage ejector systems, and septic lift applications.

Key Features & Benefits

• 1/2 HP cast-iron motor housing for durability and heat dissipation.
• 2″ solids handling — suitable for sewage and wastewater applications.
• Non-clogging vortex impeller reduces jamming and maintenance.
• 9′ factory power cord for flexible pit installation.
• Compatible with residential and small commercial ejector systems.

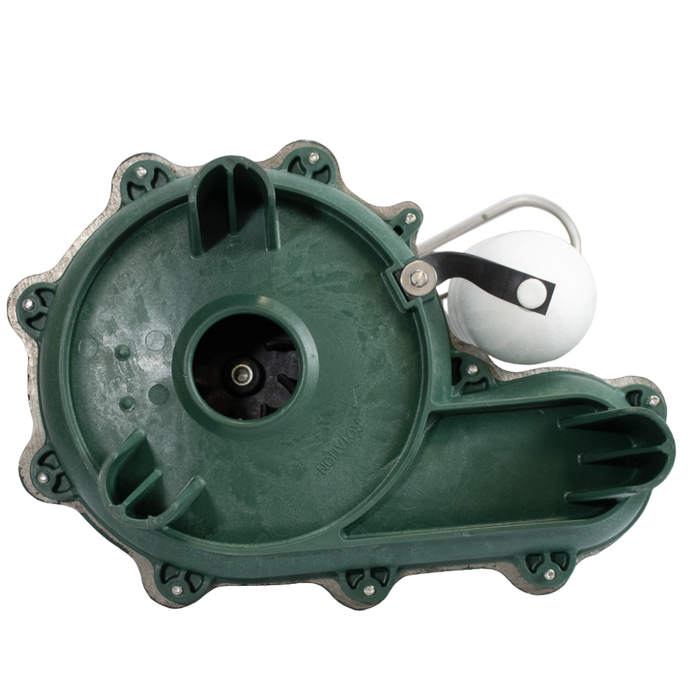

• Corrosion resistant engineered plastic vortex impeller to allow free passage of 2" spherical solids which prevents clogging and increases reliability
• Stainless steel float guard that prevents material and other solids in the waste stream from collecting on the float ensuring proper operation every time
• Solid, buoyant, polypropylene float to eliminate the possibility of water infiltration allowing the float to remain buoyant and functional at all times
• Powder-coated epoxy finish provides corrosion-resistance and extends the life of the pump in harsh environments
• Stainless steel screws, switch arm, guard, handle and hardware to prevent rust and corrosion over the life of the pump
• 100% Factory Tested - every pump is submerged in water and tested at the factory to ensure that it performs as expected right out of the box

Best Use Cases

• Basement bathroom sewage ejection
• Septic tank or packaged sewage systems
• Lift stations where gravity drainage is not possible
• Homes, duplexes, small commercial drainage

Specifications

Performance — Size by the Curve

Consult the pump curve to select the proper GPM at Total Dynamic Head (TDH). Account for lift, run length, pipe size, and back-pressure.

Horsepower: 4/10 HP

Voltage: 115 V

Phase: 1 Ph

Amps: 9.4

Hertz: 60 Hz

RPM: 1725

Discharge: 2" NPT

Solids Handling: 2” (50 mm) spherical solids

On/Off Points: 12-1/2" (31.8 cm) / 4-1/2" (11.4 cm)

Impeller Material: Engineered Plastic

Impeller Type: Vortex

Cord Length: 9’ (2.7 m)

Shipping Weight: 35.5 lbs

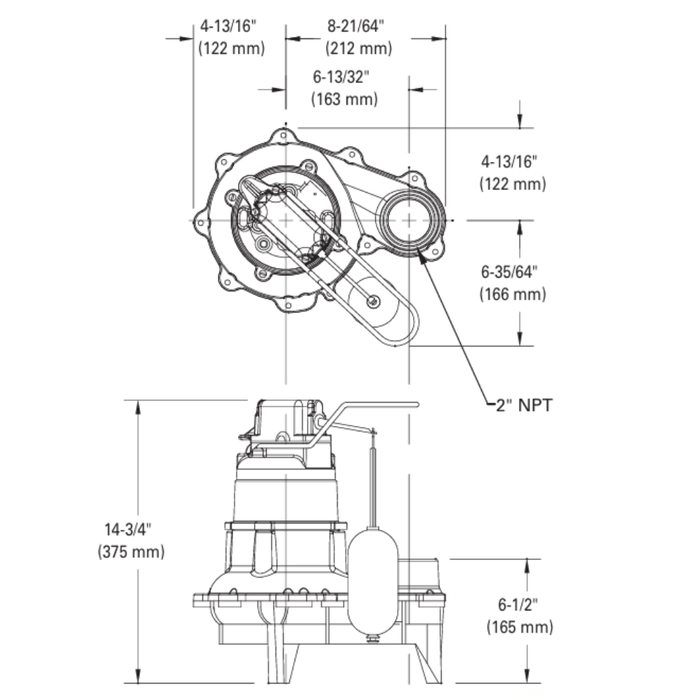

Shipping Dimensions: Height 16 1/4 in x Width 11 in x Length 13 1/2 in.
