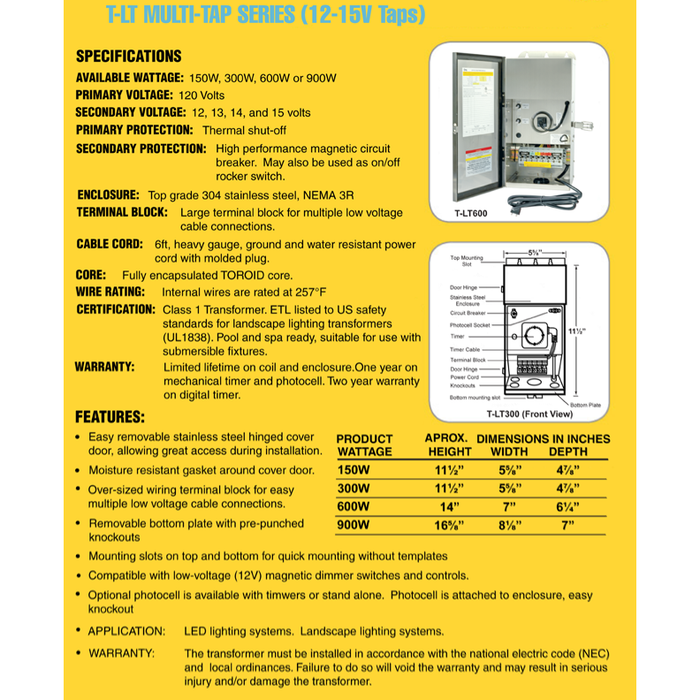

Corona Stainless Steel T-LT150 150W 12-15V Single Circuit Transformer

Corona Stainless Steel T-LT150 150W 12-15V Single Circuit Transformer

by Corona Lighting
SKU T-LT150
$ 0.00 - $ 0.00
$ 0.00
$ 284.00
$ 284.00 - $ 284.00
$ 284.00
Description : Stainless Steel Enclosure 150W, 12-15V, Single Circuit Transformer, Stainless Steel
Transformer Options Accessories: T-TR-FIP Photocell, T-FIT Field installed mechanical plug-in timer, T-FIDT Field installed digital plug-in timer& CX-DIM_100 Inline Dimmer. See Accessories for more information and ordering.
Wattage: 300 Watts
Primary Voltage 120 Volts
Secondary Voltage 12, 13, 14, 15 Volts
Primary Protection: Thermal shut-off
Secondary Protection High performance magnetic circuit breaker. May also be used as on/off rocker switch.
Terminal Block : Large terminal block for multiple low voltage cable connections.
Warranty: Ten (10) years warranty on coils. One (1) year warranty on timers, photocells, and accessories. Lifetime warranty on stainless steel enclosures. All warranties are valid from date of Corona Lighting invoice.

Dimensions: 5⅝" W x 11½" H
Ship Weight LBS: 15

Wattage: 150W
Primary Voltage: 120V
Secondary Voltage: 12V, 13V, 14V, 15V
Primary Protection: Thermal shut-off
Secondary Protection: High performance magnetic circuit breaker. May also be used as on/off rocker switch.
Terminal Block: Large terminal block for multiple low voltage cable connections.
Cable cord: 6-foot, heavy gauge, grounded and water resistant power cord with molded plug
Core: Fully encapsulated TOROID core
Timers & Photocell: None
Wire Rating: Internal wires are rated at 125°C (257°F)
Certification: Class 1 Transformer. ETL listed to U.S. safety standards for landscape lighting transformers (UL1838). Pool and spa ready, suitable for use with submersible fixtures.
Warranty: Limited lifetime on coil and enclosure. One year on mechanical timer and photocell. Two year warranty on digital timer

Overall Height: 13"
Depth: 5-1/2"
Width: 6"
