Spec Sheet

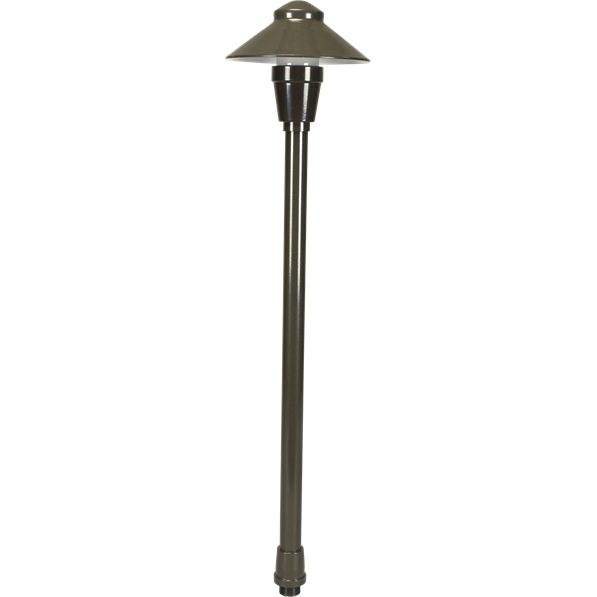

The Proton® fixture features a 5-inch shroud and is the perfect selection for every intimate garden space, planter area or pathway.
Features include, Marine grade A360 alloy construction, Proprietary E-Shield™ process provides 5 distinct layers of protection against corrosion, 15’ HUB-ready wire lead, 1' FLEX GOLD™ Auxiliary Lead, larger composite stake with molded brass threaded insert. White reflection panel under shroud for greater luminance. Available in 12” stem lengths and Borosilicate glass lens. Accepts Unique’s FLEX GOLD™ Series LED Micro G4 and T3 lamps or halogen lamps.
Materials | Crafted from Marine grade A360 alloy. |
Stem | Unibody design provides enclosed water resistant wire way. Integrated bung for maximum mechanical strength. |
Collar | Formed from marine grade A360 alloy. |
Shroud | Reflective Powder Coat Interior. |
Finish | Proprietary E-Shield™ process provides 5 distinct layers of protection against corrosion. |
Lens | Shock resistant, frosted Borosilicate Glass lens. |
Lamp | For use with FLEX GOLD™ Series LED lamps are available in 1W Micro G4 or 1 & 2W T3 lamps. LED lamps are available in 2700K and 3000K color temperatures. Xelogen lamp up to 20W. |
Electrical Requirements | A remote 12V transformer is required and may be ordered separately from Unique Lighting Systems®. Voltage range for 12V halogen lamps is 10.8V to 12V. Voltage range for FLEX GOLD™ Series LED Micro G4 & T3 lamps is 10V-15V. |
Lamp Connection | Specification grade, nickel lamp holder. GU5.3 base. |
Wiring | 15’ 18/2 wire lead and 1? FLEX™ Auxiliary lead. Pre-stripped HUB-ready leads for quick installation. |
Mounting Stake | Composite stake with molded brass threaded insert. |
Specifications:
- Marine grade A360 alloy construction
- High temperature silicone o-rings
- 1’ FLEX™ Auxiliary wire lead
- 15’ direct burial cable
- AMC - Anti-Moisture Connections
- 2W max. LED lamp / 20W max. halogen
- Available in 12” and 18” stem lengths
- Bronze finish
- E-Shield™ coating process
- Composite stake with brass threaded insert
- Limited 10 year warranty
