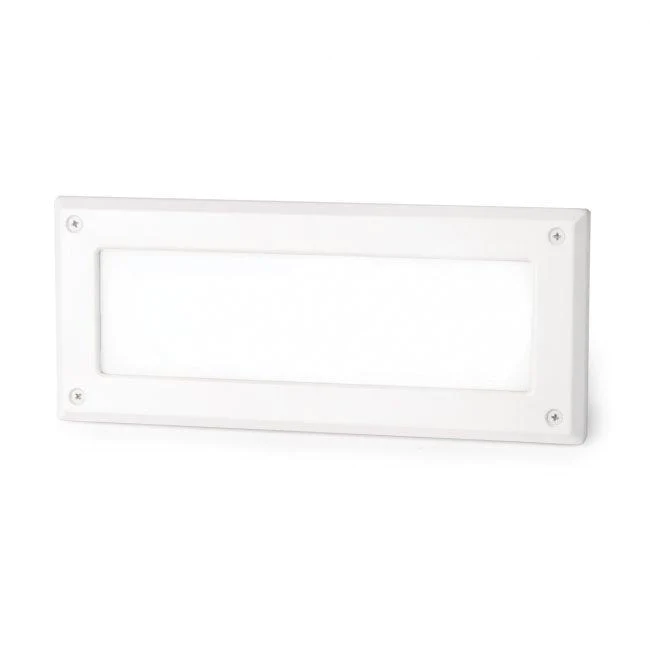

Designed for integration into brick walls or vertical risers. The energy-efficient Endurance™ LED Brick Light features a die-cast aluminum housing and integrated LED light engine with a heat resistant opal glass diffuser for a glarefree even spread of light, making outdoor areas safer and more secure.
- Delivered Lumens: 110lm
- 3000K
- CRI: 90
- Power: 5.5W
- Input: 120 VAC, 50/60Hz
- ELV Dimming: 100-10%
- Rated Life: 80000 Hours
- Construction: Die-cast aluminum (K-Alloy)
- Frosted tempered glass lens for even illumination
- Factory sealed LED light engine
- Can be mounted on wall vertically or horizontally
Construction: Die-cast aluminum (K-Alloy)
Power: 5.5W
Input: 120 VAC, 50/60Hz
Dimming: ELV: 100-10%
Light Source: Integrated LED
Rated Life: 80000 Hours

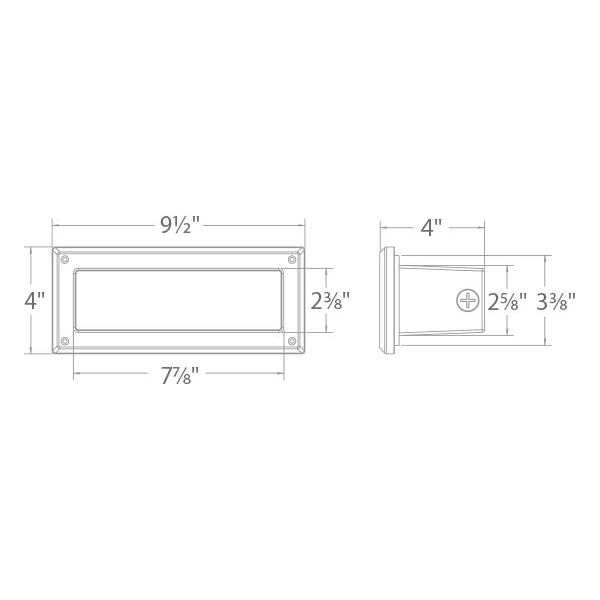

Mounting: Mortar into masonry, screw into wood walls, or retrofit into existing brick light installations, Can be mounted on wall vertically or horizontally Cut Out: 3 1/4" x 8"
Finish: Electrostatically
Powder Coated: Architectural White, Architectural Graphite, Architectural Bronze, Architectural Black
Operating Temp: -40°F to 122°F (-40°C to 50°C)
Standards: ETL, cETL, Wet Location Listed, IP66, ADA
| MODEL & VOLTAGE |
COLOR TEMP & CRI |
LUMENS |
FINISH |
| WL-5105 - 120 VAC |
3000K - 90 |
110 |
ABK - Architectural Black |
| |
|
|
ABZ - Architectural Bronze |
| |
|
|
AGH - Architectural Graphite |
| |
|
|
AWT - Architectural White |
Delivered Lumens: 110lm
3000K
CRI: 90
Power: 5.5W
Input: 120 VAC, 50/60Hz
ELV Dimming: 100-10%
Rated Life: 80000 Hours
Construction: Die-cast aluminum (K-Alloy)
Frosted tempered glass lens for even illumination
Factory sealed LED light engine
Can be mounted on wall vertically or horizontally
