WAC Lighting Step and Wall Lights are designed to seamlessly blend into any architecture featuring a sleek interchangeable magnetic faceplate with no visible hardware. These luminaires offer enhanced energy-efficient functionality and optimized light output to adequately illuminate stairs, walls and walkways with little or no glare. Light engine is IP66 sealed for both indoor and outdoor applications



Features

  • Delivered Lumens: 36lm
  • 3000K, Amber
  • CRI: 90
  • Power: 3.5W, 3W
  • Input: 120 VAC, 277 VAC, 50/60Hz
  • ELV Dimming: 100-10%
  • Rated Life: 50000 Hours
  • Construction: Die-cast corrosion resistant aluminum alloy
  • Louvered design offers shielded illumination
  • Magnetized design for easy installation and maintenance
  • Low profile, flush to wall aesthetics with no visible hardware



Construction: Die-cast corrosion resistant aluminum alloy

Power: 3.5W, 3W

Input: 277 VAC, 50/60Hz, 120 VAC

Dimming: , ELV: 100-10% Light

Source: Integrated LED

Rated Life: 50000 Hours

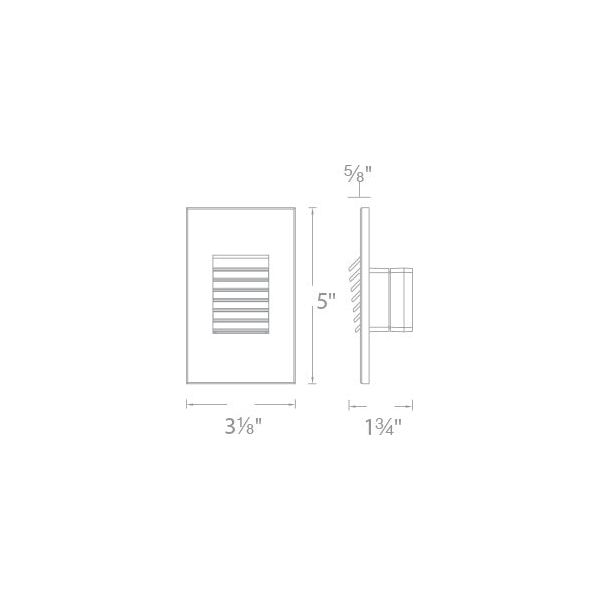

Mounting: Fits into 2" x 4" J-Box with minimum inside dimensions of 3"L x 2"W x 2.5"D

Finish: Enamel

Coated: White on Aluminum, Bronze on Aluminum, Black on Aluminum

Operating Temp: -40°F to 104°F (-40°C to 40°C)

Standards: ETL, cETL, Wet Location Listed, IP66, ADA, Title 24 JA8 Compliant



MODEL & VOLTAGE COLOR TEMP & CRI LUMENS FINISH
WL-LED220 - 120 VAC 3000K - 90 36 BK - Black on Aluminum
WL-LED220F - 277 VAC Amber - 90   BZ - Bronze on Aluminum
      WT - White on Aluminum
