Liberty Pumps - 250 - 1/3 HP Cast Iron Submersible Sump/Effluent Pump (Manual with No Switch)

Spec Sheet Install Manual

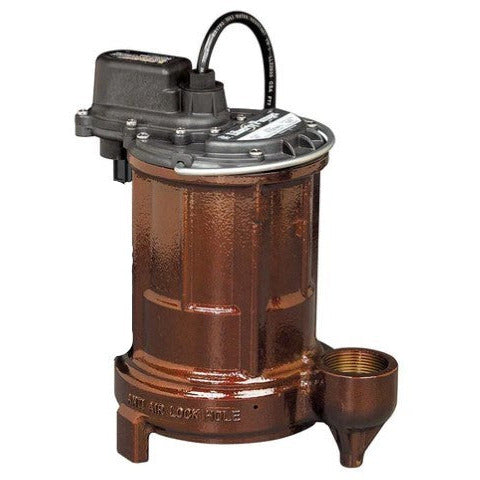

Rugged and dependable heavy-duty cast iron pump with powder coat finish.

Liberty's "workhorse" sump pump features a unique one-piece cast iron body, quick-disconnect power cord and three different switch options - including our Vertical Magnetic Float design (VMF) for smaller pits (model 257).

With a durable, epoxy powder coat finish and vortex style impeller, Liberty's 250-series pump is the perfect choice for low-head effluent pumping or basement de-watering.

Features:

• Unique one-piece cast body eliminates motor housing seal ring
• Durable epoxy powder coat finish
• Vortex style impeller
• Permanently sealed and lubricated bearings
• Quick-disconnect 10’ standard power cord allows replacement of cord in seconds without breaking seals to motor (other lengths available)
• Heavy duty VMF switch on vertical float models
• Rugged 1/3 hp motor, oil filled with thermal overload protection.
• 1/2" solids handling.
• 1-1/2" discharge.
• Fasteners – all non-corrosive stainless steel.
• 416 stainless steel rotor shaft.

Specifications:

• Model: 250
• HP: 1/3
• Volts: 115V
• Phase: 1
• Amps: 5.2
• Automatic: Manual
• Shut Off Head: 22 ft
• Impeller: Vortex
• Height: 10.5"
• Major Width: 9.6"
• Weight: 20 lbs.

Sump Pumps

Model: 250
HP: 1/3
Volts: 115V
Phase: 1
Amps: 5.2
Automatic: Manual
Shut Off Head: 22 ft
Impeller: Vortex

Height: 10.5"
Major Width: 9.6"
Weight: 20 lbs.
