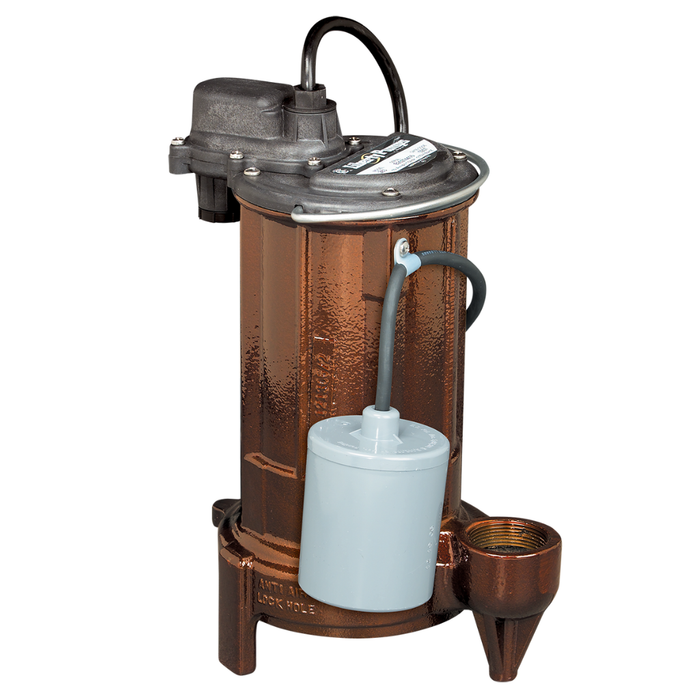

Liberty Pumps 293 3/4 HP Automatic Cast-Iron Sump/Effluent Pump

Liberty Pumps 293 3/4 HP Automatic Sump/Effluent Pump with Wide-Angle Float

Brand: Liberty Pumps | SKU: L293

Product Overview

The Liberty Pumps 293 is a 3/4 HP cast-iron submersible pump for sump, effluent, and other compatible higher-head drainage applications. An adjustable wide-angle piggyback float cycles the pump automatically; the installer can set its tether position for the intended basin. This Big Frog Supply listing uses SKU L293 for manufacturer model 293. Verify the basin, discharge, and float clearance before ordering.

Key Features

• 3/4 HP, 115V oil-filled and thermally protected motor
• Adjustable wide-angle piggyback float switch
• One-piece cast-iron housing with stainless-steel screen and hardware
• 1-1/2 in. discharge and 3/4 in. solids handling
• Standard 10 ft quick-connect power cord

Common Uses

• Compatible sump and effluent transfer
• Higher-head drainage where float-controlled operation is required

Technical Specifications

• Manufacturer model: 293
• Store SKU: L293
• Motor: 3/4 HP, 115V, 10.4A
• Float: Wide-angle piggyback
• Discharge: 1-1/2 in.
• Solids handling: 3/4 in.
• Standard cord: 10 ft
• Weight: 32 lb

Dimensions

13 in. high; Liberty lists a 14 in. minimum sump diameter for model 293.

Compatibility & Installation Notes

Allow the float to travel freely and set the tether in accordance with Liberty's instructions. Confirm the discharge, check valve, and electrical protection. A 25 ft cord is the separately designated 293-2 model.

Frequently Asked Questions

Is L293 a different pump from Liberty model 293?
No. L293 is the store SKU for manufacturer model 293.

Why Buy Liberty Pumps L293 from Big Frog Supply?

The model 293 provides 3/4 HP performance with an adjustable wide-angle float for a compatible higher-head sump or effluent setup.

Liberty Pumps model 293 (store SKU L293), 290 Series automatic cast-iron sump/effluent pump. 3/4 HP, 115V, 10.4A; adjustable wide-angle piggyback float; 1-1/2 in. discharge, 3/4 in. solids handling; standard 10 ft cord; 32 lb.

13 in. high; minimum sump diameter 14 in.
