PINNACLES

The Brilliance Soft Accent Light comes complete with a frosted lens, Brilliance Metal Works signature adjusting system with 22 points of articulation in 10-degree increments, ABS mounting stake, and Lighting Shrink professional crimp and heat shrink cable connector.

USE: Uplighting, grazing, and backlighting techniques.  Best used when low level wall wash techniques are required

LAMP: G4 Rectangular Wafer

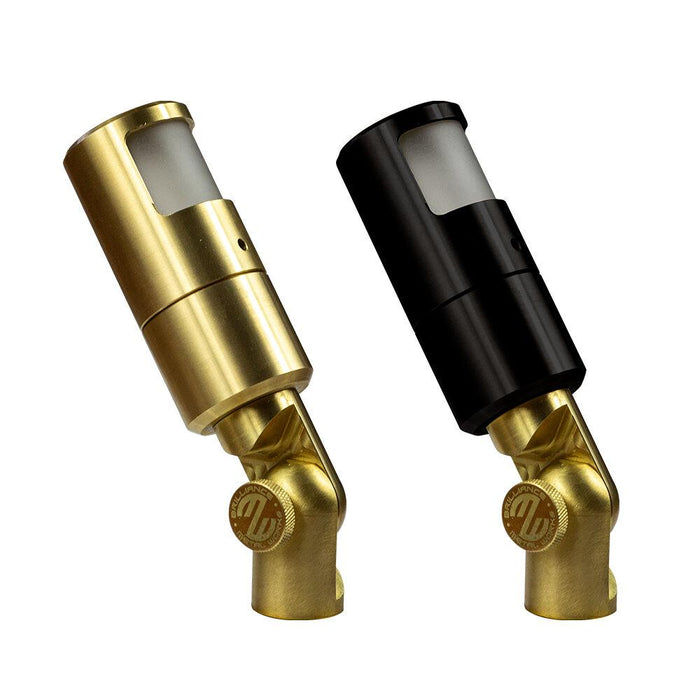

FINISH: Brass, blackened brass

Fixture Finish Maintenance

The Pinnacles fixture is available in brass or blackened brass. These metals offer a beautiful living finish that weathers over time to a unique patina. If you prefer to maintain the original finish, we recommend wiping down the fixture periodically with a light oil, such as WD-40.

INSTALLATION

INSTALLING THE LAMP

1. Loosen the Allen set screw at the bottom of the fixture.

2. Remove the brass cap.

3. Install the G4 lamp into the socket.

4. Place the brass cap back on the fixture body.

5. Adjust the window in the direction light is desired.

INSTALLING THE FIXTURE

1. Dig a hole in the ground approximately 4” wide by 10” deep. A rubber mallet may be used to drive the stake into the ground when working with soft soil.

2. Lay the power cable from the fixture into the slotted relief on the stake.

3. Screw the fixture into the stake.

4. Use a level to assure the top of the spike is level with the ground.

ADJUSTING THE FIXTURE

1. Turn the knuckle counterclockwise to loosen the knuckle.

2. Rotate the fixture vertically to the desired position.

3. Turn the knuckle clockwise to hold it in the desired position.

Wattage: 2
Lumens: 120
Beam Spread: 180 Degree
Kelvin Temperature: 2700
Operating Range: 8-18V AC/DC
Replaces: 25W Halogen
CRI: 85
IP: 60
Chipset: Samsung
Lamp Life (hours): 35,000
Warranty (years): 5
