Camco Tankless Drain Pan

The tankless drain pan is designed to fit underneath most whole house tankless water heaters providing both water damage protection and flushing maintenance convenience. The plastic pans are injection molded to give them superior strength and durability. Both aluminum and plastic will not rust or crack and are recyclable and non-toxic. Both aluminum and plastic pans can be used with gas or electric water heaters. The plastic pans measure 21.5? W x 16? H x 13.4? D. The aluminum pans measure 21.7?W x 14.17?H x 11.62?D.

Why should you use The Wall Saver?

• Tankless water heaters will need a drain pan if mounted over a finished surface or on a wall that could be damaged by a leak.
• A leak from a tankless unit can be just as damaging as a leak from a tank unit, as it is water under pressure.
• The pan is also convenient when flushing the unit during routine maintenance.
• The tankless unit can be plumbed around or through the pan.

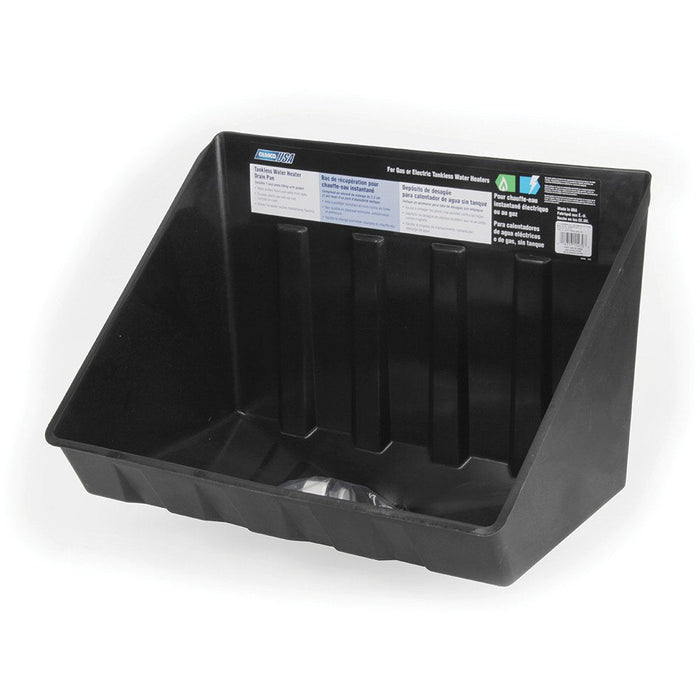

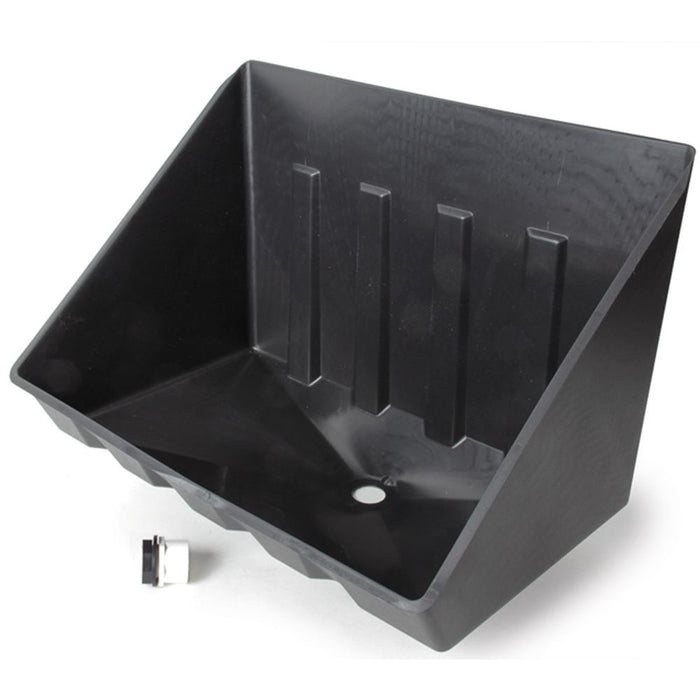

No-Break Polypropylene Wall Mount

• Injection molded to provide superior strength and durability
• Recyclable and non-toxic
• Drain Fitting included
• Manufactured in USA

DIMENSIONS:
Width: 21.5" Height: 16" Depth: 13.4"
#11470 with PVC drain pan fitting
#11476 with CPVC drain pan fitting

Aluminum Wall Mount

• Camco’s aluminum pans will not rust or crack and may be used for gas or electric water heaters.
• Drain Fitting included

DIMENSIONS:
Width: 21.72" Height: 14.17" Depth: 11.62"
Weight: 2.3 lb
#11430 with PVC drain pan fitting
#11433 with CPVC drain pan fitting

Instructions:
Mount pan to wall by drilling holes through the backsplash, taking care to not to crush strengthening ribs in the backsplash. If a mounting board is used to mount the water heater, it is permissible to notch the sides of the backsplash 4 inches from the top to allow the mounting board to be placed over the backsplash. Plumbing penetrations may be cut in the sides, however it is best to plumb around when possible to maximize splash and leak protection. If penetrations are cut, they should be caulked.

Plumb drain using the included 1 / 1.5 inch drain fitting with gasket. Note that the gasket is installed on the outside of the pan.

DIMENSIONS:
Width: 21.72" Height: 14.17" Depth: 11.62"
Weight: 2.3 lb
#11430 with PVC drain pan fitting
#11433 with CPVC drain pan fitting
