This bundle includes the Eccotemp EL22i Liquid Propane Tankless Water Heater and the Eccotemp 4" Vertical Vent Kit Bundle.

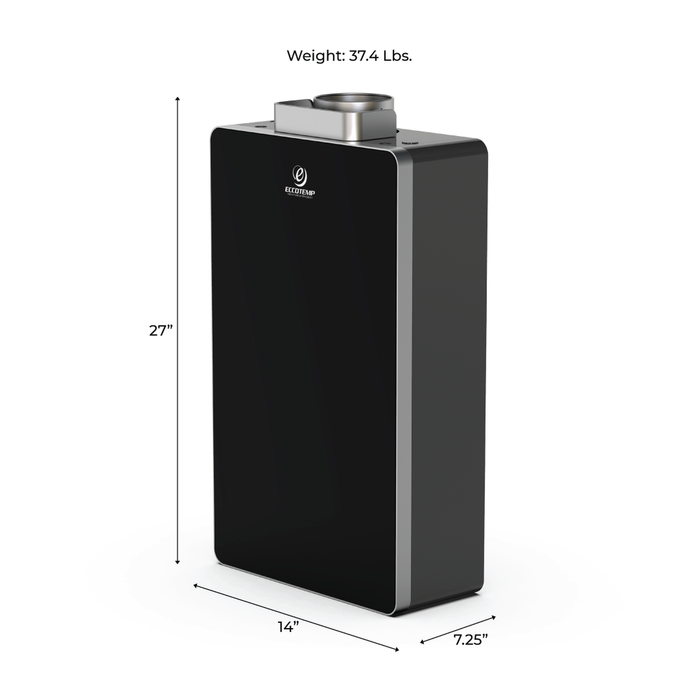

The Eccotemp EL22i Liquid Propane Tankless Water Heater is the largest indoor model of the Eccotemp tankless line. This model has a sleek, black tempered front glass casing with automatic temperature controls and a touch screen with an LED digital display that shows the output temperature reading and gallons per minute flow rate. The Eccotemp EL22i is rated at an impressive 6.8 gallons per minute and has a maximum BTU rate of 140,000. Whether you use natural gas or liquid propane the Eccotemp EL22i is the perfect solution for all the hot-water needs of a standard home or apartment with one or two bathrooms, as well as smaller commercial applications.
Product Features:
- CSA Certified for US and Canadian use
- Hot water capacity range: .8 - 6.8 GPM
- 45-degree rise: 6.8 GPM
- 50-degree rise: 5.0 GPM
- 70-degree rise: 3.4 GPM
-
110-volt UL Listed Power Cord
-
Liquid Propane-Powered
-
10 Year Warranty on Heat Exchanger
-
5 Year Warranty on Parts
-
Activation Flow .8 GPM
-
Maximum Flow Rate 6.8 GPM
-
Energy Factor: 0.80
-
Energy Rating: 82%
- Minimum/Maximum Gas Rate: 26,000 - 140,000 BTUs

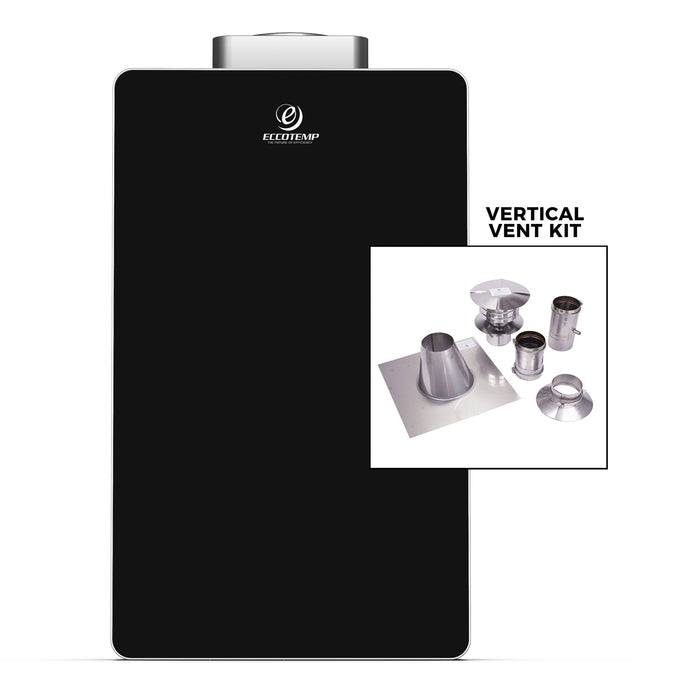

The Eccotemp 4" Vertical Vent Kit includes:
- 1 x 4" Rain Cap
- 1 x 4" Top Support/Storm Collar
- 1 x 4" Adjustable Roof Flashing (Normal 30-Degree Flashing)
- 1 x 4" Universal Appliance Adapter
- 1 x 4" Backflow Preventer
- 1 x 4" Vertical Drain Pipe
You will need to determine how many additional feet of venting you need and purchase an additional Z-Vent straight pipe. There is a maximum vent run of 20 feet, subtracting 4 feet for every 90 degree elbow in the run. This vent kit does not include a condensation drain pipe. If you need one, they are available for purchase separately.
EL22i Product Info and Manual
EL22i Warranty
The Eccotemp EL22i has been tested for use at elevations up to 2000 feet. Installation and use of the Eccotemp EL22i above 2000 feet may affect overall product efficiency and performance. Installation and use of the Eccotemp EL22i above 5000 feet is not recommended.
IMPORTANT NOTE: Cannot be used for HYDRONIC SYSTEMS, RECIRCULATING, or FLOOR HEATING.
