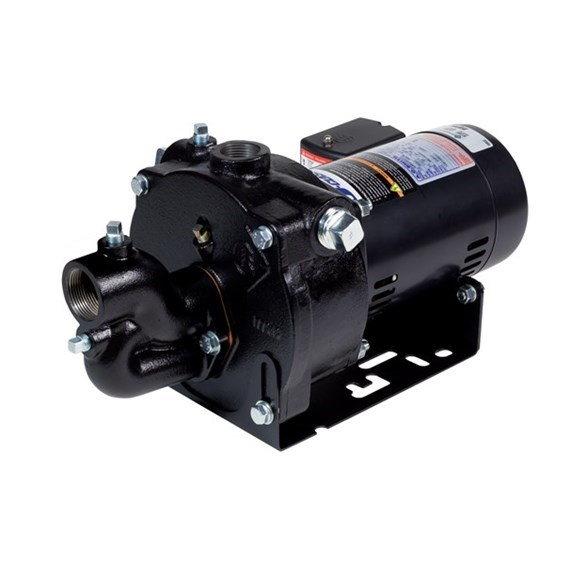

Franklin CVJ07CI-S-P #96136107 3/4 HP Convertible VersaJet Pro

Although no single pump can meet all applications, the Convertible VersaJet from Franklin Electric comes close. Each model can be configured with a variety of pressure and flow choices in both shallow and deep set installations. In addition, four different suction flange options make this pump the contractor’s choice for those tough replacement jobs.

• Heavy-duty cast iron case ensures optimum durability and long life.
• Modular suction flange system to retrofit current installations without disturbing the existing plumbing.
• Thermoplastic impeller and diffuser precision molded for high efficiency and dependability.
• Thermoplastic impeller and diffuser ensure increased hydraulic performance.
• Phenolic/Ceramic mechanical shaft seal ensures leakproof fit and maximum pressure handling capability.
• Adjustable pressure switch is factory set at 30/50 psi.
• Powered by high quality, industry proven, UL 778 approved indoor/outdoor square flange motors.
• Dual voltage motor can be set to run at either 115 V or 230 V.
• Built-in drain plug for easy winterization and servicing.
• Pressure gauge supplied for easy monitoring of system pressure.
• Connections:
• 1-1/4" FNPT Suction
• 1" FNPT Drive Line

HP 3/4 hp
Frequency 60 Hz
Phases Single-Phase
Volts 115 VAC / 230 VAC
Amps at 230 Volts 7.4 A
Motor Enclosure ODP

Discharge Threaded - FNPT
Discharge Diameter 1.25 "
Suction Diameter 1.25 "
Suction Threaded - FNPT
Pump Length 13.68 "
Product Weight 41 lb
Product Weight with Pack 41 lb
Carton Length 19.88 "
Carton Width 11 "
Carton Height 12.25 "
Pump Height 10.31 "
Pump Width 10.33 "
