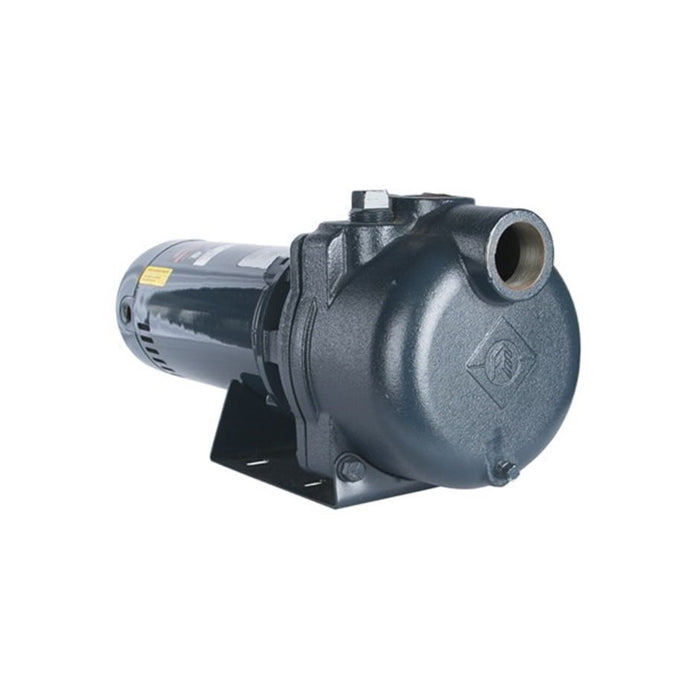

Franklin Electric - 92980020 - FTB2CI FPS 2HP Turf Boss Self-Priming Irrigation Pump, 230v 1.5" x 1.5" FNPT connections

Install Manual

The Turf Boss excels when used to supply water to a timer operated irrigation system, but the rugged, easily serviced pump can be used in other areas as well. Some of which are residential water transfer, commercial dewatering, rainwater drainage, light agricultural irrigation, sump drainage, and industrial liquid transfer. As a premium self-priming sprinkler pump, the Turf Boss is approved for indoor or outdoor operation through CSA and UL.

Whether it is a sprinkler system, a construction site, or a water transfer tank, when moving high volumes of water the Turf Boss guarantees the right amount of water right on time.

• Volute: Built-in suction check valve facilitates priming and prevents back flow or siphoning
• Impeller: Combining efficient operation with durable construction to allow for use in a broad range of pumping applications
• 3 HP models are offered with Cast Iron (304 Stainless steel coming soon)
• 5 HP models are offered with 304 stainless steel impellers
• Seal: Standard carbon/ceramic faces, FKM elastomers, 300 series stainless components.
• Diffuser: Cast iron diffuser is utilized in all models, improving pump efficiency
• Motor: Standard JM Frame Motors

Applications:

• Irrigation
• Construction
• Commercial
• Municipal
• Light Industrial
• Residential
• Water Transfer

HP 2 hp
Frequency 60 Hz
Phases Single-Phase
Volts 230 VAC
Amps at 230 Volts 12.9 A
Maximum Suction Lift 7 Meters
Motor Enclosure ODP

Discharge Threaded - FNPT
Discharge Diameter 1.5 "
Suction Diameter 1.5 "
Suction Threaded - FNPT
Pump Length 21.6 "
Product Weight 58 lb
Carton Length 23.81 "
Carton Width 9.88 "
Carton Height 10.88 "
Pump Height 8.87 "
Pump Width 7.15 "
