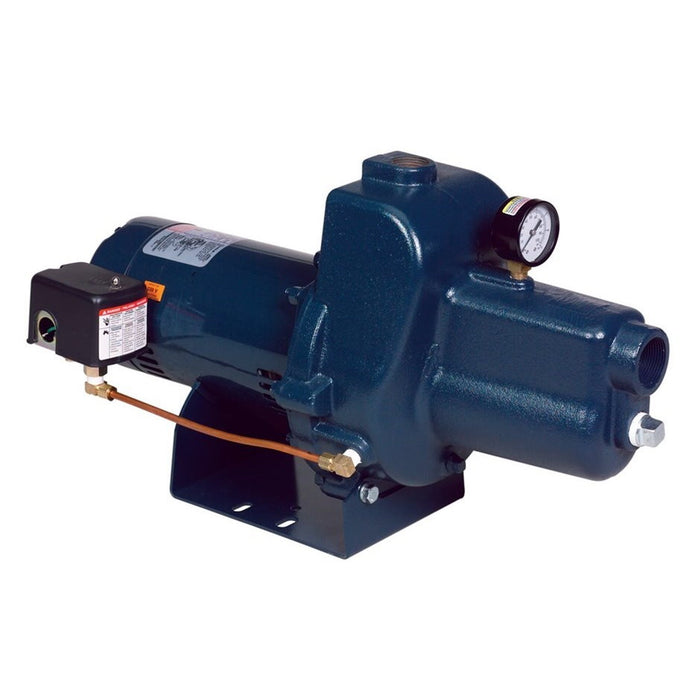

Industrial pump on a white background

Franklin Electric FVJ1CI-P — 91181010 1 HP VersaJet PRO Shallow Well Pump

by Franklin Electric
SKU 91181010
$ 761.69 - $ 761.69
$ 761.69
$ 761.69 - $ 761.69
$ 761.69

Franklin Electric FVJ1CI-P — 1 HP VersaJet PRO Shallow Well Jet Pump (115/230V)

The VersaJet PRO FVJ1CI-P delivers higher output for homes with greater demand. Its self-priming shallow well design, cast-iron construction and dual-voltage motor make installation straightforward and dependable.

Key Features & Benefits

  • 1 HP single-phase motor for increased flow and pressure
  • Self-priming shallow well hydraulics
  • Cast-iron body for durability and quiet operation
  • Includes factory pressure switch for simple control

Applications

  • Whole-home shallow well supply
  • Tank-to-home pressure boosting
  • Small irrigation/sprinkler circuits

Specifications

Model FVJ1CI-P (91181010)
Horsepower 1 HP
Voltage 115/230V, single-phase
Material Cast Iron
Type Shallow Well Jet Pump



Common Questions

Q: Can this feed multiple bathrooms?
A: Yes — sizing depends on total dynamic head and fixture demand; refer to the pump curve for selection.

Q: What maintenance is typical?
A: Keep suction plumbing airtight, clean the screen/foot valve if used, and check pressure switch settings.

Q: Can it run on 115V?
A: Yes. The dual-voltage motor can be wired 115V or 230V; verify circuit capacity and follow the nameplate diagram.



A strong, versatile shallow-well solution with plug-and-play controls.

HP 1 hp
Frequency 60 Hz
Phases Single-Phase
Volts 115 VAC / 230 VAC
Amps at 230 Volts 9.95 A
Motor Enclosure ODP

Discharge Threaded - FNPT
Discharge Diameter 1 "
Suction Diameter 1.25 "
Suction Threaded - FNPT
Pump Length 22.66 "
Product Weight 56 lb
Product Weight with Pack 56 lb
Carton Length 19.88 "
Carton Width 11 "
Carton Height 12.25 "
Pump Height 12.88 "
Pump Width 10.68 "

View Spec Sheet (PDF)
View Install Manual (PDF)
