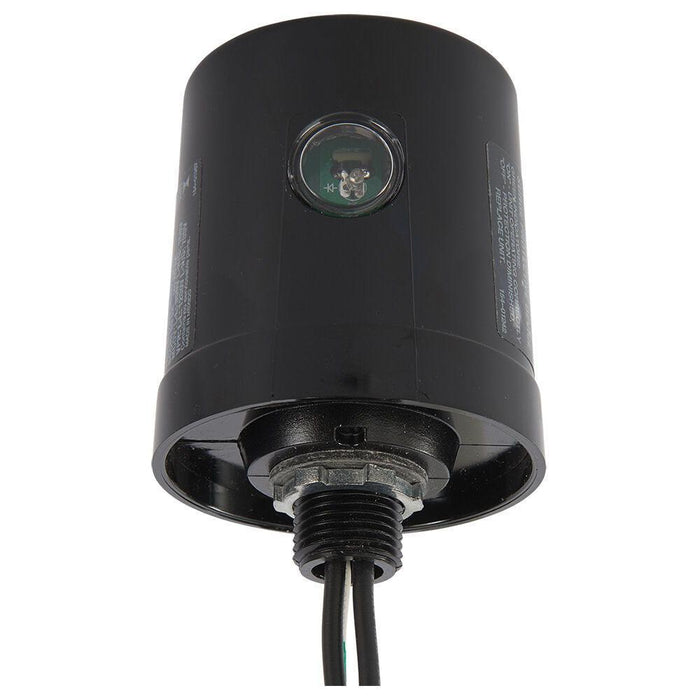

Intermatic AG4803C3 Surge Protective Device, 6-Mode, 277/480 VAC 3Ph Y, Type 1 or Type 2, Outdoor

The AG Series Surge Protective Devices (SPD) are designed for a variety of applications. Trusted, state-of-the-art TPMOV® (Thermally Protected Metal Oxide Varistor) surge protection technology eliminates the potentially hazardous failure modes that are commonly associated with standard MOV technology. A green LED indicator provides status of protection.

Type 1 applications include outdoor installations before service entrances and utility meter cabinets.

Type 2 applications include installations after service entrances.

Outdoor applications include irrigation equipment, farm equipment, pumps, lighting fixtures, traffic signaling devices, HVACR controls and motors. AG2401C3/AG48013/AG6503C3/AG6503L3 are UL Listed to ANSI/UL 1449, 3rd edition. AG2083C3/AG4803C3/AG2403C3 are CSA certified to ANSI/UL 1449, 3rd Edition.

Features:

• Six modes of protection
• TPMOV® surge protection technology
• Green LED protection indicator
• Type 4X watertight, plastic enclosure for outdoor installations
• UV-resistant polycarbonate housing
• 1?2" threaded nipple for 7?8" nominal conduit knockout
• 1-year product warranty
• UL Listed to ANSI/UL 1449 3rd edition

Applications:

• Distribution Panel
• Service Entrance

Specifications:

• Modes of Protection: 6 (L1-N, L2-N, L3-N, L1-L2, L1-L3, L2-L3)
• Enclosure Type: Indoor/outdoor type 4X
• Voltage: 277/480 VAC Single-Phase
• Wiring Option: Wire leads
• Category: Hard Wired Surge Web
• Maximum Continuous Operating Voltage (L-L): 640
• Maximum Continuous Operating Voltage (L1-L2): 640
• Phase: Three

• Surge Protection LED Indicator: Green
• Voltage Protection Rating (L-G): 1200
• Voltage Protection Rating (L-N): 1200
• Operating Temperature Max (°F): 185

• Operating Temperature Min (°F): -31
• Product Height (in): 4 3/16"
• Unit Carton Height (in): 7.001
• Unit Carton Weight (lb): 0.998

• Surge Protection Type: 1, 2
• Surge Protection Technology: TPMOV®
• Warranty Period: 1-Year limited
• Maximum Surge Current Rating Per Phase: 50 kA
• Maximum Continuous Operating Voltage (L-G): 320
• Maximum Continuous Operating Voltage (L-N): 320
• Nominal Discharge Current: 20 kA

• Short Circuit Current Rating: 50 kA
• UL Standard: Ansi/UL 1449 3rd Edition
• Voltage Protection Rating (L-L): 2000
• Wire Size Max: #12 AWG

Modes of Protection 6 (L1-N, L2-N, L3-N, L1-L2, L1-L3, L2-L3)
Surge Protection Type 1, 2
Enclosure Type Indoor/outdoor type 4X
Surge Protection Technology TPMOV®
Voltage 277/480 VAC 3-Phase Wye
Wiring Option Wire leads
Warranty Period 1-Year limited
Maximum Surge Current Rating Per Phase 50 kA
CAProp65Message
Please see the Warning @ www.P65Warnings.ca.gov
Country Of Origin Mexico
Maximum Continuous Operating Voltage (L1-L2) 640
Maximum Continuous Operating Voltage (L-G) 320
Maximum Continuous Operating Voltage (L-L) 640
Maximum Continuous Operating Voltage (L-N) 320
Nominal Discharge Current 20 kA
Phase Three
Short Circuit Current Rating 50 kA
Surge Protection LED Indicator Green
UL Standard Ansi/UL 1449 3rd Edition
Voltage Protection Rating (L-G) 1200
Voltage Protection Rating (L-L) 2000
Voltage Protection Rating (L-N) 1200
Wire Size Max #12 AWG
Operating Temperature Max (°C) 85
Operating Temperature Max (°F) 185
Operating Temperature Min (°C) -35
Operating Temperature Min (°F) -31

Product Height (in) 4 3/16
Product Height (mm) 106.4
