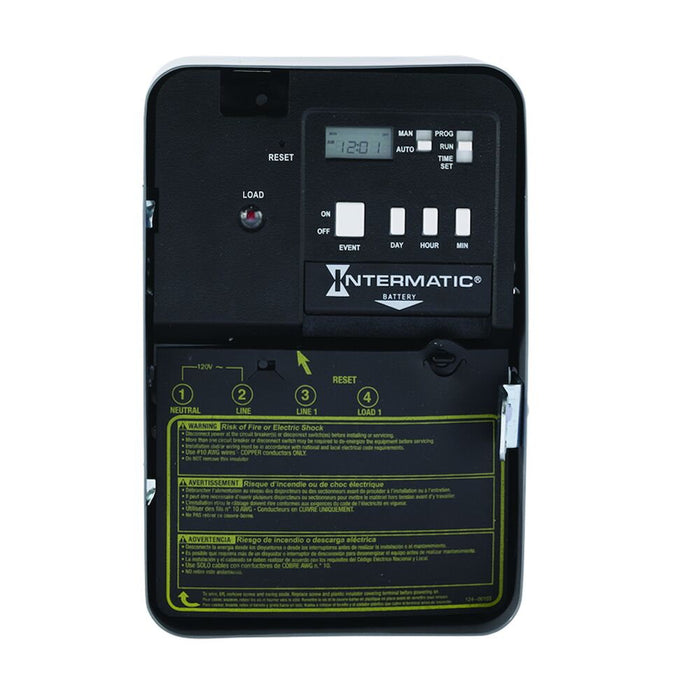

Intermatic EH10 Electronic Water Heater Time Switch

Instructions

The EH Series Electronic Time Switches provide control for electric water heaters with to-the-minute accuracy in programming and time-keeping. The use of a water heater timer allows the customer to shift electricity use to "off-peak" time periods to reduce utility costs. These time switches can be programmed for repeat daily scheduling, 5-day work week scheduling, weekend scheduling or individual day scheduling. Models are available for both 120 and 240 VAC applications.

Features:

• 42 ON/OFF events per week
• 7-day scheduling
• To-the-minute programming and time-keeping accuracy
• External override switch
• LED load indicator
• Replaceable battery backup

Applications:

• Agriculture Feeders
• Greenhouse Misting Control
• Water Heater Control

Specifications:

• Backup Type: Battery
• Switch Type: SPST
• Mechanism Type: Digital/Electrical
• Backup Protection Time: 3 years
• Category: Specialty Time Switches Web
• Rating: General Purpose
• Timer Type: Digital
• Maximum ON/OFF Operations: 42
• Enclosure Type: Indoor type 1 metal
• Warranty Period: 1-Year limited
• Battery Service Type: Replaceable
• Has Override Switch: Yes
• Switch Rating For EH10: 30 A Inductive, 30 A Resistive, 5 A Tungsten, 1 HP, 120 VAC, 60 Hz
• Watts: 3600

Backup Type
Battery Color Gray
MaximumOnOffOperations 42
Number Of Circuits 1
Switch Type SPST
Enclosure Type Indoor type 1 metal
Maximum ON/OFF Times 1min
OnOffOperations 42
Backup Protection Time 3 years
Warranty Period 1-Year limited
Battery Service Type Replaceable
Battery Type AA
Body Material Metal
CAProp65Message
Please see the Warning @ www.P65Warnings.ca.gov
Country Of Origin China
General Purpose (NC) 30 A
General Purpose (NC) Range(s) 30 A
Inductive (NO) 30 A
Inductive Load Ratings NC Ranges 30 A
Knockout Dimensions Back (1) combination 1/2" - 3/4"
Knockout Dimensions Bottom (2) combination 1/2" - 3/4"
Material Metal
Motor Load Ratings NC Ranges 30 A
Resistive (NC) Range(s) 30 A
RoHS Certification No
Wire Size Min #10 AWG
Operating Temperature Max (°C) 40
Operating Temperature Max (°F) 104
Operating Temperature Min (°C) -40
Operating Temperature Min (°F) -40

Product Depth (in) 3
Product Depth (mm) 76.2
Product Height (in) 7.5
Product Height (mm) 190.5
Product Width (in) 5.08
Product Width (mm) 129.032
