Instructions

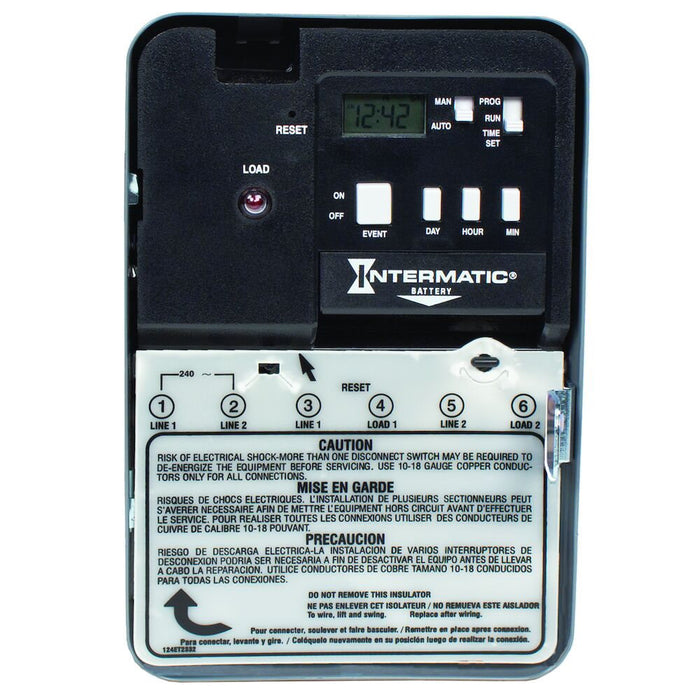

The EH Series Electronic Time Switches provide control for electric water heaters with to-the-minute accuracy in programming and time-keeping. The use of a water heater timer allows the customer to shift electricity use to "off-peak" time periods to reduce utility costs. These time switches can be programmed for repeat daily scheduling, 5-day work week scheduling, weekend scheduling or individual day scheduling. Models are available for both 120 and 240 VAC applications.

Features:

  • 42 ON/OFF events per week
  • 7-day scheduling
  • To-the-minute programming and time-keeping accuracy
  • External override switch
  • LED load indicator
  • Replaceable battery backup

Applications:

  • Agriculture Feeders
  • Greenhouse Misting Control
  • Water Heater Control

Specifications:

  • Backup Type: Battery
  • Maximum ON/OFF Operations: 42
  • Enclosure Type: Indoor type 1 metal
  • Warranty Period: 1-Year limited
  • Battery Service Type: Replaceable
  • Has Override Switch: Yes
  • Switch Rating For EH40: 30 A Inductive, 30 A Resistive, 5 A Tungsten, 1 1/2 HP, 240 VAC, 60 Hz
  • Watts: 7200
  • Input Voltage Range(s): 240VAC
  • Switch Type: DPST
  • Mechanism Type: Digital/Electrical
  • Backup Protection Time: 3 years
  • Category: Specialty Time Switches Web
  • Rating: General Purpose
  • Timer Type: Digital

    Backup Type Battery
    Input Voltage Range(s) 240 VAC
    MaximumOnOffOperations 42
    Mechanism Type Digital/Electrical
    Switch Type DPST
    Enclosure Type Indoor type 1 metal
    Backup Protection Time 3 years
    Warranty Period 1-Year limited
    Battery Service Type Replaceable
    CAProp65Message
    Please see the Warning @ www.P65Warnings.ca.gov
    Country Of Origin China
    Has Override Switch Yes
    Knockout Dimensions Back (1) combination 1/2" - 3/4"
    Knockout Dimensions Bottom (2) combination 1/2" - 3/4"
    Switch Rating For EH40 30 A Inductive, 30 A Resistive, 5 A Tungsten, 1 1/2 HP, 240 VAC, 60 Hz
    Watts 7200

    Unit Carton Height (in) 8.25
    Unit Carton Length (in) 5.5
    Unit Carton Weight (lb) 0
    Unit Carton Width (in) 3.5
