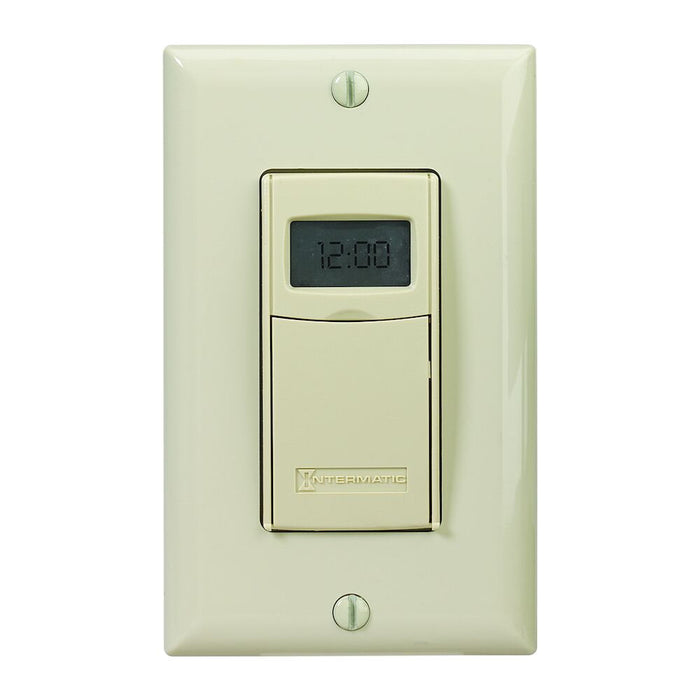

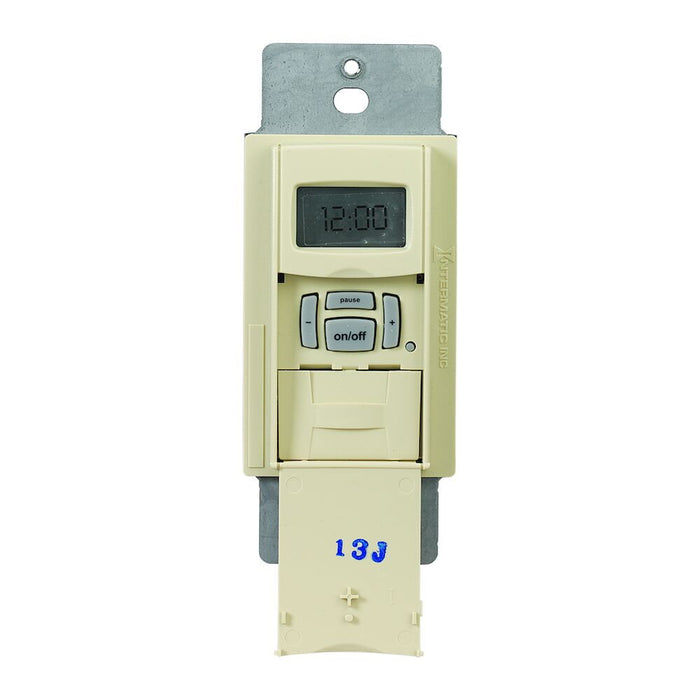

Intermatic EI400C Electronic Countdown Timer, Programmable, 120-277 VAC, 50/60 Hz, 1 Second to 24 Hours, Ivory
Offering a programmable countdown time between one second and 24 hours, this versatile timer can handle any application, regardless of load type. No neutral connection is required. *NOTE: Not for use with sunlamps, saunas, or loads that could cause personal injury if timed incorrectly.
Features:
- Programmable countdown time interval from one second to 24 hours
- Settings stored in non-volatile memory
- Optional audible and/or visual warning of impending load switch OFF
- Lockable settings help avoid unintended changes
- Single-pole or 3-way switch compatible installation
- Incandescent/fluorescent/CFL/LED compatible
- Isolated switch allows timer to be used with any load type including AC and DC loads
- Replaceable CR2 lithium battery provides up to three years of operation
- No neutral wire connection enables easy retrofitting and quicker installation
- 24-hour programming allows for continuous operation
Applications:
Specifications:
- Backup Type: Battery
- Input Voltage Range(s): 120-277 VAC, 50/60 Hz
- Wiring Configurations: 3-Way, Single
- Countdown Time: 1 Sec, 24 hrs
- Time Presets: Programmable
- Application Compatibilities: CFL, Fluorescent, Incandescent, LED
- Ballast Fluorescent: 16 A, 1920-4432 VA, 120-277 VAC
- Battery Type: CR2 Lithium
- DC loads: 4 A, 12 VDC; 2 A, 28 VDC
- Inductive Load Ratings Ranges: 16 A, 120-277 VAC, 50/60 Hz
- Motor Three Phase Ranges: 1 HP, 120 VAC, 50/60 Hz; 2 HP, 240 VAC, 50/60 Hz
- Tungsten (Incandescent) Range(s): 1800 W, 120 VAC; 1248-1662 W, 208-277 VAC
- Product Depth (in): 1.1875
- Product Height (in): 4.125
- Product Width (in): 1.75
- Color: Ivory
- Operation Mode: Countdown
- Wall Plate Configurations: Single-Gang
- Mechanism Type: Digital/Electrical
- Warranty Period: 5-Year limited
- Backup Protection Time: 3 years
- Battery Service Type: Replaceable
- Category: Electronic Countdown Timers Web
- Inductive: 16 A, 120 VAC, 50 Hz, 16 A, 120 VAC, 60 Hz, 16 A, 208 VAC, 50 Hz, 16 A, 208 VAC, 60 Hz, 16 A, 240 VAC, 50 Hz, 16 A, 240 VAC, 60 Hz, 16 A, 277 VAC, 50 Hz, 16 A, 277 VAC, 60 Hz
- Motor (Three-Phase): 1 HP, 120 VAC, 50 Hz, 1 HP, 120 VAC, 60 Hz, 2 HP, 240 VAC, 50 Hz, 2 HP, 240 VAC, 60 Hz
- Resistive Heater: 20 A, 2400-5540 W, 120-277 VAC
Backup Type: Battery
Input Voltage Range(s): 120-277 VAC, 50/60 Hz
Wiring Configurations: 3-Way, Single
Countdown Time: 1 Sec, 24 hrs
Time Presets: Programmable
Application Compatibilities: CFL, Fluorescent, Incandescent, LED
Ballast Fluorescent: 16 A, 1920-4432 VA, 120-277 VAC
Battery Type: CR2 Lithium
DC loads: 4 A, 12 VDC; 2 A, 28 VDC
Inductive Load Ratings Ranges: 16 A, 120-277 VAC, 50/60 Hz
Motor Three Phase Ranges: 1 HP, 120 VAC, 50/60 Hz; 2 HP, 240 VAC, 50/60 Hz
Tungsten (Incandescent) Range(s): 1800 W, 120 VAC; 1248-1662 W, 208-277 VAC
Color: Ivory
Operation Mode: Countdown
Wall Plate Configurations: Single-Gang
Mechanism Type: Digital/Electrical
Warranty Period: 5-Year limited
Backup Protection Time: 3 years
Battery Service Type: Replaceable
Category: Electronic Countdown Timers Web
Inductive: 16 A, 120 VAC, 50 Hz, 16 A, 120 VAC, 60 Hz, 16 A, 208 VAC, 50 Hz, 16 A, 208 VAC, 60 Hz, 16 A, 240 VAC, 50 Hz, 16 A, 240 VAC, 60 Hz, 16 A, 277 VAC, 50 Hz, 16 A, 277 VAC, 60 Hz
Motor (Three-Phase): 1 HP, 120 VAC, 50 Hz, 1 HP, 120 VAC, 60 Hz, 2 HP, 240 VAC, 50 Hz, 2 HP, 240 VAC, 60 Hz
Resistive Heater: 20 A, 2400-5540 W, 120-277 VAC
