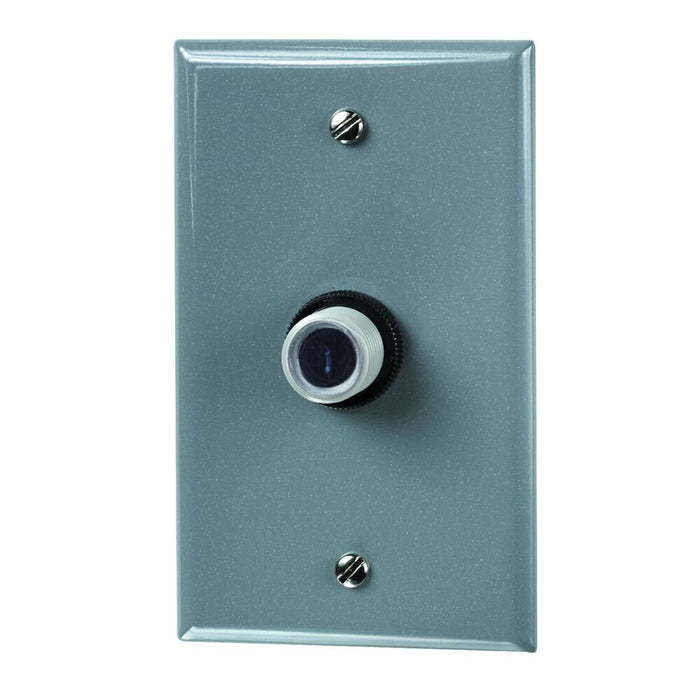

Intermatic EK4336S NightFox™ Wall Mount Electronic Photocontrol, 120-277 V

Specifications | Instructions

NightFox™ electronic photocontrols permanently install on standard single-gang in-wall boxes. Standard wall plate included. Ideal for LED fixtures with long-life expectations.

Features:

• Non-drift silicon light sensor with IR filter
• DC relay with zero-crossing circuitry for extended life
• Conformal coated PCB
• 15-year design life
• Exceeds 10,000 ON/OFF switching cycles
• Fail ON mode
• Ideal for single or multifixture HID and LED installations (up to 1,650 W @ 277 VAC)
• 255 J MOV surge protection element
• Fits standard single-gang in-wall electrical boxes
• Wall Plate is included

Applications:

• Outdoor Lighting Control


Specifications:

nput Voltage Range(s) 120-277 VAC, 50/60 Hz
Usage Environments Outdoor
Electronic Ballast 6 A, 120 VAC, 50 Hz, 6 A, 120 VAC, 60 Hz, 6 A, 208 VAC, 50 Hz, 6 A, 208 VAC, 60 Hz, 6 A, 240 VAC, 50 Hz, 6 A, 240 VAC, 60 Hz, 6 A, 277 VAC, 50 Hz, 6 A, 277 VAC, 60 Hz
Photocontrol Style In-Wall
Surge Protection Technology 255 J MOV, 5,000 A Surge
Warranty Period 8-Year limited
Wiring Option Wire leads
Application Compatibilities HID, Incandescent, LED
Activation Off 4.5 fc
Activation On 1.5 fc
Ballast Fluorescent 1800 VA
Ballast Fluorescent Ranges 1800 VA
Category Fixed Mount Electronic Photocontrols Web
Cover Color Gray
Electronic Ballast Load Ratings Ranges 6 A, 120-277 VAC, 50/60 Hz
Fail Mode ON
Housing Material Polycarbonate
Photo Control Switch Type Relay
Photocell Type Silicon Diode
Photocontrol Sensor Location Front
Photocontrol Type Electronic
RoHS Certification Yes
Sensor Time Delay Instant ON; 2 sec to 5 sec OFF
Tungsten (NO) 1000 W
Tungsten Range(s) 1000 W
Wire Size Max #18 AWG
Operating Temperature Max (°C) 70
Operating Temperature Max (°F) 158
Operating Temperature Min (°C) -40
Operating Temperature Min (°F) -40

Product Depth (in) 1 1/4
Product Depth (mm) 31.8
Product Height (in) 2 1/4
Product Height (mm) 57.2
Product Width (in) 1 5/16
Product Width (mm) 33.3
