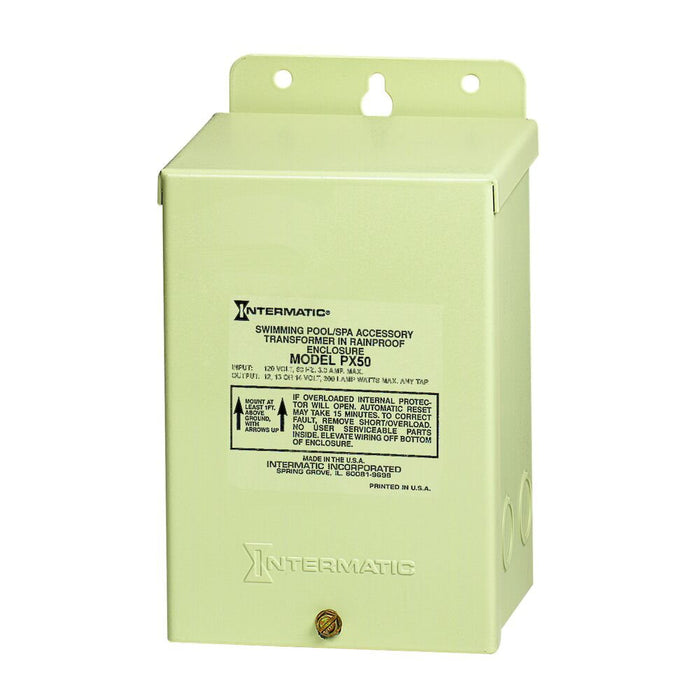

Intermatic - PX50 - 50 W Pool & Spa Safety Transformer, Beige Steel Enclosure

Intermatic - PX50 - 50 W Pool & Spa Safety Transformer, Beige Steel Enclosure

by Intermatic
SKU PX50
Sold out
$ 101.37 - $ 101.37
$ 101.37
$ 101.37 - $ 101.37
$ 101.37

Install Manual

Intermatic PX50 50 W Pool & Spa Safety Transformer, Beige Steel Enclosure, Input 120V, Output 12,13,14 V

These safety transformers are specifically designed to supply 12-14 VAC and are suitable for direct connection to underwater pool/spa lights. A grounded shield between the primary and secondary winding assures safe operation. Built-in circuit protection will disconnect power to the transformer in case of an overload.

Features:

  • Mounting brackets on the top and bottom
  • Built-in circuit protection disconnects power temporarily in case of overload
  • Complies with NEC Code 680.23 requirements forunderwater luminaries

Applications:

  • Landscape Lighting
  • Underwater Lighting

Specifications:

Input Voltage Range(s) .5 A, 120 VAC, 60 Hz Enclosure Type 3R Beige metal
Transformer Output Voltage 12 VAC, 13 VAC, 14 VAC Maximum Power Consumption (W) 50 W
Warranty Period 1-Year limited Knockout Dimensions Back (2) combination 1/2" - 3/4"
Knockout Dimensions Bottom (4) combination 1/2" - 3/4" Knockout Dimensions Left (2) combination 1/2" - 3/4"
Knockout Dimensions Right (2) combination 1/2" - 3/4" Transformer Input Voltage 5 A, 120 VAC, 60 Hz
Transformer Output Voltage 12, 13, 14 VAC Product Depth (in) 4.5
Product Depth (mm) 114.3 Product Height (in) 7.25
Product Height (mm) 184.2 Product Width (in) 5.25
Product Width (mm) 133 Unit Carton Height (in) 7.88
Unit Carton Length (in) 5.69 Unit Carton Weight (lb) 5.45
Unit Carton Width (in) 4.56


Input Voltage Range(s) .5 A, 120 VAC, 60 Hz Enclosure Type 3R Beige metal
Transformer Output Voltage 12 VAC, 13 VAC, 14 VAC Maximum Power Consumption (W) 50 W
Warranty Period 1-Year limited Knockout Dimensions Back (2) combination 1/2" - 3/4"
Knockout Dimensions Bottom (4) combination 1/2" - 3/4" Knockout Dimensions Left (2) combination 1/2" - 3/4"
Knockout Dimensions Right (2) combination 1/2" - 3/4" Transformer Input Voltage 5 A, 120 VAC, 60 Hz
Transformer Output Voltage 12, 13, 14 VAC Product Depth (in) 4.5
Product Depth (mm) 114.3 Product Height (in) 7.25
Product Height (mm) 184.2 Product Width (in) 5.25
Product Width (mm) 133 Unit Carton Height (in) 7.88
Unit Carton Length (in) 5.69 Unit Carton Weight (lb) 5.45
Unit Carton Width (in) 4.56

Product Depth (in) 4.5
Product Height (in) 7.25
Product Width (in) 5.25
