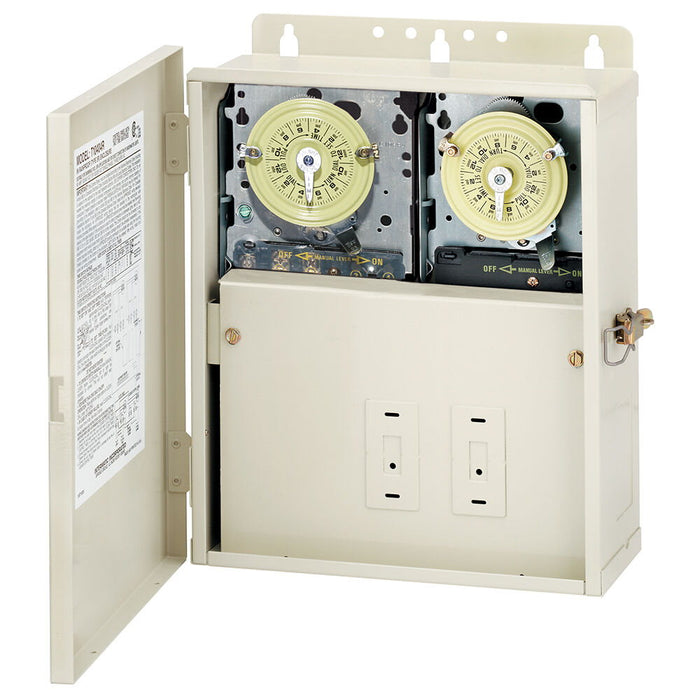

Intermatic - T10604R - Control Panel with T106M & T104M Mechanisms

Install Manual

Can be used as a power center only, or add mechanisms or wiring devices for complete control systems.

Features:

• Available with one or two heavy-duty time switch mechanisms
• Accepts any combination of PF1000M, P1403ME, P1353ME, P4043ME, P4243ME, T100M or RC2000M Series mechanisms
• Load center dead front has two knockouts for switches or GFCIs and one on the side
• Wiring devices may be installed in these load centers with the use of Standoffs, sold separately below
• Control two-speed pumps with the T10604R

Applications:

• Distribution/Control Panel
• Motor Control
• Pump Control

Specifications:

Input Voltage Range(s) 208-277 VAC, 60 Hz Number Of Circuits 2
Resistive 40 A, 120 VAC, 60 Hz, 40 A, 208 VAC, 60 Hz, 40 A, 240 VAC, 60 Hz Switch Type SPDT/DPST
Enclosure Type Outdoor type 3R plastic Maximum Power Consumption (W) 3 W
Resistive Load Ratings Ranges 40 A, 120-240 VAC, 60 Hz Warranty Period 1-Year limited
Inductive 40 A, 120 VAC, 60 Hz, 40 A, 208 VAC, 60 Hz, 40 A, 240 VAC, 60 Hz Inductive Load Ratings Ranges 40 A, 120-240 VAC, 60 Hz
Knockout Dimensions Back (1) combination 1/2" - 3/4" and (1) 3/4" - 1" Knockout Dimensions Bottom (5) combination 1/2" - 3/4" and (2) combination 3/4" - 1"
Knockout Dimensions Left (1) combination 1/2" - 3/4" Knockout Dimensions Right (1) 1 3/4" x 2 3/4"
Mechanism Supply Voltage 240/240 VAC, 60 Hz Mechanisms T106M & T104M
Motor (Three-Phase) 2 HP, 24 FLA @ 120 VAC, 60 Hz, 5 HP, 28 FLA @ 240 VAC, 60 Hz Pilot Duty (NO) 1000 VA, 120 VAC, 60 Hz, 1000 VA, 208 VAC, 60 Hz, 1000 VA, 240 VAC, 60 Hz
Pilot Duty Load Ratings Ranges 1000 VA, 120-240 VAC, 60 Hz Tungsten (NO) 40 A, 120 VAC, 60 Hz, 40 A, 208 VAC, 60 Hz, 40 A, 240 VAC, 60 Hz
Tungsten Range(s) 40 A, 120-240 VAC, 60 Hz Operating Temperature Max (°C) 54
Operating Temperature Max (°F) 130 Operating Temperature Min (°C) -40
Operating Temperature Min (°F) -40 Product Depth (in) 4.75
Product Depth (mm) 120.7 Product Height (in) 12.875
Product Height (mm) 327 Product Width (in) 10.875
Product Width (mm) 276.2 Unit Carton Height (in) 5.63
Unit Carton Length (in) 13.81 Unit Carton Weight (lb) 11.376
Unit Carton Width (in) 12.06

Product Depth (in) 4.75
Product Height (in) 12.875
Product Width (in) 10.875
