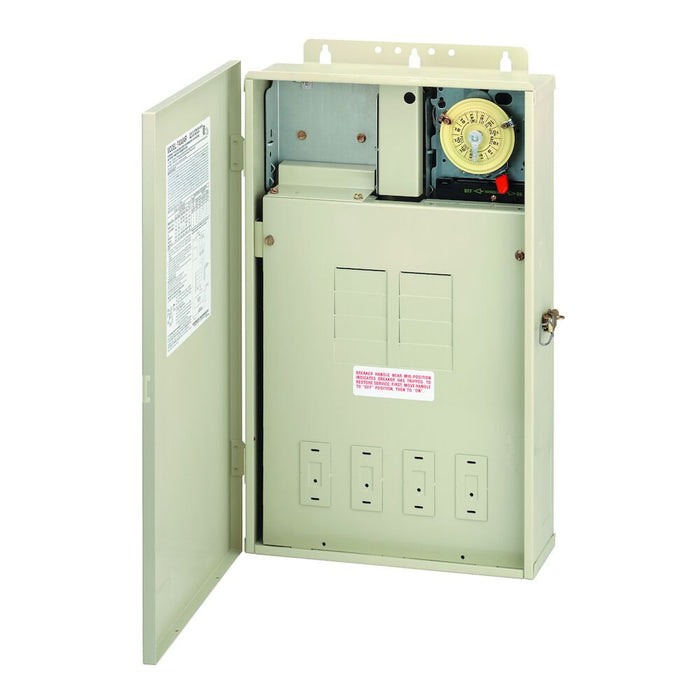

Intermatic - T40004R - 125 A Load Center with T104M Mechanism, 8-Breaker Spaces

SKU T40004R
Sold out
Original price $ 280.96 - Original price $ 280.96
Original price
$ 280.96
$ 280.96 - $ 280.96
Current price $ 280.96

Install Manual

Can be used as a Load Center only, or add mechanisms or wiring devices for complete control systems.

Features:

  • Eight breaker spaces
  • Reduces installation costs
  • All-in-one electrical load center eliminates the need for additional service panels
  • Accepts any combination of PF1000M Series, P1403ME, P1353ME, P4043ME, P4243ME, T100M Series or RC2000M Series mechanisms
  • Fully compatible with all electrical requirements for pool/spa installations
  • Load center dead front has four knockouts for switches or GFCIs (Note: T40000R4 has one knockout)
  • Wiring devices may be installed in these Load Centers with the use of Standoffs, sold separately

Applications:

  • Distribution/Control Panel
  • Motor Control
  • Pump Control

Specifications:

Input Voltage Range(s) 208-277 VAC, 60 Hz Number Of Circuits 1
Resistive 40 A, 120 VAC, 60 Hz, 40 A, 208 VAC, 60 Hz, 40 A, 240 VAC, 60 Hz Switch Type DPST
Enclosure Type Outdoor type 3R plastic Maximum Power Consumption (W) 3 W
Resistive Load Ratings Ranges 40 A, 120-240 VAC, 60 Hz Warranty Period 1-Year limited
Inductive 40 A, 120 VAC, 60 Hz, 40 A, 208 VAC, 60 Hz, 40 A, 240 VAC, 60 Hz Inductive Load Ratings Ranges 40 A, 120-240 VAC, 60 Hz
Knockout Dimensions Back (4) 1/2" - 3/4", (2) 3/4" - 1" Knockout Dimensions Bottom (5) 1/2" - 3/4", (4) 1/2", (2) 3/4" - 1", 1 1/4"
Knockout Dimensions Left (2) 1/2" - 3/4" Knockout Dimensions Right (1) 1 3/4" x 2 3/4"
Load Center Rating Display 125 A MAX, 120-240 VAC, Single Phase, 60 Hz Load Center Ratings 125 A, 120 VAC, 60 Hz, 125 A, 208 VAC, 60 Hz, 125 A, 240 VAC, 60 Hz, Single Phase
Mechanism Supply Voltage 240 VAC, 60 Hz Mechanisms (1) T104M
Motor (Three-Phase) 2 HP, 24 FLA @ 120 VAC, 60 Hz, 5 HP, 28 FLA @ 240 VAC, 60 Hz Pilot Duty (NO) 1000 VA, 120 VAC, 60 Hz, 1000 VA, 208 VAC, 60 Hz, 1000 VA, 240 VAC, 60 Hz
Pilot Duty Load Ratings Ranges 1000 VA, 120-240 VAC, 60 Hz Tungsten (NO) 40 A, 120 VAC, 60 Hz, 40 A, 208 VAC, 60 Hz, 40 A, 240 VAC, 60 Hz
Tungsten Range(s) 40 A, 120-240 VAC, 60 Hz Operating Temperature Max (°C) 54
Operating Temperature Max (°F) 130 Operating Temperature Min (°C) -40
Operating Temperature Min (°F) -40 Product Depth (in) 4.75
Product Depth (mm) 120.7 Product Height (in) 20.875
Product Height (mm) 530.2 Product Width (in) 12.875
Product Width (mm) 327 Unit Carton Height (in) 6.5
Unit Carton Length (in) 22 Unit Carton Weight (lb) 20.358
Unit Carton Width (in) 14


Input Voltage Range(s) 208-277 VAC, 60 Hz Number Of Circuits 1
Resistive 40 A, 120 VAC, 60 Hz, 40 A, 208 VAC, 60 Hz, 40 A, 240 VAC, 60 Hz Switch Type DPST
Enclosure Type Outdoor type 3R plastic Maximum Power Consumption (W) 3 W
Resistive Load Ratings Ranges 40 A, 120-240 VAC, 60 Hz Warranty Period 1-Year limited
Inductive 40 A, 120 VAC, 60 Hz, 40 A, 208 VAC, 60 Hz, 40 A, 240 VAC, 60 Hz Inductive Load Ratings Ranges 40 A, 120-240 VAC, 60 Hz
Knockout Dimensions Back (4) 1/2" - 3/4", (2) 3/4" - 1" Knockout Dimensions Bottom (5) 1/2" - 3/4", (4) 1/2", (2) 3/4" - 1", 1 1/4"
Knockout Dimensions Left (2) 1/2" - 3/4" Knockout Dimensions Right (1) 1 3/4" x 2 3/4"
Load Center Rating Display 125 A MAX, 120-240 VAC, Single Phase, 60 Hz Load Center Ratings 125 A, 120 VAC, 60 Hz, 125 A, 208 VAC, 60 Hz, 125 A, 240 VAC, 60 Hz, Single Phase
Mechanism Supply Voltage 240 VAC, 60 Hz Mechanisms (1) T104M
Motor (Three-Phase) 2 HP, 24 FLA @ 120 VAC, 60 Hz, 5 HP, 28 FLA @ 240 VAC, 60 Hz Pilot Duty (NO) 1000 VA, 120 VAC, 60 Hz, 1000 VA, 208 VAC, 60 Hz, 1000 VA, 240 VAC, 60 Hz
Pilot Duty Load Ratings Ranges 1000 VA, 120-240 VAC, 60 Hz Tungsten (NO) 40 A, 120 VAC, 60 Hz, 40 A, 208 VAC, 60 Hz, 40 A, 240 VAC, 60 Hz
Tungsten Range(s) 40 A, 120-240 VAC, 60 Hz Operating Temperature Max (°C) 54
Operating Temperature Max (°F) 130 Operating Temperature Min (°C) -40
Operating Temperature Min (°F) -40 Product Depth (in) 4.75
Product Depth (mm) 120.7 Product Height (in) 20.875
Product Height (mm) 530.2 Product Width (in) 12.875
Product Width (mm) 327 Unit Carton Height (in) 6.5
Unit Carton Length (in) 22 Unit Carton Weight (lb) 20.358
Unit Carton Width (in) 14

Product Depth (in) 4.75
Product Height (in) 20.875
Product Width (in) 12.875
