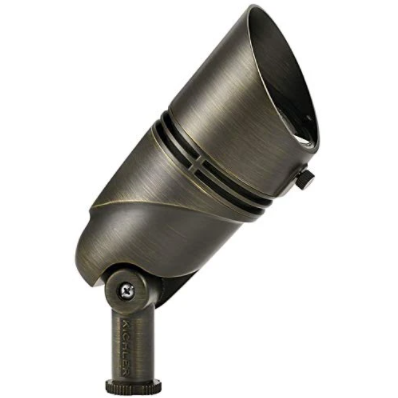

Kichler 16020CBR30 Landscape LED Adjustable Lumen Large Accent - 60 Degree Flood, Centennial Brass

Spec Sheet

Centennial Brass presents a natural vintage look and feel with brown and gold undertones that will patina over time. These solid, thick-walled, cast brass fixtures are ideal for most environments, including coastal.

OVERVIEW The VLO Accent Light is unsurpassed in both style and performance. The VLO combines advanced LED, Driver & Optic technology with premium materials. A single fixture provides the installer the option to select three different lumen outputs reducing installation complexity and increasing infield versatility.

FEATURES

• High lumens in small body

• Variable lumen output

• Advanced optics provide superb center to edge uniformity •

Available beam angle: 60º

• Complete sealed system for improved reliability

• Advanced ESD protection (6 kV)

• IP66 rated

SPECIFICATIONS

Fixture Light Source Integrated LED

Number of LEDs 1 High Output COB

Color Temperature 2700K, 3000K

Color Rendering Index 80+

Beam Angles 60º

Binning 3 Step

Fixture can be used in UP or DOWN position

Input

Input Voltage Range 9 – 15V

AC or DC with no loss in light output

Input Frequency 47 – 63Hz

Input Current 2.55A Max @ 9VAC

Inrush Current 9A Max Efficiency > 70L/W @ 12VDC

Power Factor > 0.7 @ 15V

Output

Lumen Level 3 (max) 835

Lumen Level 2 (mid) 600

Lumen Level 1 (standard) 400 (factory setting)

Mechanical & Housing Specification

Length 6" / 154 mm

Width 2.7" / 69 mm

Height 4.2" / 106 mm

Housing Material Brass

Housing Color & Surface CBR,

Weight Brass 48oz/ 1.4Kg
