King Innovation 61241 DryConn Medium Black/Gray Waterproof Connectors – 100-Canister
Brand: King Innovation | SKU: 61241
Product Overview
The 61241 is a 100-count canister of medium black/gray DryConn wire connectors for approved copper-wire splices. Each one-step connector contains dielectric silicone sealant to surround the splice. Choose this medium size by the exact conductor combination, then choose the canister quantity for the job.
King Innovation lists these sealed connectors for dry, damp, and wet locations when used in an enclosure. Direct-bury use is limited to circuits operating at 30 V or less, even though the connector also has a 600 V building-wire rating for its other listed uses.
Key Features
- 100 medium black/gray connectors per canister
- Silicone-filled one-step connection; pre-twisting is unnecessary
- UL listed sealed wire connector for approved wet-location use
- 600 V building-wire maximum; direct burial only at 30 V or less
Common Uses

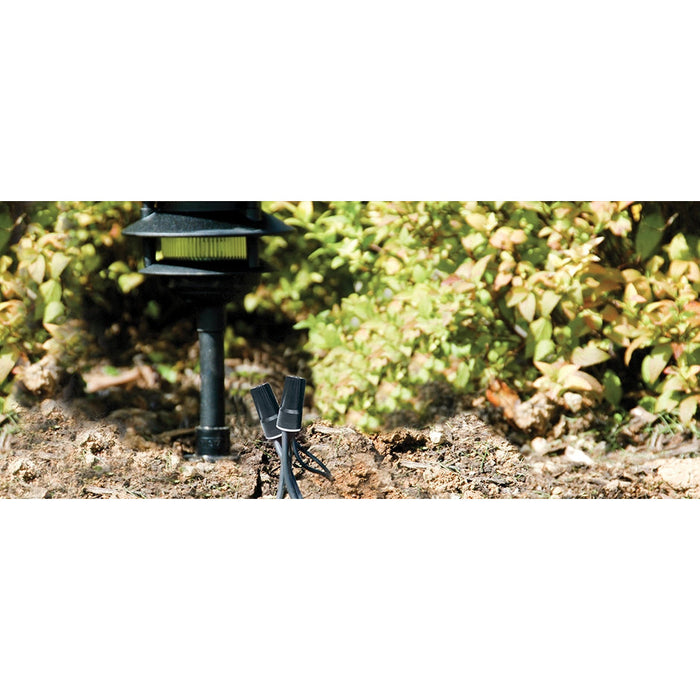

- Approved irrigation and landscape-lighting splices
- Wet or damp copper-wire connections in an enclosure
- Direct-bury low-voltage circuits at 30 V or less
Technical Specifications
- SKU: 61241; selling unit: 100 per canister
- Wire type: copper/copper; overall range #22–#8, subject to approved combinations
- 600 V maximum building wire; 1000 V signs or luminaires
- 105°C (221°F) connector rating; sealant range -45°F to 400°F
- UL designation: MWP
Dimensions
Connector size: 1 19/64 x 43/64 in. (32.94 x 17.07 mm).
Compatibility & Installation Notes
Turn off power first. Strip wires 5/8 in. Align conductors, twist the connector on firmly by hand, and wipe sealant around the opening. Do not over-torque or reuse. Check King Innovation’s listed wire combinations and local code. Above- or below-grade wet use requires an enclosure; direct burial is limited to 30 V or less.
Frequently Asked Questions
Can these be direct buried on a 600 V circuit?
No. The manufacturer’s current sheet limits direct-bury applications to 30 V or less. The 600 V figure is the maximum building-wire rating for other listed uses.
Will every conductor combination within #22–#8 fit?
No. The overall range describes the family; match the exact solid or stranded combination to King Innovation’s approved chart.
How many come in this canister?
SKU 61241 contains 100 connectors per canister.
Why Buy From Big Frog Supply
Big Frog Supply identifies the medium black/gray size and 100-count canister together, making it easier to order the correct DryConn format and quantity for the installation.
Model: 61241
DryConn medium black/gray sealed wire connector
Selling unit: 100 per canister
Copper/copper; overall wire range #22–#8; check approved combinations
600 V maximum building wire; 1000 V signs or luminaires
Direct burial at 30 V or less
UL listed sealed wire connector; MWP designation
105°C (221°F) connector rating
Silicone sealant: -45°F to 400°F
Connector size: 1 19/64 x 43/64 in. (32.94 x 17.07 mm)
Strip wires 5/8 in. Do not reuse.
