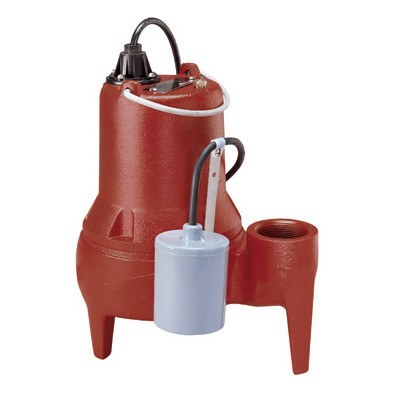

Liberty Pumps LE52A 1/2 HP Automatic Cast-Iron Sewage Pump, 208–230V
Brand: Liberty Pumps | SKU: LE52A
Product Overview
The Liberty Pumps LE52A is a 1/2 HP submersible sewage pump for moving wastewater through a compatible 2-inch discharge system. Its cast-iron housing and two-vane semi-open impeller can pass solids up to 2 inches. An included wide-angle float provides automatic switching when installed with adequate float clearance. Check basin size, power supply, and discharge requirements before ordering.
Key Features
- 1/2 HP, 208–230V oil-filled motor with thermal overload protection
- Automatic wide-angle float
- Heavy cast-iron construction with stainless-steel fasteners and rotor shaft
- 2 in. FNPT discharge and 2 in. spherical solids handling
- Standard 10 ft quick-connect power cord
Common Uses
- Compatible sewage ejector basins and wastewater pumping
- Automatic pump cycling with proper float travel
Technical Specifications
- Model: LE52A
- Motor: 1/2 HP, 208–230V, 6.8A
- Operation: Automatic
- Switch: wide-angle float
- Discharge: 2 in. FNPT
- Solids handling: 2 in. spherical
- Impeller: two-vane semi-open
- Standard cord: 10 ft
Dimensions
14 in. high.
Compatibility & Installation Notes
Ensure the wide-angle float can move without touching the basin wall or piping. Follow the LE50 Series installation manual for venting, check valve, discharge, and electrical connections. A 25 ft cord is a separately designated -2 model.
Frequently Asked Questions
Does LE52A include automatic control?
Yes, Liberty lists a wide-angle float switch for this model.
Why Buy Liberty Pumps LE52A from Big Frog Supply?
The LE52A provides a 208–230V cast-iron sewage pump with the included float needed for a carefully matched wastewater system.
