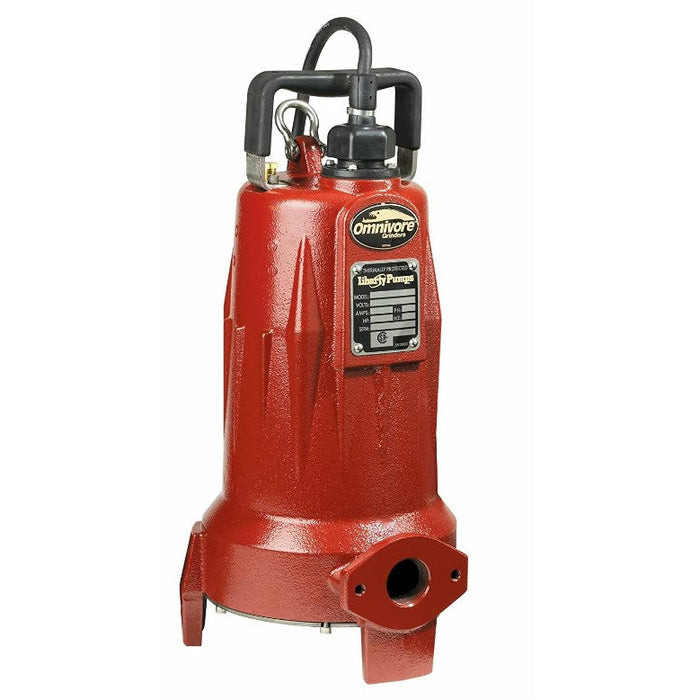

Liberty Pumps - LSG202M-C - 2 HP Submersible Grinder Pump - Less Capacitor

Specification | Installation

Liberty’s LSG-Series Omnivore^® grinders meet the demanding needs of commercial and residential sewage applications where difficult solids-handling ability is crucial. The LSG features patented V-Slice^® cutter technology. This industry-leading design, made of 440 hardened stainless steel, shears rags, jeans, wipes, diapers, sanitary napkins and other debris into a fine slurry. Applications include individual or groups of homes, motels, schools, shopping centers, lakefront developments and systems requiring pressure pumping of waste.

Other features include a one-piece cast iron volute and motor housing, quick-disconnect power cord for field serviceability and a 3 year limited warranty from last bill-of-sale.

Complete factory pre-assembled systems are available with multiple basin sizes and control panel options.

Features:

• 2 hp, heavy-duty motor – oil filled, thermally protected
• Upper and lower ball bearings
• One-piece uni-body cast iron housing
• 300 Series SS Rotor Shaft
• 316 Stainless steel impeller
• Dual seals – Upper seal is unitized durable silicon carbide. Lower seal is Viton double-lip. (Lower seal ensures that all debris is kept away from main seal.)
• Motor windings insulated to Class B (130 ?C)
• Advanced V-Slice cutting system made of hardened 440 stainless steel - Rockwell C 58
• Horizontal 1-1/4" FNPT Discharge
• Back vanes on impeller and spiraled bottom plate for superior solids clearing
• All stainless steel fasteners
• Clog-free volute design
• Designed for maximum heat dissipation and cool motor operating temperatures
• Solid state starting circuit - no mechanical relay coil
• 25' power cord with Quick-Disconnect
• Piggy back plug with wide angle float (on automatic model) eliminates need for expensive panel

Specifications:

• HP: 2
• Volts: 208 - 230
• Phase: 1
• HZ: 60
• Amps: 15
• Locked Rotor Amps: 53
• Speed (RPM): 3450
• Dishcharge: 1-1/4"
• Switch: No
• Weight: 84

HP: 2
Volts: 208 - 230
Phase: 1
HZ: 60
Amps: 15
Locked Rotor Amps: 53
Speed (RPM): 3450
Dishcharge: 1-1/4"
Switch: No
Weight: 84
