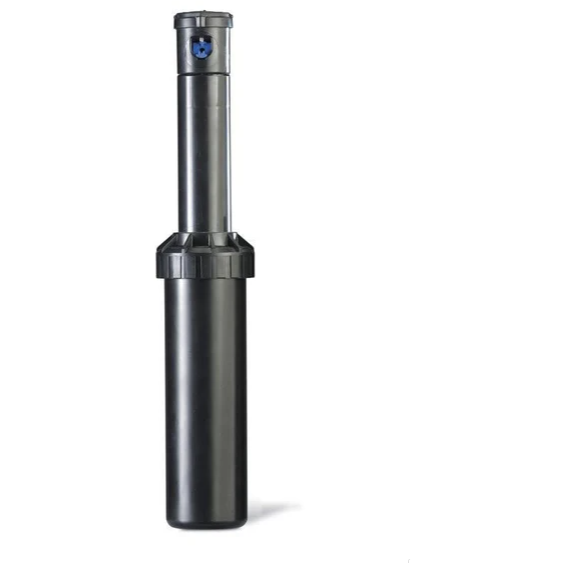

The 3500 Series Rotor is an easy to use short to mid-range 1/2" gear-drive rotor, offering value and convenience for residential applications. Utilizing a simple flat-bladed screwdriver, the 3500's arc adjustment is quick and easy.

This versatile rotor offers an attachable nozzle tree with six superior performing Rain Curtain nozzles and the convenience of reversing full and part circle operation (up to 360 degrees) in one unit. Plus, a nozzle removal feature and easily removable filter screen makes maintenance a breeze.

All of this and an affordable price makes the Rain Bird 3500 Series one rotor that is easy to use, easy to buy and tough to beat!
  • 4 in. part/full-circle pop-up rotor sprinkler
  • Top-adjust arc adjustment requiring only a flat-blade screwdriver
  • 40- 360° Arc Part-Circle arc rotation and reversing Full-Circle rotation in one
  • Attachable nozzle tree of six Rain Curtain™ nozzles
  • Radius adjustment screw allows up to 35% radius reduction without changing nozzles
  • Quick Check Arc/Fast Forward
  • Dual action, positive stop wiper seal protects internals from debris and assures positive pop-up and retraction
  • Self-adjusting stator does not require replacement when changing nozzles
  • Water-lubricated gear-drive design for durable, reliable operation
  • Easily removable filter screen
  • Nozzle removal feature
  • Arc setting factory preset at 180° for installation convenience

  • Rotor Series: 3500
  • Coverage Radius: 15-35 ft
  • Inlet: 1/2 in
  • Features: Gear Drive, Rain Curtain Nozzles
  • Pop-Up Height: 4 in
  • Specifications:
    • Precipitation rate: .37 to .72 inches per hour (9 to 18 mm/h)
    • Radius: 15 to 35 feet (4,6 to 10,7 m). Radius may be reduced up to 35% with Radius Reduction Screw
    • Pressure: 25-55 psi (1,7 to 3,8 Bars)
    • Flow Rate: .54 to 4.6 gpm (,12 to 1,04 m 3/h)
    • Reversing Full-and Part-circle adjustment 40° – 360°
    • Coverage Arc: 40° - 360° Reversing Full and Part-Circle

    More Information
    Model 3504PC
    Rotor Series 3500
    Coverage Radius 15-35 ft
    Inlet 1/2 in
    Features Gear Drive, Rain Curtain Nozzles
    Pop-Up Height 4 in
    Specifications
    Precipitation rate: .37 to .72 inches per hour (9 to 18 mm/h)

    Radius: 15 to 35 feet (4,6 to 10,7 m). Radius may be reduced up to 35% with Radius Reduction Screw

    Pressure: 25-55 psi (1,7 to 3,8 Bars)

    Flow Rate: .54 to 4.6 gpm (,12 to 1,04 m 3/h)

    Reversing Full-and Part-circle adjustment 40° – 360°

    Coverage Arc 40° - 360° Reversing Full and Part-Circle
