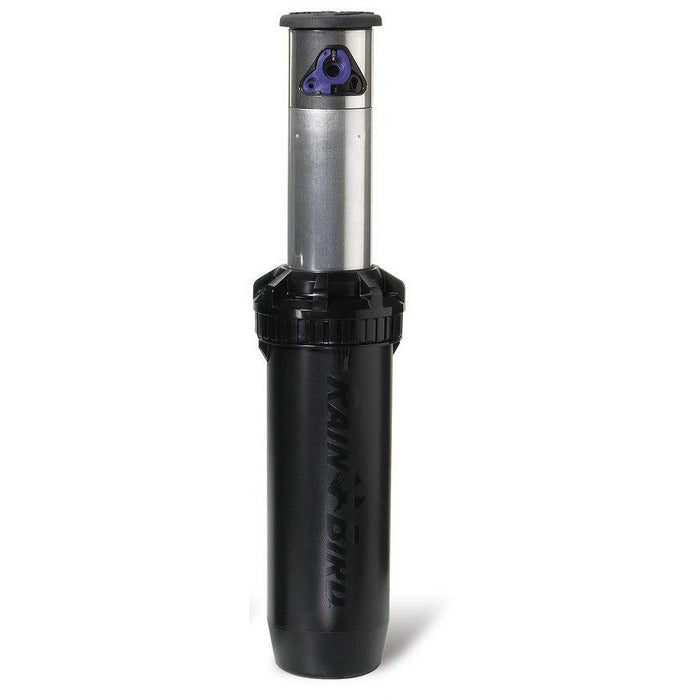

Rain Bird - F4PCSSHS Falcon 6504 High Speed Stainless Steel Rotor Pop-Up Sprinkler-No Nozzle

Rain Curtain™ nozzles maximize performance and coverage. A multi-function wiper seal and tapered riser keep the stem clear of debris, providing long-term protection. Plus, heavy-duty construction makes the Falcon 6504 one of the toughest rotors in the field.

The Falcon 6504 is ideal for large turf sites such as parks, athletic fields, cemeteries, schools and commercial sites with spacing up to 65 feet (19,8 m).

Additional features:

• Patented Rain Curtain™ nozzles have three ports for optimal long-range, mid-range, and close-in watering, for green grass even in the heat of summer.
• Nozzles are interchangeable from the front with no special tools.
• Self-adjusting stator does not require replacement when changing nozzles.
• Radius adjustment screw allows radius reduction up to 25% without changing nozzles.
• Small 2" (5,1 cm) exposed diameter reduces possibility of injury in play areas.
• Patented, pressure-activated wiper seal and tapered riser stem on both plastic and stainless steel models protect internals from debris to ensure positive pop-up and retraction.
• 4" (10,2 cm) pop-up height to center line of nozzle clears taller turfgrass.

Operating Range
• Precipitation Rate: 0.37 to 1.14 inches per hour (9 to 29 mm/h)
• Radius: 39 to 65 feet (11,9 to 19,8 m)
• Pressure - 30 to 90 psi (2,1 to 6,2 bar)
• Flow: 2.9 to 21.7 GPM (0,66 to 4,93 m3/h; 0,18 to 1,37 l/s)
Specifications
• 1” (26/34) female NPT or BSP threaded inlet
• SAM check device holds up to 10 feet (3,1 m) of head
• Rain Curtain nozzles: 04-black; 06-light blue; 08-dark green; 10-gray; 12-beige; 14-light green; 16-dark brown; 18-dark blue
• Nozzle outlet trajectory is 25°


Models
• F4-FC: Full-circle
• F4-PC: Part-circle
• F4-FC-NP: Full-circle, non-potable cover
• F4-PC-NP: Part-circle, non-potable cover
• F4-FC-SS: Full-circle, stainless steel
• F4-PC-SS: Part-circle, stainless steel
• F4-FC-SS-HS: Full-circle, stainless steel,
high speed rotation
• F4-PC-SS-HS: Part-circle, stainless steel,
high speed rotation
• F4-FC-SS-NP: Full-circle, stainless steel,
non-potable cover
• F4-PC-SS-NP: Part-circle, stainless steel,
non-potable cover

Dimensions
• Overall height: 81⁄2” (21,6 cm)
• Pop-up height: 4” (10,2 cm)
• Exposed surface diameter: 2” (5,1 cm)
