Spec Sheet
to prevent over-watering at the low-point in the zone, avoiding puddling and water draining from the dripline. It accepts Rain Bird Easy Fit Compression Fittings, XF Dripline Barbed Insert Fittings and other 17 mm barbed insert fittings.
Features:
-
Simple
- Rain Bird’s patent-pending 3.5 psi check valve technology keeps the dripline charged with water at all times, increasing uniformity of watering, and conserves water by eliminating the need to recharge the line at the beginning of each watering cycle
- Through the use of a proprietary tubing material, the XFCV Dripline with heavy-duty check valve is the most flexible dripline tubing in the industry, making it the easiest dripline to design with and install
- Rain Bird’s low-profile emitter design reduces in-line pressure loss, allowing longer lateral runs, simplifying design, and reducing installation time
- Variety of emitter flow rates, emitter spacing, and coil lengths provide design flexibility for on-surface areas with or without elevation changes
Made with Recycled Content
- All Rain Bird XF Dripline (XFD, XFS, XFCV, XFS-CV) qualify for LEED credit 4.2 because they contain at least 20% Polyethylene post-consumer recycled material by cost. These come in an assortment of coil sizes, flow rates, and emitter spacing
Reliable
- The pressure-compensating emitter design provides a consistent flow over the entire lateral length, ensuring higher uniformity for increased reliability in the pressure range of 20 to 60 psi (1.38 to 4.14 bar)
Durable
- Dual-layered tubing (brown over black) provides unmatched resistance to chemicals, algae growth, and UV damage
Grit Tolerant
- Rain Bird’s proprietary emitter design resists clogging by use of an extra wide flow path combined with a self-flushing action
Operating Range:
- Opening Pressure: 14.5 psi
- Pressure: 20 to 60 psi
- Flow rates: 0.6 and 0.9 gph available
- Temperature:
- Water: Up to 100°F (37.8° C)
- Ambient: Up to 125°F (51.7° C)
- Required Filtration: 120 mesh
Specifications:
- Dimensions:
- OD: 0.634" (16mm)
- ID: 0.536" (13.6mm);
- Thickness: 0.049" (1.2mm)
- Emitter Spacing:
- 12" (30.5 cm); 18' (45.7 cm)

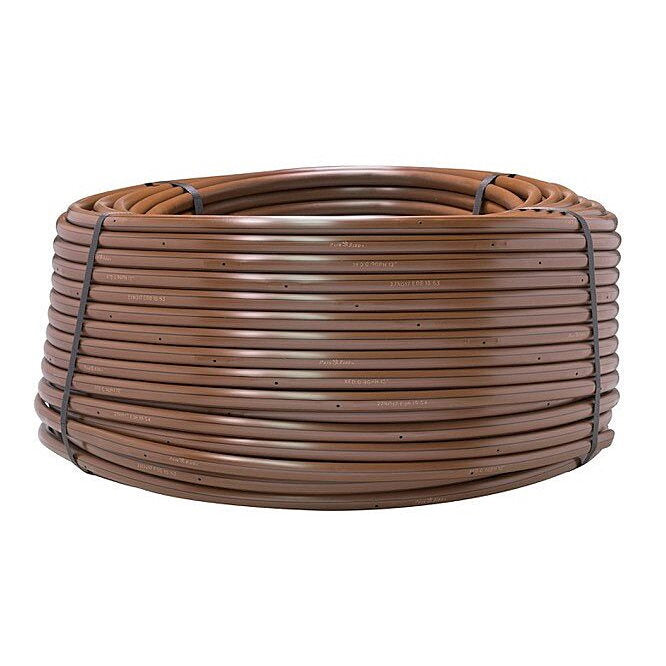

- Coil Length:
- 100' (30.5 m); 250' (76.2 m) and 500' (152.4 m)
- Coil Color: Brown
- Use with XF Dripline Insert Fittings, Rain Bird Easy Fit Compression Fittings, or Twist Lock Fittings
