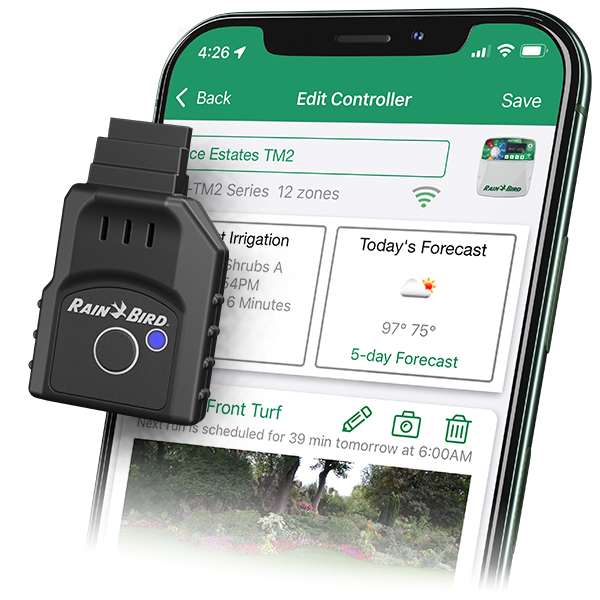

Add wireless access to a compatible Rain Bird controller without replacing the timer. LNK2WIFI plugs into the controller’s accessory port and connects through a 2.4 GHz WiFi network for supported app-based scheduling, manual watering and weather-related adjustments. This is one second-generation LNK2 module; the controller is sold separately.
Key Features
Direct plug-in connection to a compatible controller accessory port.
2.4 GHz WiFi and Bluetooth Low Energy hardware for supported pairing.
Supported app functions include remote scheduling, manual watering and notifications.
Multi-color indicator helps identify connection and setup status.
Common Uses
Adding connected control to a compatible residential or light commercial timer.
Replacing an older module after checking controller, app and firmware compatibility.
Technical Specifications
Model: LNK2WIFI; quantity: one module.
Controller examples: ESP-TM2, ESP-ME3, ESP-RZXe and compatible ESP-Me units manufactured after November 2, 2016.
Other supported families include ESP-LXME2 and ESP-LXIVM; app/platform and firmware requirements apply.
Electrical rating: 24–25.5 VAC, 50–60 Hz, 0.1 A; powered through the compatible controller.
Operating temperature: 14°F to 149°F.
Dimensions
Module dimensions: 1.13 inches wide x 1.83 inches high x 0.48 inch deep. These are module dimensions, not controller cabinet dimensions.
Compatibility & Installation Notes
Verify the controller’s compatibility and accessory port before ordering. Check WiFi signal at the cabinet, then follow the LNK2 setup guide and the app instructions for that controller. Remote access needs a working internet connection. Use the supported Rain Bird app and current firmware for the controller; availability of Rain Bird 2.0 and IQ functions varies by controller and platform. A phone using cellular data away from home is different from the required 2.4 GHz WiFi connection at the controller.
Over the years, a select few products have risen above the rest with their unparalleled performance. We're thrilled to share these gems with you. Whenever you spot the "From the Frog" badge, rest assured it's more than just a mark of quality—it's a symbol of our dedication and careful consideration in choosing the best for you. Let this badge be your guide to exceptional experiences, handpicked with thought and passion.
Frequently Asked Questions
Can LNK2WIFI connect to 5 GHz WiFi?
No. The module requires a 2.4 GHz WiFi network.
Does the module include an irrigation controller?
No. This listing supplies one LNK2 module for a compatible controller, sold separately.
Does LNK2 work with every ESP-Me controller?
No. ESP-Me compatibility requires units manufactured after November 2, 2016. Check older controllers before ordering.
Can I use the Rain Bird 2.0 app?
LNK2 hardware is required for supported Rain Bird 2.0 connections, but controller, platform and firmware support must also match. The original LNK1 module is not compatible with Rain Bird 2.0.
Why Buy from Big Frog Supply?
LNK2WIFI fits an upgrade where the existing controller is compatible and a 2.4 GHz network reaches the cabinet. The plug-in accessory format avoids replacing the timer, while second-generation LNK2 hardware supports a different app upgrade path from the original LNK1.
Model: LNK2WIFI; quantity: one module.
Controller examples: ESP-TM2, ESP-ME3, ESP-RZXe and compatible ESP-Me units manufactured after November 2, 2016.
Other supported families include ESP-LXME2 and ESP-LXIVM; app/platform and firmware requirements apply.
Network: 2.4 GHz IEEE 802.11 b/g/n, channels 1–11; not 5 GHz WiFi.
Bluetooth: v4.0 BLE.
Electrical rating: 24–25.5 VAC, 50–60 Hz, 0.1 A; powered through the compatible controller.
Operating temperature: 14°F to 149°F.
Module dimensions: 1.13 inches wide x 1.83 inches high x 0.48 inch deep. These are module dimensions, not controller cabinet dimensions.
