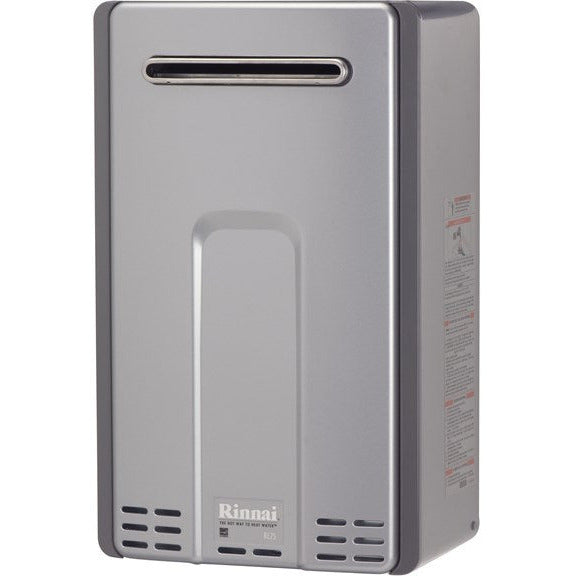

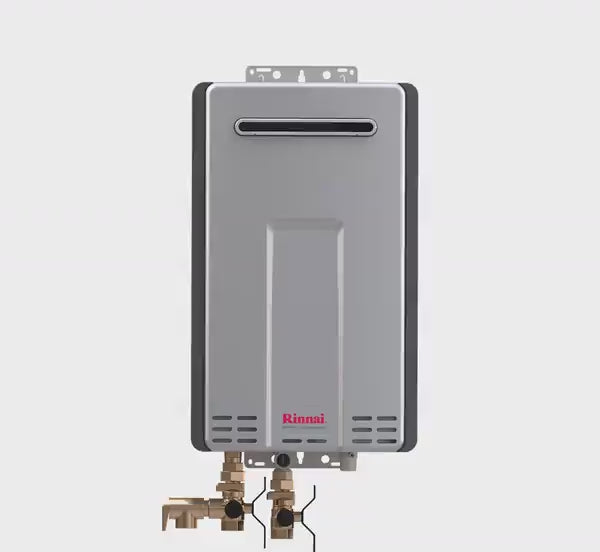

Rinnai RL75eP Propane Tankless Water Heater, 7.5 Gallons Per Minute

Spec Sheet   Install Manual

Features

• Energy Factor of .82 for both Natural Gas and Propane
• Certified for Installation in Manufactured (Mobile) Homes
• Enhanced scale detection lessens possibility of serious, long-term damage to unit
• Temperature lock function prevents accidental or unauthorized changes to water temperature
• Complies with South Coast Air Quality Management District 14 ng/J or 20 ppm NOx emission levels

Specifications

* It is recommended that a trained and qualified professional who has attended a Rinnai training class complete the installation. The warranty may be voided due to any improper installation.

— Installation and service must be performed by a licensed professional.

Installation Type Outdoor
Minimum/Maximum BTU 10,300 / 180,000 Natural Gas and Propane
Energy Factor 0.82 for Natural Gas and Propane
Temperature Range Residential: 98°F - 140°F (37°C - 60°C)
Commercial: 98°F - 160°F (37°C - 71°C)
Minimum Activation Rate 0.4 gpm (1.5 lpm)
Flow Rate (70° / 50° Temperature Rise) 4.3 / 6.0 gpm (16.3 / 22.7 lpm)
Hot Water Flow Rate Range 0.26 - 7.5 gpm (0.98 - 28.4 lpm)
Controllers Standard: MC-91-2US
Optional: MC-100-1, BC-100V-1, MC-195T-US, MCC-91-2
Ultra Lox NOx Yes
Warranty (Residential)* Limited 12-year on heat exchanger, 5-year on parts, 1-year on labor (5-year optional on labor)
Warranty (Commercial)* Limited 5-year on heat exchanger, 5-year on parts, 1-year on labor (2-year optional on labor)
Mobile Home Certified Yes
Valves Shipped in Box Yes
High Altitude Approved Up to 10,200 ft. (3,109 m)
Certifications AHRI and CSA
Venting Options N/A
Tankless Rack System (TRS/TRW) Compatible No
1/2" Gas Line Compatible Yes

Width: 14 Inches (355.6 mm)
Height: 23 Inches (584.2 mm)
Depth: 9 Inches (228.6 mm)
Weight 43.7 lbs (19.8 kg)
