Stiebel Eltron - SHC4MINITANK - 234046 SHC 4 Mini-Tank Electric Water Heater, 4 Gallon, 1300W, 120V, 12-5/8" W x 19-3/4 12-1/2" D

Spec Sheet Install Manual

Stiebel Eltron 23406 Details

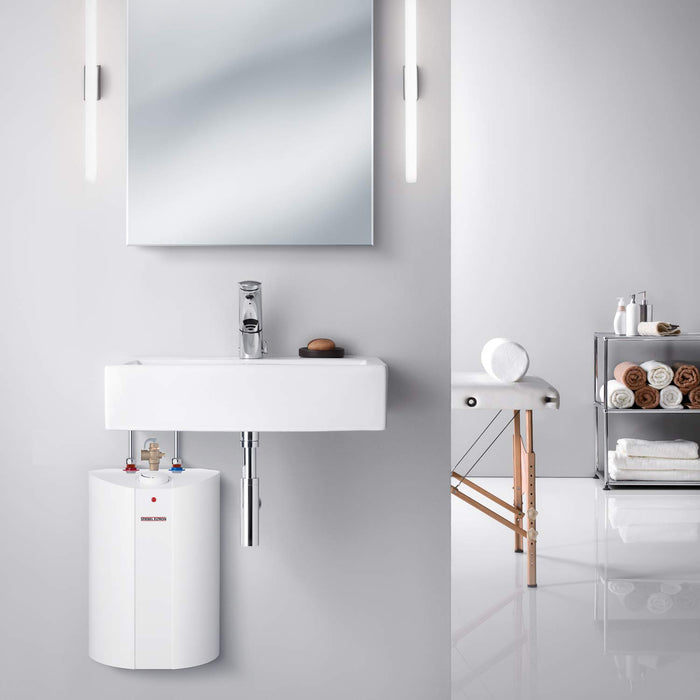

If you're storing 30+ gallons of hot water in a traditional water heater when your application requires much less than that, the Stiebel Eltron 234046 SHC 4 mini tank water heater provides you with a convenient, efficient alternative! Designed for installation at the point of use to provide hot water for hand washing or kitchen type applications either as a stand-alone hot water source or as a booster for a remote central tank, this 4 gallon tank mounts to a wall with the included bracket and simply plugs into the wall--no special hardwiring required. By using a smaller tank directly at the point-of-use, you not only save water by reducing long pipe runs from a central hot water tank, but also save energy by reducing standby heat loss associated with larger tanks! This glass-lined tank comes with a T&P valve for your convenience. The Stiebel Eltron 23406 SHC 4 multiple point-of-use water heater features a compact, lightweight construction with a sleek design that makes it easy to install almost anywhere!

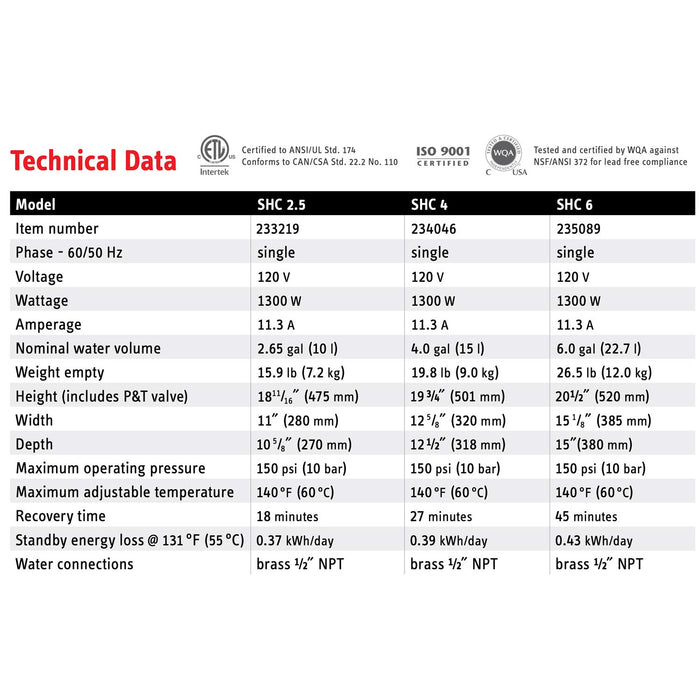

Overall Dimensions:

12.5 x 12.6 x 19.8 inches

Phase - 60/50 Hz: single;

Voltage: 120 V;

Wattage: 1300 W;

Amperage: 11.3 A;

Nominal water volume: 4.0 gal / 15 l;

Maximum operating pressure: 150 psi / 10 bar;

Maximum adjustable temperature: 140 degrees F / 60 degrees C;

Recovery time: 27 minutes;

Standby energy loss @ 131°F / 55°C: 0.39 kWh / day;

Water connections: black steel -1/2" NPT.

Overall Dimensions:
12.5 x 12.6 x 19.8 inches
