Product Overview
The Tomahawk Power TSCAR-8H + TSCAR8WB is an 8" gas-powered concrete scarifier bundle designed for surface cleaning, surface preparation, marking removal, paint removal, rust removal, oil and grease cleanup, rubber deposit removal, laitance removal, concrete texturing, and light surface profiling. This selected variant includes the TSCAR-8H Honda-powered scarifier with the 8" wire brush drum, making it a strong fit for cleaning and preparing concrete or asphalt surfaces without the same aggressive cutting profile as tungsten carbide cutters. Powered by a 5.5 HP Honda GX160 engine, this scarifier covers approximately 350–500 square feet per hour at 1/8" depth per pass and is built for contractors, maintenance crews, rental fleets, flooring installers, municipalities, and surface prep professionals.
Key Features:
-

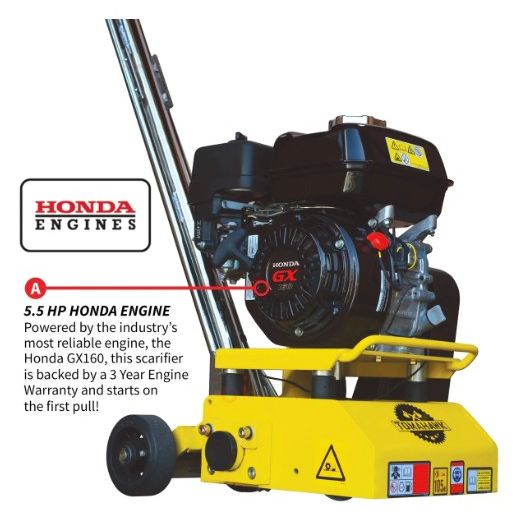

5.5 HP Honda GX160 Engine: Air-cooled 163cc Honda GX160 engine delivers reliable gas-powered performance for concrete scarifying, surface prep, and surface cleaning.
-

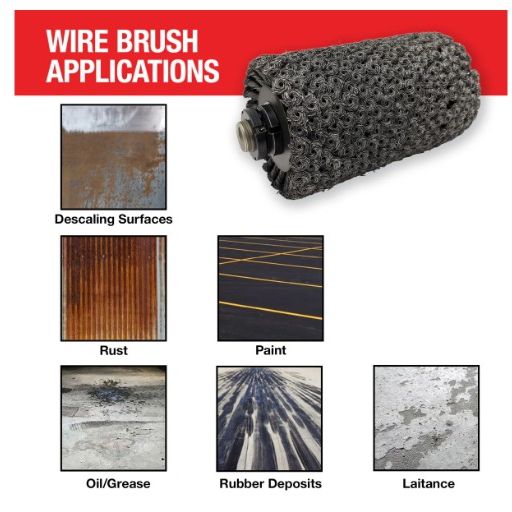

8" Wire Brush Drum: Selected 8" wire brush drum is included for removing rust, paint, oil, grease, rubber deposits, laitance, and surface buildup.
-
Smoother Cleaning Finish: Wire brush drum is designed for effective cleaning and smoother finishing compared with more aggressive cutter drums.
-
8" Working Width: Provides productive coverage for sidewalks, slabs, floors, asphalt markings, concrete edges, and repair areas.
-
350–500 ft²/hr Production Rate: Tomahawk lists scarifying performance at approximately 350–500 square feet per hour at 1/8" depth per pass.
-
1/8" Depth Per Pass: Supports controlled surface preparation, cleaning, light texturing, and surface profiling.
-
800–1,000 Linear Ft/Hr Line Removal: Tomahawk lists traffic line removal performance at approximately 800–1,000 linear feet per hour.
-

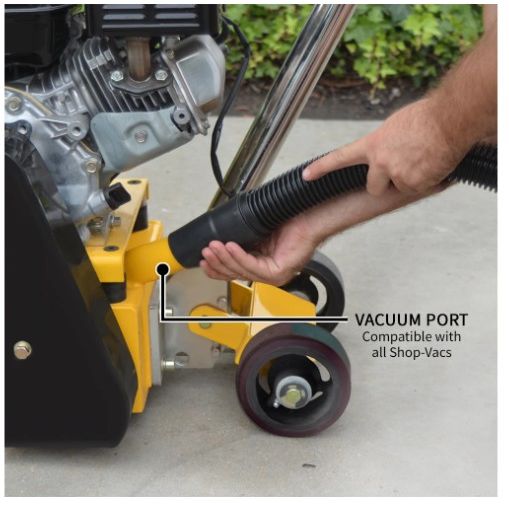

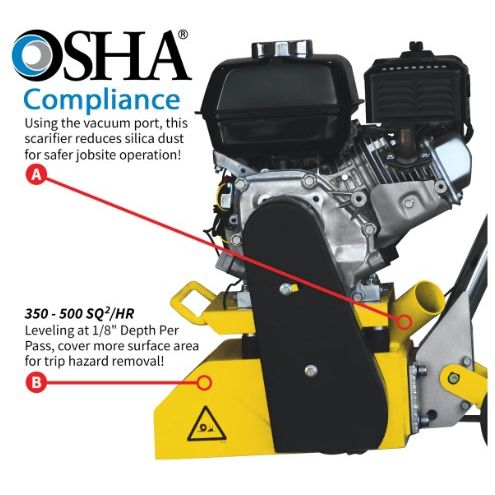

Vacuum Port for Dust Reduction: Vacuum port is designed to fit most bags and shop vacs to help reduce dust during operation.
-
Raised Engine Over Drum: Engine placement helps maximize drum-to-surface contact during scarifying.
-

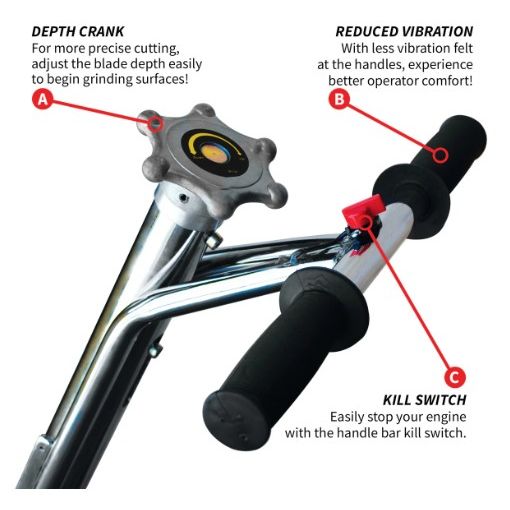

Simple Depth Crank: Blade depth crank allows the operator to adjust cutting depth for more precise surface removal.
-

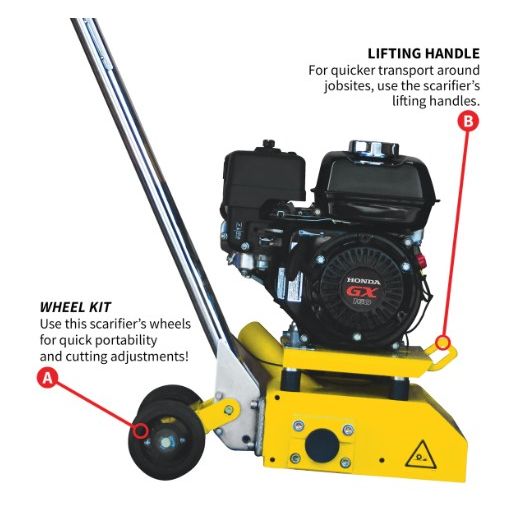

Front-Mounted Lifting Handle: Built-in lifting handle supports easier loading, unloading, and jobsite positioning.
-
Reduced Vibration: Designed to improve operator comfort during surface prep work.
-
Warranty Coverage: Tomahawk lists a 3-year engine warranty and 2-year product warranty.
Technical Specifications:
-
Model: TSCAR-8H + TSCAR8WB
-
Product Type: Gas Concrete Scarifier / Planer / Grinder with Wire Brush Drum
-
Brand: Tomahawk Power
-
Selected Variant: Add Blade Type: 8" Wire Brush
-
Scarifier Model: TSCAR-8H
-
Drum / Cutter Type: TSCAR8WB Wire Brush Drum
-
Engine: Honda GX160
-
Engine Type: Air-cooled Honda engine
-
Engine Displacement: 163cc
-
Power: 5.5 HP / 4.0 kW
-
Working Width: 8"
-
Production Rate: 350–500 ft²/hr
-
Depth Per Pass: 1/8"
-
Traffic Line Removal Rate: 800–1,000 linear ft/hr
-
Weight: 135 lb
-
Dust Control: Vacuum port designed to fit most bags and shop vacs
-
Engine Warranty: 3 year warranty
-
Product Warranty: 2 year warranty
-
Shipping Note: Oversized item; ships by freight truck
Package Includes:
-
8" Concrete Scarifier: Gas-powered concrete scarifier for surface preparation, cleaning, texturing, and removal work.
-
Honda GX160 Engine: Included 5.5 HP Honda engine.
-
TSCAR8WB Wire Brush Drum: Included 8" wire brush drum for cleaning rust, paint, oil, grease, rubber deposits, laitance, and surface buildup.
-
3-Year Engine Warranty: Tomahawk lists a 3-year warranty on the Honda engine.
-
Manuals & Guides: Follow Tomahawk’s operation and maintenance instructions for setup, wire brush drum installation, depth adjustment, dust control, operation, storage, and service.
Applications:
-
Rust Removal: Wire brush drum is suitable for cleaning rust from compatible surfaces.
-
Paint Removal: Helps remove paint, markings, and surface coatings from concrete or asphalt surfaces.
-
Oil & Grease Cleanup: Designed for surface cleaning where oil, grease, and residue need to be removed before repair or coating.
-
Rubber Deposit Removal: Useful for removing tire marks, rubber buildup, and surface deposits from concrete or asphalt.
-
Laitance Removal: Helps remove weak surface laitance from concrete before coating, repair, or surface treatment.
-
Surface & Marking Removal: Removes traffic markings, surface markings, parking lot lines, and painted concrete or asphalt markings.
-
Surface Leveling: Helps prepare uneven concrete, rough slabs, raised edges, and surface irregularities.
-
Sidewalk & Trip Hazard Repair: Can assist with surface preparation around raised sidewalk joints and uneven transitions before repair.
-
Floor Grinding & Prep: Prepares concrete floors for coatings, overlays, sealers, stains, flooring systems, and repair materials.
-
Traffic Line Removal: Useful for road, warehouse, parking lot, and pavement marking cleanup.
-
Concrete Edging: Helps prepare or clean concrete edges for repair and resurfacing.
-
Cleaning & Texturing Concrete and Asphalt: Removes buildup and roughens surfaces for better bonding or refinishing.
-
Non-Slip Finishes: Can help create or refresh textured surfaces for improved traction when used with the correct setup.
-
Removal of Coatings and Plaster: Useful for compatible coatings, plaster residue, and surface cleanup work.
Operation & Use Notes:
-
Drum Selection: This selected variant includes the 8" wire brush drum. Wire brush drums are best for cleaning rust, paint, oil, grease, rubber deposits, laitance, and surface buildup.
-
Not the Most Aggressive Drum: For deeper concrete milling, heavy coating removal, or non-skid surface cutting, tungsten carbide cage blades may be better suited.
-
Depth Adjustment: Use the scarifier’s depth crank to adjust cutting depth gradually. Avoid lowering the drum too aggressively in one pass.
-
Depth Per Pass: Tomahawk lists 1/8" depth per pass. Actual removal depends on surface hardness, coating thickness, wire brush condition, operator speed, and surface condition.
-
Production Rate: Tomahawk lists 350–500 ft²/hr at 1/8" depth per pass. Actual production will vary by surface material, tooling, and operator technique.
-
Line Removal Rate: Tomahawk lists traffic line removal at 800–1,000 linear feet per hour. Actual results depend on paint type, line thickness, surface texture, and drum wear.
-
Dust Collection: Connect the vacuum port to a compatible dust-control system or bag when dry scarifying, grinding, brushing, or removing coatings.
-
Silica Dust Safety: Concrete scarifying and wire brushing can create respirable crystalline silica dust. Follow OSHA silica rules and use approved dust collection, ventilation, and respiratory protection where required.
-
Surface Inspection: Remove loose debris, exposed fasteners, metal objects, stones, and trip hazards before scarifying.
-
Wire Brush Inspection: Inspect the wire brush drum, brush wires, shafts, belts, guards, fasteners, and vacuum connection before each use. Do not operate with damaged or loose components.
-
Thrown Debris Hazard: Wire brushes and rotating drums can throw debris. Keep bystanders clear and use proper eye, face, and body protection.
-
Fuel & Oil: Add proper fuel and oil before operation. Follow Tomahawk and Honda engine instructions for startup, shutdown, storage, and maintenance.
-
Outdoor & Ventilation Safety: Gas-powered scarifiers must only be operated in well-ventilated areas. Never run a gas engine indoors, in a garage, basement, enclosed building, occupied space, or partially enclosed area because of carbon monoxide danger.
-
Dust vs. Exhaust Note: Gas power removes cord limitations, but it does not remove dust or exhaust hazards. Manage both silica dust and engine exhaust carefully.
-
Operator PPE: Wear eye protection, face protection where needed, hearing protection, gloves, work boots, and approved respiratory protection when dust exposure requires it.
-
Hot Surface Safety: Keep hands, clothing, dust hoses, and debris away from the Honda engine, muffler, belt area, rotating drum, moving parts, and hot surfaces during and after operation.
-
Transport Safety: At 135 lb, use proper lifting technique, ramps, team lifting, or approved equipment when loading, unloading, and moving the scarifier.
-
Freight Shipping: Tomahawk notes this is an oversized item that requires shipment on a freight truck. A business delivery address can help reduce transit time.
-
California Proposition 65: This product carries a California Proposition 65 warning.
Frequently Asked Questions
What is included with the TSCAR-8H + TSCAR8WB?
This selected variant includes the 8" Concrete Scarifier, Honda GX160 engine, 3-year engine warranty, and TSCAR8WB 8" wire brush drum.
What is the wire brush drum used for?
Tomahawk lists steel wire brush applications for rust, paint, oil, grease, rubber deposits, and laitance. It is a good choice for surface cleaning and smoother finish work.
What is the Tomahawk TSCAR-8H used for?
The TSCAR-8H is used for surface preparation, concrete grinding, coating and marking removal, surface leveling, sidewalk trip hazard repair, concrete edging, surface texturing, grooving, scabbing, and cleaning or texturing concrete and asphalt.
What engine does the TSCAR-8H use?
Tomahawk lists the TSCAR-8H with an air-cooled 163cc Honda GX160 engine rated at 5.5 HP.
What is the working width?
Tomahawk lists the working width at 8 inches.
How much material can it remove per pass?
Tomahawk lists the scarifier at 1/8" depth per pass. Wire brush results will vary depending on surface material, buildup, and drum wear.
How much area can it scarify per hour?
Tomahawk lists a production rate of approximately 350–500 ft²/hr at 1/8" depth per pass.
How fast can it remove traffic lines?
Tomahawk lists traffic line removal at approximately 800–1,000 linear feet per hour.
Does the TSCAR-8H have dust collection?
Yes. Tomahawk lists a vacuum port designed to fit most bags and shop vacs to help reduce dust during operation.
How much does the TSCAR-8H weigh?
Tomahawk lists the scarifier weight at 135 lb.
Is the wire brush drum better than tungsten carbide?
It depends on the job. Wire brush drums are best for cleaning rust, paint, oil, grease, rubber deposits, and laitance with a smoother finish. Tungsten carbide cage blades are better for concrete milling, coating removal, and non-skid surface preparation.
Can it be used indoors?
No. This is a gas-powered scarifier and must only be operated in well-ventilated areas. Never run a gas engine indoors, in a garage, basement, enclosed building, occupied space, or partially enclosed area because of carbon monoxide danger.
What warranty does the TSCAR-8H have?
Tomahawk lists a 3-year engine warranty and a 2-year product warranty.
Why We Like It:
The Tomahawk Power TSCAR-8H + TSCAR8WB is a strong choice when the job calls for cleaning and surface prep rather than the most aggressive concrete cutting. The Honda GX160 5.5 HP engine, included 8" wire brush drum, 8" working width, 1/8" depth per pass, 350–500 ft²/hr production rate, 800–1,000 linear ft/hr traffic line removal capability, vacuum port, depth crank, front lifting handle, and 135 lb build make it a practical tool for contractors, municipalities, parking lot crews, flooring installers, maintenance teams, and rental fleets handling paint removal, rust removal, grease cleanup, rubber deposit removal, laitance removal, line cleanup, and concrete or asphalt surface preparation.
