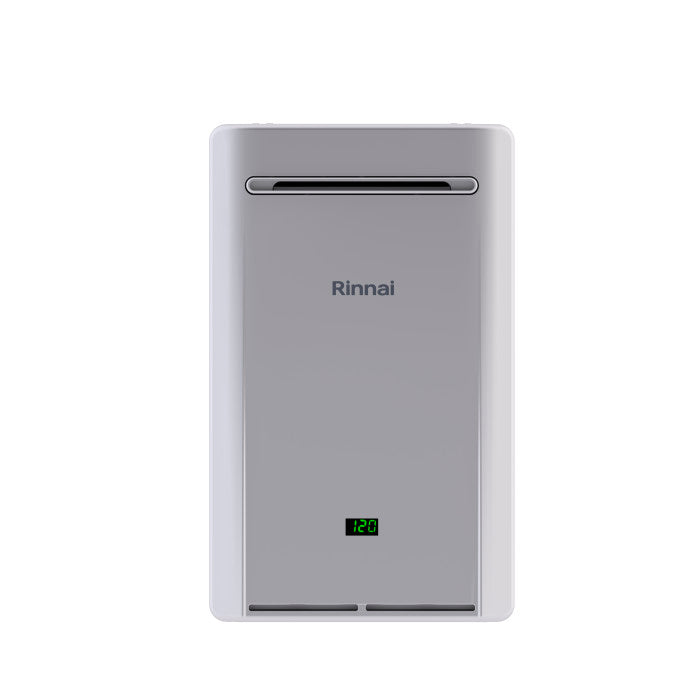

Get reliable, continuous hot water for your home right where you need it with the Rinnai REP160eP Tankless Water Heater. This compact, outdoor Liquid Propane (LP) unit is designed for simple, space-saving installation outside your home. Ideal for small to medium-sized residences or remodels, this high-efficiency heater boasts a 0.81 Uniform Energy Factor (UEF), delivering hot water on demand so you never have to worry about running the tank dry. It’s also Wi-Fi capable, allowing you to monitor and manage your hot water from anywhere via the Rinnai Central mobile app. Choose the REP160eP for a durable, reliable, and comfortable hot water solution that lasts.

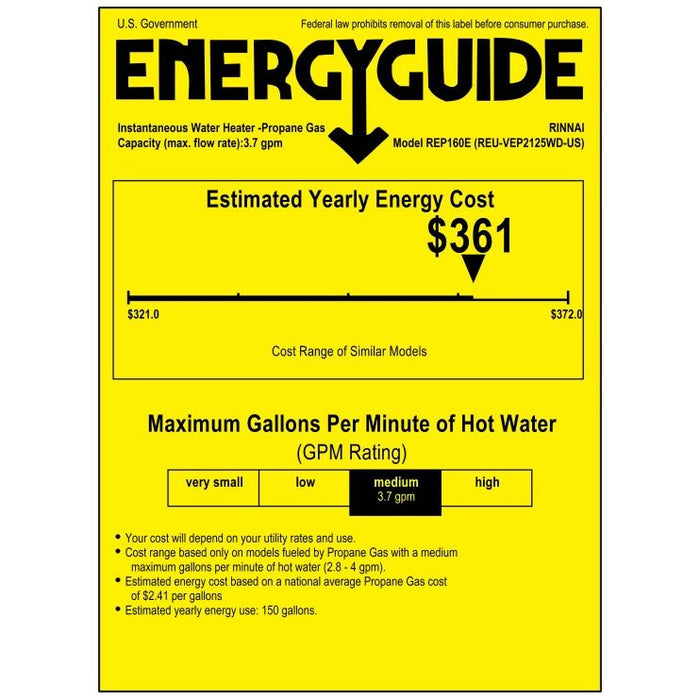

- Uniform Energy Factor: 0.81
- Warranty 15 yr Heat Exchanger / 5 yr Parts / 1 yr Labor
- 10,400 BTU (minimum) 160,000 BTU (maximum)
- Outdoor
- includes a built-in recirculation pump.
- REP models require a crossover valve accessory (P/N: 595926) when installed if there is no dedicated hot water return.
- REP Models will include isolation valves and do not need to be purchased separately
Optimized Concentric Venting for Non-Condensing Models
Rinnai Tankless Water Heaters were the first to use a unique concentric venting system – featuring an inner pipe for exhaust and an outer pipe for fresh air from outdoors. The result is a direct-vent, sealed combustion system that requires only one penetration through the wall or roof.
Specifications
| Manufacturer Trade Model Number - U.S. |
REP160eP |
| Product Depth |
10.77 in / (274 mm) |
| Product Height |
24.64 in / (626 mm) |
| Product Width |
14.05 in / (357 mm) |
| Product Weight |
46.7 lbs (21.2 kg) |
| Gas Type |
Propane |
| Installation Type |
Outdoor |
| Recirculation Capable |
Yes |
| Uniform Energy Factor |
0.81 |
| Wi-Fi Capable |
Yes |
Compact Design to Save Space
• Wi-Fi Technology for Remote Monitoring, Management and Recirculation Control.
• Improved Gas Conversion
Optional Accessories
Condensate Neutralizer, ScaleCutter, Additional Controllers, Pipe Cover, EZConnect Cables, control·r Wi-Fi Module, External Recirculation Pump, Wireless Accessories, and many more.
Controller Standard: Integrated
Controller Optional: MC-195T-US, RWM101 (control r™), MC601, MCC601 (RE199/RE180)
Warranty
• Heat Exchanger: 15 years or 12,000 operation hours, whichever occurs first
• All Other Parts and Components: 5 Years
• Reasonable Labor: 1 Year
* It is recommended that a trained and qualified professional who has attended a Rinnai training class complete the installation. The warranty may be voided due to any improper installation.
— Installation and service must be performed by a licensed professional.
