Spec Sheet Install Sheet
For removal of condensate from wall mount, ductless mini-split air conditioners up to 23500 BTU, fan coils and suspended ceiling air conditioners. The LCU-MS features quiet operation, solid state switch technology and a clear reservoir for easy visual inspection.
- Quiet operation
- Solid state switch technology
- Normally closed relay rated at 3A resistive 250V alarm
- Adhesive hook and loop tape, double sided foam tape and zip ties are supplied to secure pump and reservoir
- Decorative line set cover with 90 deg elbow
- Provides space to install pump, reservoir, wiring and hoses
- Ceiling plate included
- Right or left side installation
- Air conditioner trim and bracket
- Easy access to pump
- Cable ties to secure line set

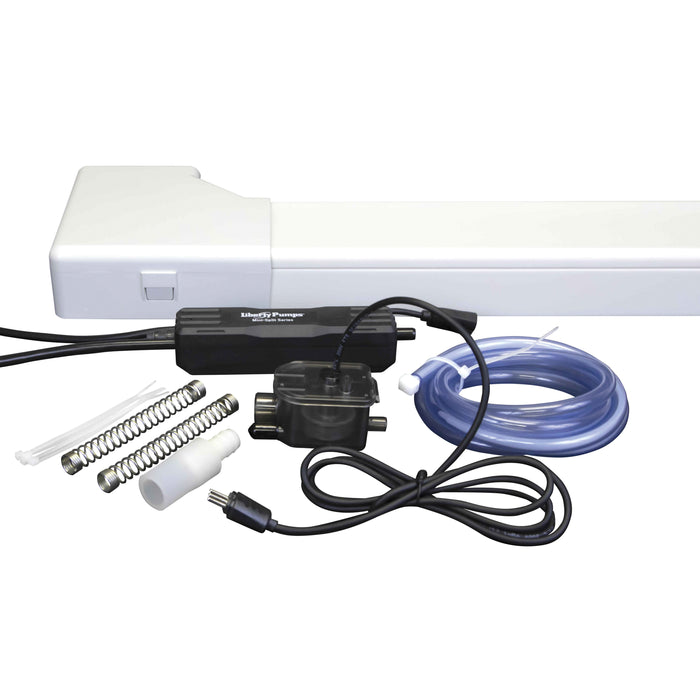

Condensate Pump with Cover Kit
Series: LCU-MS
Type: Mini-Split
Maximum Head: 6.6 ft
Construction: 2-Piece
Voltage Rating: 100 - 240V
Ambient Temperature: 32 - 122 Deg F
Length: 5.2 inch, Height: 1.3 inch
Width: 1.26 inch
Frequency Rating: 60 Hz
Amperage Rating: 0.19A
Wattage Rating: 30W
Applications: For Removal of Condensate from Wall Mount, Ductless Mini-Split Air Conditioners, Fan Coils and Suspended Ceiling Air Conditioners,
Standards/Approvals: ANSI/UL 778, CAN/CSA C222.2 No 108, cETLus Listed
Item Name | : | Condensate Pump with Cover Kit |
Type | : | Mini-Split |
Series | : | LCU-MS |
Maximum Head | : | 6.6 ft |
Construction | : | 2-Piece |
Voltage Rating | : | 100 - 240V |
Frequency Rating | : | 60 Hz |
Width | : | 1.26 inch |
Amperage Rating | : | 0.19A |
Ambient Temperature | : | 32 - 122 Deg F |
Wattage Rating | : | 30W |
Length | : | 5.2 inch |
Applications | : | For Removal of Condensate from Wall Mount, Ductless Mini-Split Air Conditioners, Fan Coils and Suspended Ceiling Air Conditioners |
Height | : | 1.3 inch |
Standards/Approvals | : | ANSI/UL 778, CAN/CSA C222.2 No 108, cETLus Listed |
