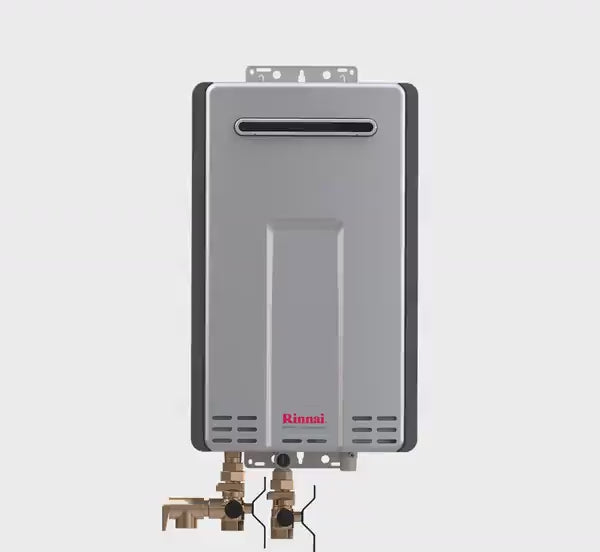

High Efficiency Plus 9.8 GPM 199,000 BTU Natural Gas Exterior Tankless Water Heater
Enjoy an endless supply of hot water with this high efficiency non-condensing natural gas tankless water heater from Rinnai. Only the size of a small suitcase, the RL94eN is compact, easy-to-install, reliable and perfect for outdoor locations. Rinnai products provide peace of mind with warranties that surpass the competition.
Features
- Energy Factor of .82 for Natural Gas and Propane
- Built-in Rinnai Circ-LogicTM recirculation program cycles an external pump at pre-set intervals and temperatures to maximize efficiency and comfort (see brochure for more details)
- Certified for Installation in Manufactured (Mobile) Homes
- Enhanced scale detection lessens possibility of serious, long-term damage to unit
- Temperature lock function prevents accidental or unauthorized changes to water temperature
- Complies with South Coast Air Quality Management District 14 ng/J or 20 ppm NOx emission levels
Specifications
| Dimensions |
Width: 14 Inches (355.6 mm) |
| Height: 23 Inches (584.2 mm) |
| Depth: 9 Inches (228.6 mm) |
| Weight |
44.3 lbs (20.1 kg) |
| Installation Type |
Outdoor |
| Minimum/Maximum BTU |
10,300 / 199,000 Natural Gas |
| Energy Factor |
0.82 for Natural Gas |
| Temperature Settings |
Residential: 98°F - 140°F (37°C - 60°C) |
| Commercial: 98°F - 185°F (37°C - 85°C)** |
| Minimum Activation Rate |
0.4 gpm (1.5 lpm) |
| Flow Rate (70° / 50° Temperature Rise) |
4.7 / 6.6 gpm (17.8 / 29.2 lpm) |
| Hot Water Flow Rate Range |
0.26 - 9.8 gpm (0.98 -37.1 lpm) |
| Controllers |
Standard: MC-91-2US |
| Optional: MC-100-1, BC-100V-1, MC-195T-US, MCC-91-2 |
| Ultra Lox NOx |
Yes |
| Warranty (Residential)* |
Limited 12-year on heat exchanger, 5-year on parts, 1-year on labor (5-year optional on labor) |
| Warranty (Commercial)* |
Limited 5-year on heat exchanger, 5-year on parts, 1-year on labor (2-year optional on labor) |
| Mobile Home Certified |
Yes |
| Valves Shipped in Box |
Yes |
| High Altitude Approved |
Up to 10,200 ft. (3,109 m) |
| Certifications |
AHRI and CSA |
| Venting Options |
N/A |
| Tankless Rack System (TRS/TRW) Compatible |
No |
| 1/2" Gas Line Compatible*** |
Yes |
* It is recommended that a trained and qualified professional who has attended a Rinnai training class complete the installation. The warranty may be voided due to any improper installation.
— Installation and service must be performed by a licensed professional.
Related Articles:
How to fix the Rinnai Error Code LC or 00 Scale Build-Up Problem?
Properly Sizing a Tankless Water Heater
Why Every Home Needs a Wireless Controller for their Tankless Water Heater
5 Powerful Benefits of Upgrading to a Rinnai Tankless Water Heater
Rinnai Tankless Water Heaters
Rinnai Error Codes and Troubleshooting Tips
How Tankless Water Heaters Work
Installation Type Outdoor
Minimum/Maximum BTU 10,300 / 199,000 Natural Gas
Energy Factor 0.82 for Natural Gas
Temperature Settings Residential: 98°F - 140°F (37°C - 60°C)
Commercial: 98°F - 185°F (37°C - 85°C)**
Minimum Activation Rate 0.4 gpm (1.5 lpm)
Flow Rate (70° / 50° Temperature Rise) 4.7 / 6.6 gpm (17.8 / 29.2 lpm)
Hot Water Flow Rate Range 0.26 - 9.8 gpm (0.98 -37.1 lpm)
Controllers Standard: MC-91-2US
Optional: MC-100-1, BC-100V-1, MC-195T-US, MCC-91-2
Ultra Lox NOx Yes
Warranty (Residential)* Limited 12-year on heat exchanger, 5-year on parts, 1-year on labor (5-year optional on labor)
Warranty (Commercial)* Limited 5-year on heat exchanger, 5-year on parts, 1-year on labor (2-year optional on labor)
Mobile Home Certified Yes
Valves Shipped in Box Yes
High Altitude Approved Up to 10,200 ft. (3,109 m)
Certifications AHRI and CSA
Venting Options N/A
Tankless Rack System (TRS/TRW) Compatible No
1/2" Gas Line Compatible*** Yes
Product Height
24.3 in / (616.2 mm)
Product Width
14.04 in / (356.6 mm)
Product Depth
9.6 in / (242.7 mm)
Product Weight
44.3 lb / (20.1 kg)
Shipping Depth (inches/mm)
30 in / (762 mm)
Shipping Height (inches/mm)
30 in / (762 mm)
Shipping Width (inches/mm)
17.5 in / (445 mm)
Shipping Weight (lbs/kg)
53.62 lb / (24.3 kg)
