Suitable for

Commercial heating
Commercial hot water recirculation
Domestic hot water recirculation
Domestic heating

Grundfos UP B circulator pumps have bronze pump housing for drinking water applications, while Grundfos UP N have stainless-steel pump housing. Both variants are recommended for underfloor heating systems, as the pumped liquid may often become aerated, causing corrosion in a cast-iron pump housing.

Choosing a stainless steel circulator ensures that you will always have the right pump - whether it is an open or closed system. Grundfos offers three stainless steel models, including two that feature our 3-speed SuperBrute technology.

Features

• Perfect for hot water recirculation applications

• Stainless steel – Protects against corrosive fluids

• Available in standard union or two-bolt flange

• 3-speed SuperBrute technology available

• Timer and line-cord options available

• Integrated, removable check valve

• Quick connect terminals – for easy installation

• Highest starting torque in its class

• Industry leading three-year warranty

Replacement for the Grundfos UP15-18SU Circulator Pump, 1/25 HP, 115V - 59896127

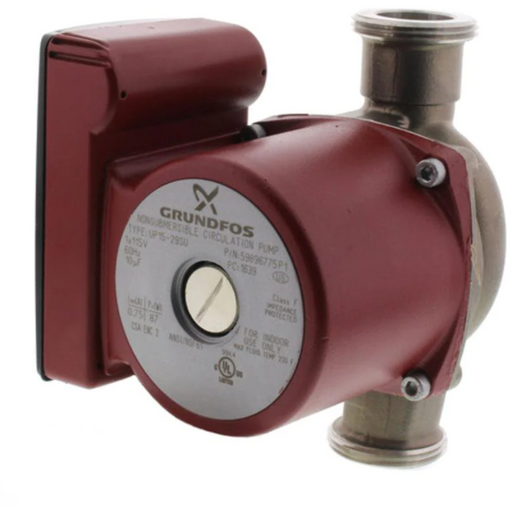

The Grundfos UP15-29SU circulator pump provides you with the perfect solution for your instant hot water system. It features a wet rotor design that brings quiet, maintenance-free performance plus durable, corrosion-free materials for long-term use. This Grundfos circulator pump is well-known for being easy to install and user-friendly.

Rubber gaskets included
115 Volts
1/12 Horsepower
Pump Connection: Union Connection: 3/4" NPT, 1/2" & 3/4" Sweat

NOTE: Union fitting sold separately


Product name	UP 15-29 SU
Product No	59896775
EAN number	5700837414463
Price

TECHNICAL
Speed no	1
Maximum flow	4.7 m³/h
Max flow	4.7 m³/h
Maximum head	3 m
Head max	3 m
Approvals on nameplate	UL, CSA

MATERIALS
Pump housing	Stainless steel
	DIN W.-Nr. 1.4301
	AISI 304
Impeller	Composite, PES

INSTALLATION
Maximum ambient temperature	40 °C
Amb. max at 80 dgr C liquid	80 °C
Maximum operating pressure	10 bar
Flange standard	USA Threaded
Type of connection	S.S. Union
Pipe connection	1 1/4" NPSM
Pressure rating	PN 10

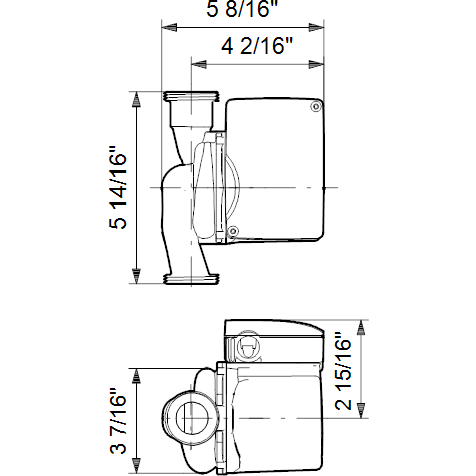

Port-to-port length	149 mm

LIQUID
Pumped liquid	Water
Liquid temperature range	2 .. 110 °C
Selected liquid temperature	60 °C
Density	983.2 kg/m³

ELECTRICAL DATA
Max. power input	87 W
Mains frequency	60 Hz
Rated voltage	1 x 115 V
Current in speed 3	0.75 A
Capacitor size - run	10 µF/180 V
Number of poles	2
Insulation class (IEC 85)	F
Motor protec	CONTACT
Thermal protec	Internal
